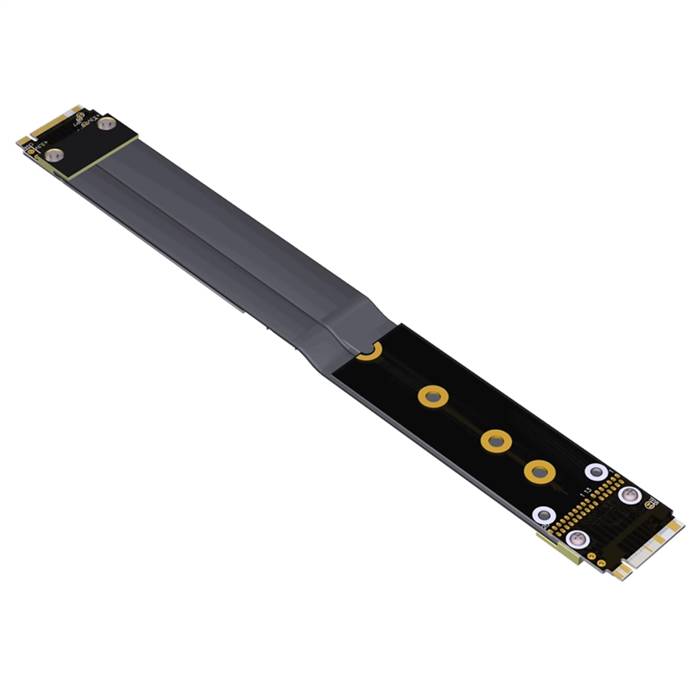

PCIe 3.0 M.2 NVMe Key-M Male to Male Tx to Tx Straight Through Jumper Cable

The PCIe 3.0 M.2 NVMe Key-M Male to Male Tx to Tx Straight Through Jumper Cable is a precision-engineered interconnect solution designed for direct host-to-host or device-to-device connections. This straight-through cable maintains the standard transmitter-to-transmitter (Tx to Tx) and receiver-to-receiver (Rx to Rx) pinout configuration, ensuring proper signal alignment between compatible M.2 interfaces. Engineered for PCIe 3.0 specifications, this cable delivers reliable signal integrity while supporting data rates up to 8.0 GT/s. It is ideal for test environments, development systems, and specialized applications requiring direct M.2 to M.2 connectivity without signal crossing.

Features

• Straight Through Pinout: Maintains standard Tx to Tx and Rx to Rx signal configuration for direct compatible connections
• PCIe 3.0 Performance: Supports data rates up to 8.0 GT/s per lane
• Reliable Signal Integrity: Optimized construction minimizes signal degradation and reflection
• Robust Connectors: High-quality M.2 Key-M male connectors ensure secure mating
• Enhanced Shielding: Provides protection against electromagnetic interference
• Flexible Application: Suitable for various direct connection scenarios between M.2 interfaces
• Durable Construction: Designed for repeated use in development and testing environments

Specifications

• Product Model: PCIe 3.0 M.2 Key-M Male to Male Straight Through Jumper Cable
• Connector Type: M.2 Key-M Male to M.2 Key-M Male
• Pinout Configuration: Straight Through (Tx to Tx, Rx to Rx)
• Interface Support: PCIe 3.0 x4 lanes, backward compatible with PCIe 2.0
• Data Transfer Rate: Up to 8.0 GT/s per lane (approximately 32 Gbps total bandwidth)
• Supported Protocols: NVMe, AHCI
• Cable Type: Shielded cable assembly
• Cable Length: 10cm, 20cm, 30cm
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

Applications

• Test and Measurement Equipment: Direct connection between M.2 interfaces in laboratory environments
• Hardware Development: Prototyping and validation of M.2 based systems and components
• System Integration: Custom configurations requiring direct M.2 to M.2 connectivity
• Quality Assurance: Signal integrity verification and performance testing
• Research and Development: Experimental setups requiring straight-through M.2 connections
• OEM Manufacturing: Integration into specialized computing and storage systems
• Debug and Validation: Troubleshooting and performance analysis in development cycles
• Benchmark Testing: Performance comparison and stress testing of M.2 devices
