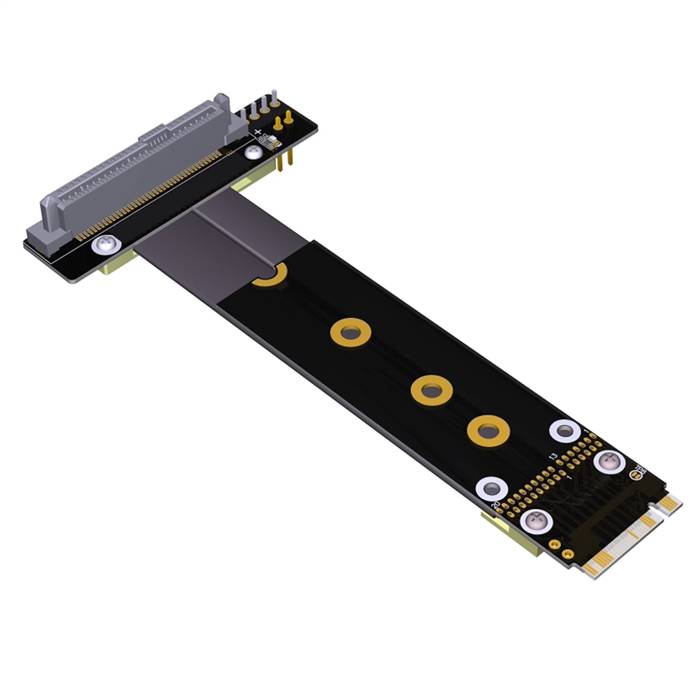

PCIe 3.0 M.2 NVMe Key-M Male to U.2 SFF-8639 Up R/A SSD Extension Cable

The PCIe 3.0 M.2 NVMe Key-M Male to U.2 SFF-8639 Up R/A SSD Extension Cable is a practical connectivity solution designed to bridge M.2 motherboard interfaces with enterprise U.2 form factor solid-state drives. This cable features an Up Right-Angle U.2 connector that facilitates improved cable routing and space management in compact system builds. It provides a reliable and cost-effective pathway for extending storage connectivity, making it ideal for integrating high-performance U.2 NVMe drives into systems with available M.2 slots. The solution is particularly valuable for server upgrades, workstation expansions, and storage array modifications where efficient space utilization is critical.

Features

• Up Right-Angle U.2 Connector: Enables optimized cable routing in space-constrained chassis
• PCIe 3.0 Performance: Supports data rates up to 8.0 GT/s per lane
• Enhanced Cable Management: Right-angle design reduces cable strain and improves airflow
• Reliable Connectivity: Ensures stable signal transmission between M.2 and U.2 interfaces
• Cost-Effective Solution: Provides U.2 drive compatibility without requiring specialized host controllers
• Universal Compatibility: Supports both enterprise and consumer NVMe protocols
• Durable Construction: Quality materials ensure long-term reliability in continuous operation

Specifications

• Product Model: PCIe 3.0 M.2 to U.2 Up R/A Extension Cable
• Host Connector: M.2 Key-M Male (PCIe 3.0)
• Device Connector: U.2 SFF-8639 Female with Up Right-Angle orientation
• Interface Support: PCIe 3.0 x4 lanes
• Data Transfer Rate: Up to 8.0 GT/s per lane (approximately 32 Gbps total bandwidth)
• Supported Protocols: NVMe 1.3, Enterprise NVMe
• Cable Type: Shielded twisted pair cable
• Cable Length: 25cm, 40cm, 60cm
• Impedance: 85? ±15% differential
• Operating Temperature: 0°C to +70°C
• Durability Rating: 3,000 mating cycles
• Minimum Bend Radius: 35mm
• Power Delivery: Supports U.2 power specification (3.3V)

Applications

• Server Upgrade Projects: Adding U.2 SSD storage to servers with available M.2 slots
• Workstation Storage Expansion: Integrating enterprise U.2 drives into creative and engineering workstations
• Compact System Builds: Ideal for small form factor servers and workstations where space optimization is crucial
• Data Center Maintenance: Cost-effective storage upgrades in existing infrastructure
• System Integration: Custom computer builds requiring interface adaptation
• Test and Development Environments: Prototyping and validation of U.2 storage configurations
• Retrofit Solutions: Modernizing older systems with newer U.2 NVMe technology
• OEM Applications: Integration into storage systems and specialized computing equipment
