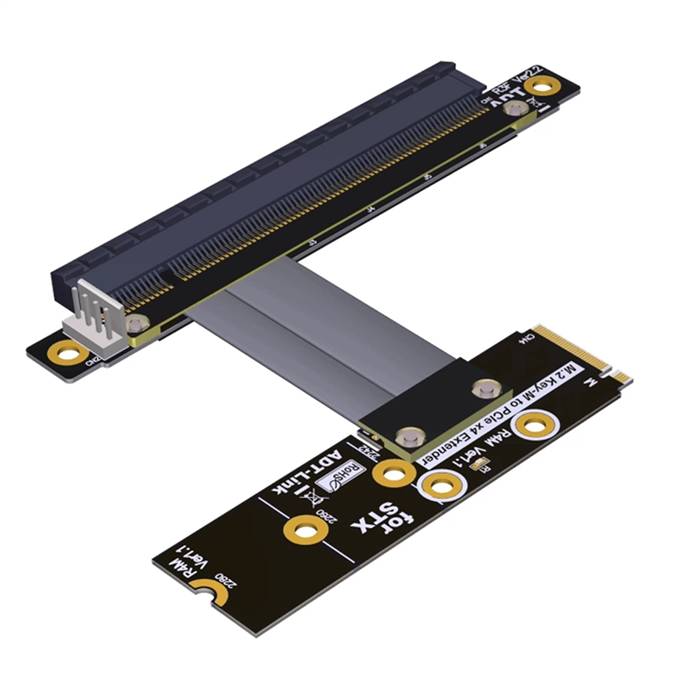

M.2 NVMe Male Left Bend to PCIe 3.0 x16 Female Extension Cable

The M.2 NVMe Male Left Bend to PCIe 3.0 x16 Female Extension Cable is a specialized interface conversion solution engineered to connect M.2 NVMe slots to standard PCIe 3.0 x16 interfaces with a left-angled cable orientation . This cable enables the use of M.2 NVMe storage and other M.2 PCIe devices with motherboard PCIe x16 slots, providing flexible expansion capabilities for systems where direct M.2 slot availability is limited or where specific left-bend cable routing is required for space-optimized configurations . Supporting PCIe 3.0 specifications, it delivers a data transfer rate of up to 32 Gbps while maintaining backward compatibility with PCIe 2.0 and 1.1 devices . The left-bend design of the cable assembly directs the extension to the left side relative to the motherboard plane, optimizing space utilization and improving clearance in asymmetric chassis layouts and custom mounting scenarios . Constructed with impedance-controlled wiring and multi-layer shielding, this cable ensures reliable signal integrity and minimizes electromagnetic interference at high frequencies . Its flexible cable design allows for easy routing in space-constrained environments, making it ideal for custom builds, embedded systems, and expansion projects where traditional adapter cards cannot be used and left-bend cable orientation is essential for optimal chassis layout .

Features

• Full x16 lane support: Maintains PCIe 3.0 x16 lane connectivity supporting data transfer rates up to 32 Gbps for high-performance devices
• Left-bend cable orientation: Left-angled cable design facilitates routing to the left side of the motherboard for optimized clearance in asymmetric chassis configurations
• M key interface compatibility: Specifically designed for M.2 NVMe M key devices, ensuring optimal connectivity and performance
• Enhanced signal integrity: Utilizes impedance-controlled wiring and multi-layer EMI shielding to minimize signal degradation and electromagnetic interference
• Flexible routing design: High-quality cable construction allows for easy installation in confined spaces and complex chassis layouts
• Robust construction: Reinforced connectors with gold-plated contacts ensure reliable connectivity and long-term durability through multiple mating cycles
• Backward compatibility: Fully supports previous PCIe generations including 2.0 and 1.1 devices, providing broad system compatibility
• Plug-and-play installation: Requires no additional drivers or software configuration for immediate deployment and operation

Specifications

• Product Model: M.2 NVMe Male Left Bend to PCIe 3.0 x16 Female Extension Cable
• Host Connector: M.2 NVMe, Male (M Key)
• Device Connector: PCIe 3.0 x16, Female, Standard Orientation
• Cable Type: Flexible Cable Assembly with Left Bend
• Pinout Configuration: PCIe-compliant pin mapping
• Data Rate Support: Up to 32 Gbps (PCIe 3.0)
• Supported Protocols: PCI Express 3.0/2.0/1.1
• Impedance: 85 ohms differential (typical for PCIe applications)
• Cable Length: 200mm, 300mm, 400mm standard options
• Wire Gauge: 28-30 AWG
• Shielding: Multi-layer foil and braid EMI protection
• Operating Temperature: -20°C to +70°C
• Durability: Minimum 300 insertion cycles
• Safety Standards: RoHS compliant

Applications

• System expansion: Adds PCIe x16 capability to systems with available M.2 NVMe slots but limited PCIe slot availability, particularly where left-bend cable routing is beneficial for asymmetric internal layouts
• Embedded systems: Enables connection of specialized interface cards to industrial PCs and control systems with M.2 interfaces in space-constrained environments requiring left-side cable routing
• Prototyping and development: Facilitates testing and validation of PCIe x16 devices using M.2 NVMe slots in laboratory environments requiring left-bend cable routing for specific testing configurations
• Storage solutions: Allows implementation of additional storage controllers and expansion cards through M.2 to PCIe conversion in compact systems where left-bend orientation improves overall layout
• Custom computing: Provides flexible expansion capabilities for custom computing solutions and specialized hardware configurations where left-bend cable orientation is essential for optimal chassis design and cable management
• Test and measurement: Useful for hardware validation setups requiring interface conversion between M.2 NVMe and standard PCIe x16 with specific left-side orientation needs
• High-performance workstations: Ideal for workstations and servers where maximum PCIe 3.0 x16 bandwidth is required for data-intensive applications
