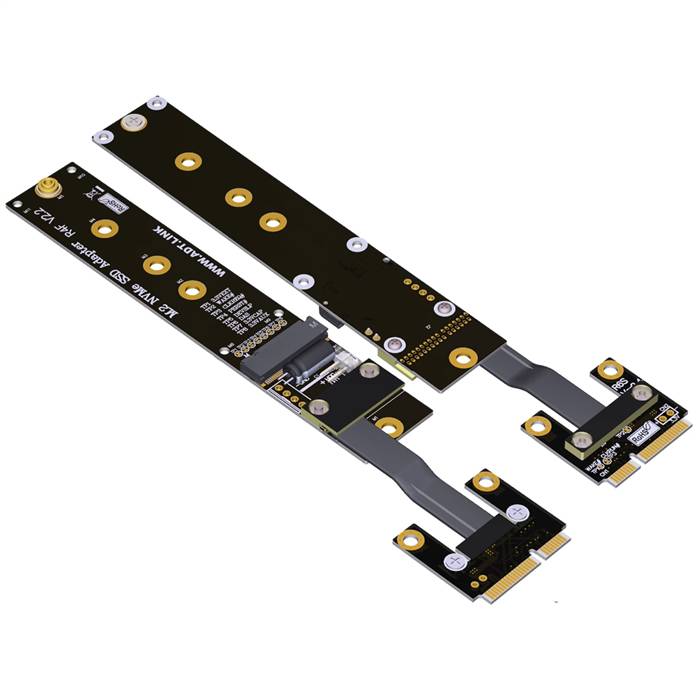

PCIe 3.0 Mini PCIe Male to M.2 NVMe Key M SSD Extension Cable

The PCIe 3.0 Mini PCIe Male to M.2 NVMe Key M SSD Extension Cable is a specialized connectivity solution designed to bridge legacy Mini PCIe interfaces with modern M.2 NVMe storage devices. This cable converts a Mini PCIe male connector to an M.2 Key M interface, enabling the use of high-performance NVMe solid-state drives in systems originally designed for Mini PCIe expansion. Engineered to maintain PCIe 3.0 signal integrity, this adapter cable provides a significant storage performance upgrade path for older systems while delivering reliable performance for modern NVMe storage technology through careful signal management and compatibility assurance.

Features

• Interface Conversion Technology: Bridges Mini PCIe male interface to M.2 Key M female connector with PCIe 3.0 signal compatibility for NVMe SSDs
• Storage Performance Enhancement: Enables integration of modern M.2 NVMe SSDs into legacy systems with Mini PCIe expansion capabilities
• PCIe 3.0 Protocol Support: Maintains native PCIe 3.0 signaling supporting data rates up to 8 GT/s per lane for improved storage performance
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission for NVMe storage operations
• NVMe Compatibility: Supports NVMe specification for solid-state storage performance improvement over traditional storage interfaces
• Secure Connection System: Reliable mating interfaces ensure stable operation for storage applications in various environments
• Legacy System Modernization: Provides storage performance upgrade path for systems with Mini PCIe expansion interfaces

Specifications

• Host Connector: Mini PCIe 52-pin Male
• Device Connector: M.2 Key M Female
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification, NVMe Specification
• Key Support: Key M (M key compatible)
• Data Rate: 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 32 Gbps (x4 lanes for NVMe SSDs)
• Supported Protocols: NVMe 1.3 and later, PCIe 3.0 x4
• Supported SSD Lengths: 2230, 2242, 2260, 2280
• Cable Type: Shielded twisted pair with EMI protection
• Cable Length: 100mm, 150mm, 200mm standard options
• Operating Temperature: -20°C to +80°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 5,000 mating cycles minimum
• Contact Material: Gold-plated phosphor bronze

Applications

• Legacy System Storage Upgrades: Ideal for updating older industrial PCs, embedded systems, and legacy equipment with NVMe storage technology
• Embedded Computing Platforms: Perfect for embedded systems and single-board computers requiring improved storage performance with Mini PCIe interface compatibility
• Industrial Control Systems: Supports storage requirements for industrial automation, data acquisition equipment, and control systems
• Compact Computing Devices: Suitable for small form factor systems and space-constrained devices needing enhanced storage capabilities
• Digital Signage and Media Players: Enables faster content loading and processing for commercial display systems and media applications
• Prototyping and Development: Essential for engineering teams developing storage solutions requiring interface conversion between Mini PCIe and M.2 NVMe standards
• Test and Validation: Useful in laboratory environments for testing M.2 NVMe SSDs on Mini PCIe-based test platforms
• Custom Integration Solutions: Provides flexible options for system integrators requiring improved storage performance in legacy interface environments
