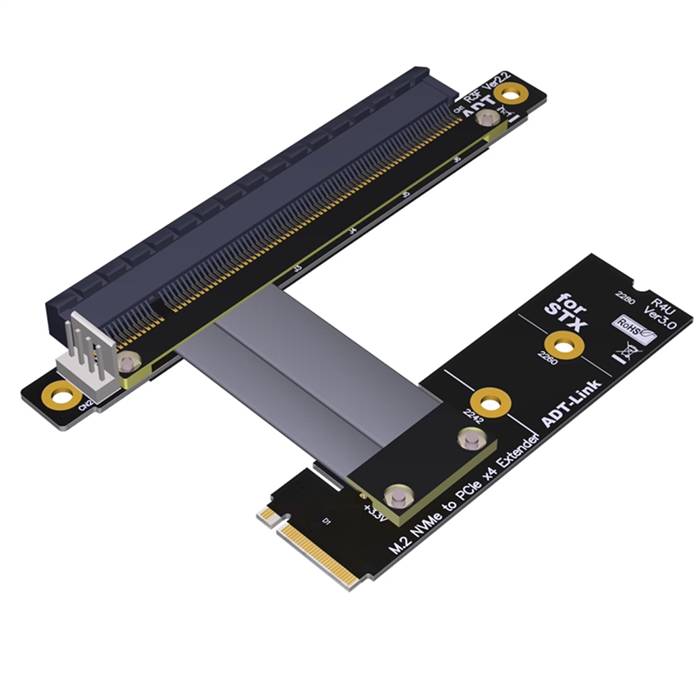

Reverse M.2 NVMe Male Right Bend to PCIe 3.0 x16 Female Extension Cable

The Reverse M.2 NVMe Male Right Bend to PCIe 3.0 x16 Female Extension Cable is a specialized adapter solution designed for complex system integration requiring unique directional routing. This cable features a reverse-oriented M.2 NVMe male connector with a right-angle bend that connects to a standard PCIe 3.0 x16 female slot. This configuration enables flexible GPU and expansion card installation in systems with specific spatial constraints where traditional riser configurations cannot be implemented. The combination of reverse orientation and right-bend design addresses challenging clearance issues in custom builds, specialized servers, and compact systems requiring precise component placement and unconventional connectivity solutions.

Features

• Reverse M.2 Orientation: Specialized reverse male connector for unique motherboard layouts
• Right-Bend M.2 Connector: 90-degree right-oriented bend for specific spatial requirements
• Standard PCIe Interface: Compatible with all PCIe 3.0 x16 graphics cards and expansion devices
• PCIe 3.0 Performance: Supports full x16 lane bandwidth at 8.0 GT/s data rates
• Space-Efficient Design: Solves complex clearance issues in compact system configurations
• Flexible Installation: Enables GPU installation in systems with specific spatial constraints
• Enhanced Mechanical Compatibility: Addresses challenging spatial requirements in custom builds

Specifications

• Product Model: Reverse M.2 NVMe Male Right Bend to PCIe 3.0 x16 Female Extension Cable
• Host Connector: M.2 Key-M Male Reverse Orientation with Right Bend
• Device Connector: PCIe 3.0 x16 Female
• Interface Support: PCIe 3.0 x16
• Data Transfer Rate: Up to 8.0 GT/s per lane (approximately 128 Gbps total bandwidth)
• Supported Protocols: PCI Express 3.0, NVMe
• Bend Configuration: Right-angle bend with reverse orientation
• Cable Type: Shielded flexible cable
• Cable Length: 22cm, 32cm, 42cm
• Operating Temperature: 0°C to +70°C
• Durability Rating: 3,000 mating cycles
• Minimum Bend Radius: 35mm

Applications

• Complex Custom Builds: Computer modifications requiring reverse orientation with right-bend connectivity
• Specialized Server Configurations: Unique server setups with specific spatial limitations
• Compact Workstation Solutions: Professional systems with extreme space constraints requiring innovative connectivity
• Prototype Development: Experimental computing configurations with complex spatial challenges
• OEM Manufacturing: Custom solutions for specific client integration requirements
• Test and Validation: Specialized testing scenarios requiring unique connector orientation
• Mining Configurations: Multi-GPU setups with specific spatial requirements
• Industrial Computing: Embedded systems with fixed component placement and unique routing requirements
