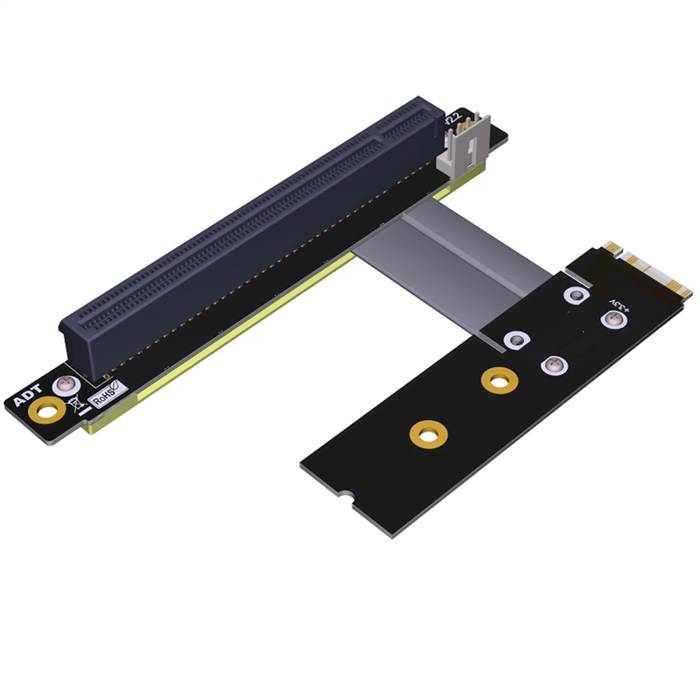

Reverse M.2 NVMe Male Right Bend to PCIe 3.0 x16 Female Up R/A Extension Cable

The Reverse M.2 NVMe Male Right Bend to PCIe 3.0 x16 Female Up R/A Extension Cable is a specialized adapter solution designed for complex system integration requiring unique directional routing with upward-facing GPU orientation. This cable features a reverse-oriented M.2 NVMe male connector with a right-angle bend that connects to a PCIe 3.0 x16 female up right-angle slot. This sophisticated configuration enables advanced GPU mounting in systems with specific spatial constraints where traditional riser configurations cannot be implemented. The combination of reverse orientation, right-bend design, and upward-facing PCIe slot addresses the most challenging clearance issues in custom builds, specialized servers, and compact systems requiring precise component placement and optimal thermal management.

Features

• Reverse M.2 Orientation: Specialized reverse male connector for unique motherboard layouts
• Right-Bend M.2 Connector: 90-degree right-oriented bend for specific spatial requirements
• Up Right-Angle PCIe Slot: 90-degree upward-facing PCIe x16 slot for optimal GPU orientation
• PCIe 3.0 Performance: Supports full x16 lane bandwidth at 8.0 GT/s data rates
• Space-Efficient Design: Solves complex clearance issues in compact system configurations
• Enhanced Thermal Management: Upward orientation facilitates improved airflow around graphics cards
• Advanced Mechanical Solution: Addresses challenging spatial constraints in custom builds

Specifications

• Product Model: Reverse M.2 NVMe Male Right Bend to PCIe 3.0 x16 Female Up R/A Extension Cable
• Host Connector: M.2 Key-M Male Reverse Orientation with Right Bend
• Device Connector: PCIe 3.0 x16 Female Up Right-Angle
• Interface Support: PCIe 3.0 x16
• Data Transfer Rate: Up to 8.0 GT/s per lane (approximately 128 Gbps total bandwidth)
• Supported Protocols: PCI Express 3.0, NVMe
• Bend Configuration: Right-angle bend with reverse orientation
• Cable Type: Shielded flexible cable
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Durability Rating: 3,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• Advanced Custom Builds: Computer modifications requiring reverse orientation with right-bend connectivity and upward GPU mounting
• Specialized Server Infrastructure: Unique server configurations with specific spatial and thermal requirements
• Compact Workstation Solutions: Professional systems with extreme space constraints requiring innovative connectivity solutions
• Prototype Development: Experimental computing configurations with complex spatial challenges
• OEM Manufacturing: Custom solutions for specific client integration requirements
• Test and Validation: Specialized testing scenarios requiring unique connector orientation with upward-facing configuration
• Mining Configurations: Multi-GPU setups with specific spatial and thermal management requirements
• Industrial Computing: Embedded systems with fixed component placement and unique routing requirements
