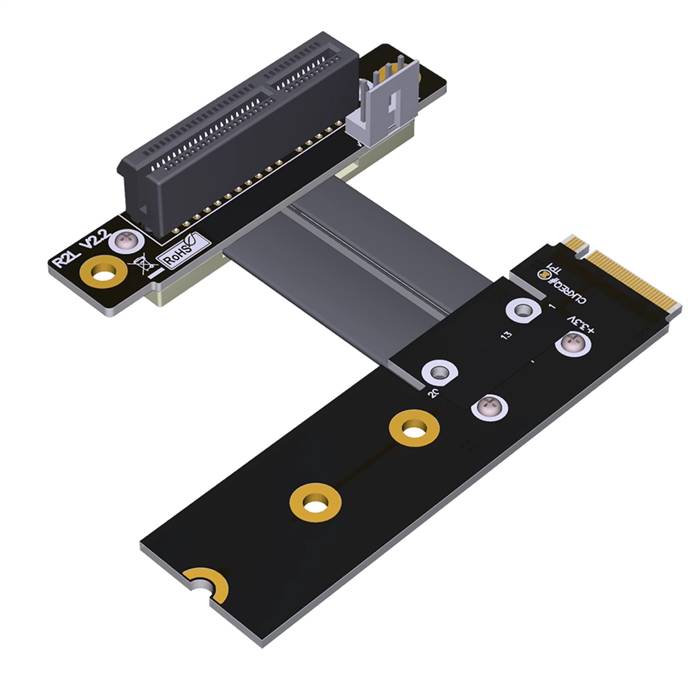

Reverse M.2 NVMe Male Right Bend to PCIe 3.0 x4 Female Up R/A Extension Cable

The Reverse M.2 NVMe Male Right Bend to PCIe 3.0 x4 Female Up R/A Extension Cable is a specialized interface conversion solution engineered to connect M.2 NVMe slots to standard PCIe 3.0 x4 interfaces with a reverse orientation, right-angled cable design, and upward right-angle connector. This cable enables the use of M.2 NVMe storage and other M.2 PCIe devices with motherboard PCIe x4 slots, providing flexible expansion capabilities for systems where direct M.2 slot availability is limited or where specific reverse right-bend upward cable routing is required for space-optimized configurations. Supporting PCIe 3.0 specifications, it delivers a data transfer rate of up to 32Gbps while maintaining backward compatibility with PCIe 2.0 and 1.1 devices . The unique combination of reverse female connector orientation, right-bend cable design, and upward right-angle (Up R/A) female connector positions the connected card in an opposite direction to standard configurations while directing the cable both rightward and upward from the motherboard plane, optimizing space utilization and improving clearance in complex chassis layouts and custom mounting scenarios. Constructed with impedance-controlled wiring and multi-layer shielding, this cable ensures reliable signal integrity and minimizes electromagnetic interference at high frequencies . Its flexible flat cable design allows for easy routing in space-constrained environments, making it ideal for custom builds, embedded systems, and expansion projects where traditional adapter cards cannot be used and combined reverse right-bend upward cable orientation is essential for optimal chassis layout and thermal management.

Features

• Full x4 lane support: Maintains PCIe 3.0 x4 lane connectivity supporting data transfer rates up to 32Gbps for NVMe SSDs and other compatible devices
• Reverse right-bend upward right-angle design: Combines reverse card orientation with right-angled cable routing and upward right-angle connector for optimized clearance in complex chassis configurations and specialized mounting scenarios
• Interface conversion: Adapts M.2 NVMe male connector to standard PCIe x4 female slot for versatile expansion capabilities in systems with limited PCIe slot availability
• Enhanced signal integrity: Utilizes impedance-controlled wiring and multi-layer EMI shielding to minimize signal degradation and electromagnetic interference
• Flexible cable design: Thin and flexible flat cable construction allows for easy routing in confined spaces and complex chassis layouts
• Robust construction: Reinforced connectors with gold-plated contacts ensure reliable connectivity and long-term durability through multiple mating cycles
• Backward compatibility: Fully supports previous PCIe generations including 2.0 and 1.1 devices, providing broad system compatibility
• Plug-and-play installation: Requires no additional drivers or software configuration for immediate deployment and operation

Specifications

• Product Model: Reverse M.2 NVMe Male Right Bend to PCIe 3.0 x4 Female Up R/A Extension Cable
• Host Connector: M.2 NVMe, Male (Key M)
• Device Connector: PCIe 3.0 x4, Female, Reverse Up Right-Angle
• Cable Type: Flexible Flat Cable Assembly with Right Bend
• Pinout Configuration: PCIe-compliant pin mapping
• Data Rate Support: Up to 32Gbps (PCIe 3.0)
• Supported Protocols: PCI Express 3.0/2.0/1.1
• Impedance: 85 ohms differential (typical for PCIe applications)
• Cable Length: 150mm, 200mm, 300mm standard options
• Wire Gauge: 28-30 AWG
• Shielding: Multi-layer foil and braid EMI protection
• Operating Temperature: -20°C to +70°C
• Durability: Minimum 300 insertion cycles
• Safety Standards: RoHS compliant

Applications

• System expansion: Adds PCIe x4 capability to systems with available M.2 NVMe slots but limited PCIe slot availability, particularly where combined reverse right-bend upward cable routing is beneficial for complex internal layouts
• Embedded systems: Enables connection of specialized interface cards to industrial PCs and control systems with M.2 interfaces in space-constrained environments requiring reverse right-side upward cable routing
• Prototyping and development: Facilitates testing and validation of PCIe x4 devices using M.2 NVMe slots in laboratory environments requiring reverse right-bend upward cable routing for specific testing configurations
• Storage solutions: Allows implementation of additional storage controllers and expansion cards through M.2 to PCIe conversion in compact systems where reverse right-bend upward orientation improves overall layout
• Custom computing: Provides flexible expansion capabilities for custom computing solutions and specialized hardware configurations where combined reverse right-bend upward cable orientation is essential for optimal chassis design and cable management
• Test and measurement: Useful for hardware validation setups requiring interface conversion between M.2 NVMe and standard PCIe x4 with specific reverse right-side upward orientation needs
• Legacy system upgrades: Enables modern expansion card functionality on systems primarily equipped with M.2 interfaces rather than traditional PCIe slots
