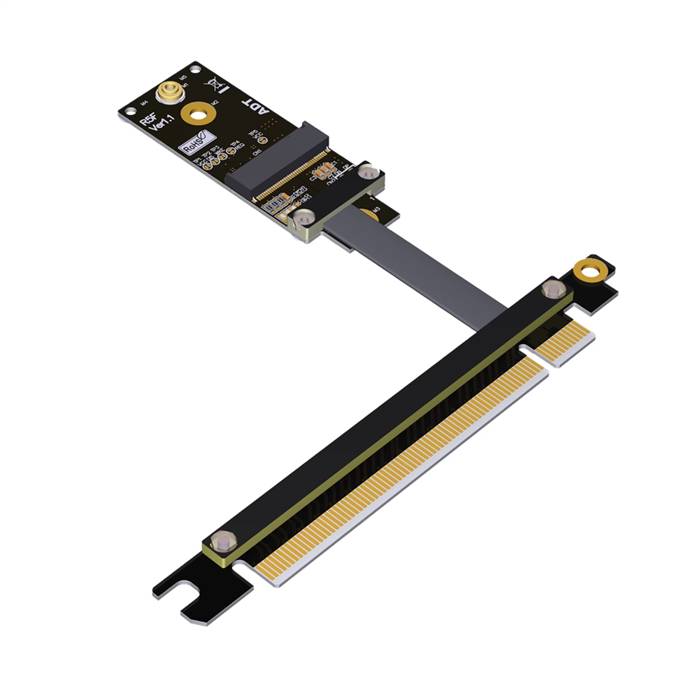

PCIe 3.0 x16 Male to M.2 WiFi Key A.E. Extension Cable

The PCIe 3.0 x16 Male to M.2 WiFi Key A.E. Extension Cable is a specialized connectivity solution designed to extend a standard PCIe 3.0 x16 host slot to an M.2 Key A+E interface, primarily for WiFi, Bluetooth, and other wireless communication modules. This cable enables flexible integration of M.2 A+E key expansion cards in situations where direct motherboard mounting is impractical due to space constraints or thermal management needs. Engineered to maintain signal integrity at PCIe 3.0 speeds, it is ideal for compact embedded systems, industrial computers, custom prototyping applications, and upgrading existing systems with modern wireless capabilities.

Features

• Standard to Compact Interface Conversion: Bridges full-size PCIe x16 slots with the space-efficient M.2 Key A+E interface, commonly used for WiFi and Bluetooth modules
• PCIe 3.0 Compliance: Supports PCIe 3.0 specifications. The M.2 A+E key interface typically provides PCIe x1 lanes, along with support for USB 2.0 and other interfaces like I²C, SDIO, UART, and PCM for comprehensive wireless module connectivity
• Space-Optimized Design: Facilitates installation in compact systems where traditional expansion cards cannot fit and allows for better thermal management by relocating modules
• Enhanced Signal Integrity: Precision engineering with controlled impedance matching and quality shielding minimizes signal degradation and protects against electromagnetic interference
• Secure Connection: Reliable mating interfaces ensure stable operation in various orientations
• Broad Compatibility: Supports M.2 A+E key modules such as Wi-Fi 6/7 cards and other wireless network adapters

Specifications

• Host Connector: PCI Express 3.0 x16 Male
• Device Connector: M.2 Key A+E Female
• Supported Standards: PCI-SIG PCIe 3.0 Base Specification; M.2 (NGFF) standard
• Keying: A+E Key (compatible with devices using the A+E or A-E key interface)
• Supported Protocols: PCIe x1, USB 2.0, and may support additional interfaces like I²C, SDIO, UART, PCM depending on the module
• Typical Data Rate: Up to 8.0 GT/s per lane (PCIe 3.0)
• Cable Type: Shielded cable construction
• Common Cable Lengths: 0.3m, 0.5m, and 1.0m are typical options
• Operating Temperature: Commercial grade (0°C to +70°C) or industrial grade (-40°C to +85°C) depending on the product variant

Applications

• Embedded Systems & Industrial PCs: Ideal for compact computing devices, industrial control systems, and platforms requiring flexible wireless expansion
• Mini-ITX and Small Form Factor Builds: Enables addition of WiFi/Bluetooth functionality in space-constrained HTPCs, gaming consoles, and custom PCs where internal mounting space is limited
• Prototyping and Development: Facilitates testing and validation of M.2 A+E key modules in laboratory and development environments
• Digital Signage and Kiosks: Provides reliable wireless connectivity expansion in commercial installations
• System Upgrades: Allows integration of modern M.2 wireless cards into older systems or motherboards with available PCIe slots but lacking an onboard M.2 socket
• Custom Workstation Integration: Suitable for professional workstations requiring specific wireless module placement for optimal performance
• Test and Measurement: Useful for validation and testing of M.2 wireless modules in manufacturing and quality control environments
