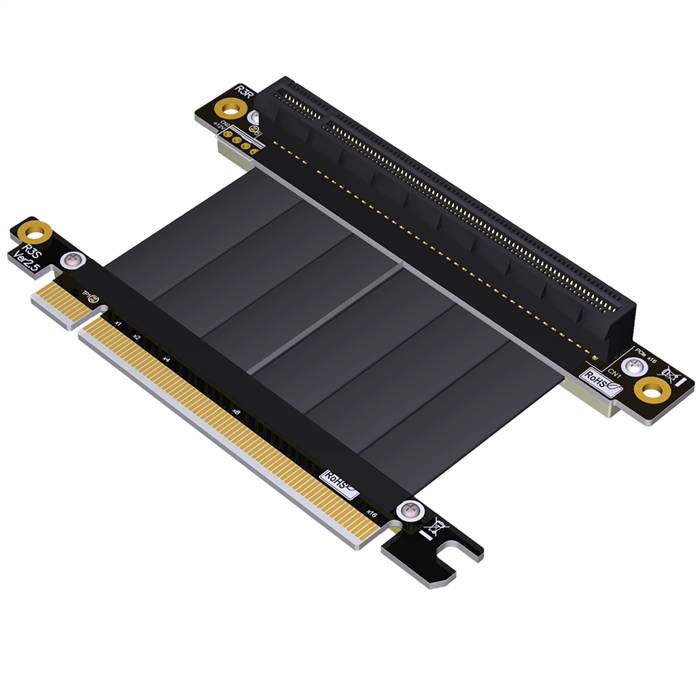

PCIe 3.0 x16 Male to x16 Female Down R/A Extension Cable

The PCIe 3.0 x16 Male to x16 Female Down R/A Extension Cable is a passive interconnect solution designed for full-bandwidth PCIe 3.0 extension with optimized spatial efficiency in low-clearance environments. This cable maintains all 16 PCIe lanes, supporting a data transfer rate of 8.0 GT/s per lane and delivering a total bandwidth of approximately 15.75 GB/s without lane reduction. It features backward compatibility with PCIe 2.0/1.0 devices. The design incorporates a Down Right-Angle (Down R/A) female connector that directs the cable downward relative to the motherboard plane, minimizing vertical profile and mechanical obstruction in space-constrained systems such as 1U/2U servers or compact workstations. Constructed with impedance-controlled wiring and multi-layer EMI shielding, this cable ensures reliable signal integrity while addressing challenging routing requirements in high-density configurations.

Features

• Full x16 Lane Support: Preserves all 16 PCIe lanes, ensuring maximum bandwidth utilization of approximately 15.75 GB/s for high-performance devices.
• Down Right-Angle Connector: The Down R/A female connector facilitates downward cable routing, reducing vertical clearance requirements and preventing interference with adjacent components.
• PCIe 3.0 Compliance: Supports PCIe 3.0 specifications with 8.0 GT/s per lane data transfer, utilizing 128b/130b encoding for efficient transmission.
• Enhanced Signal Integrity: Utilizes multi-layer shielding to minimize insertion loss, crosstalk, and electromagnetic interference.
• Passive Design: Requires no external power or active components, relying on high-quality copper conductors and precise impedance control.
• Durable Construction: Incorporates reinforced connector housings and strain relief mechanisms to withstand mechanical stress in demanding environments.

Specifications

• Product Model: PCIe 3.0 x16 Male to x16 Female Down R/A Extension Cable
• Connector A: PCIe 3.0 x16, Male, Edge Connector
• Connector B: PCIe 3.0 x16, Female, Down Right-Angle (Down R/A)
• Cable Type: Passive Copper Extension Assembly
• Pinout Configuration: PCIe-compliant 1:1 lane mapping
• Data Rate Support: Up to 8.0 GT/s (PCIe 3.0)
• Supported Protocols: PCI Express 3.0/2.0/1.0
• Impedance: 85 ohms differential (target, aligned with PCIe 3.0 standards)
• Cable Length: Standard options: 0.25m, 0.5m (custom lengths up to 1.0m available; longer lengths require validation)
• Wire Gauge: 28-34 AWG (typical for PCIe 3.0 applications)
• Shielding: Foil and braid for comprehensive EMI protection
• Operating Temperature: -20°C to +80°C (commercial grade)
• Durability: Minimum 500 insertion cycles
• Safety Standards: RoHS compliant

Applications

• High-Density Servers: Deploying in rack-mounted systems where the Down R/A design optimizes cable routing in cramped spaces for full-bandwidth applications.
• Test and Development Benches: Facilitating hardware validation and signal integrity analysis of x16 devices without motherboard slot constraints.
• Compact Workstations: Enabling flexible component placement in small-form-factor builds where vertical clearance is limited.
• Industrial Computing: Supporting reliable PCIe expansion in equipment where both performance and spatial efficiency are critical.
