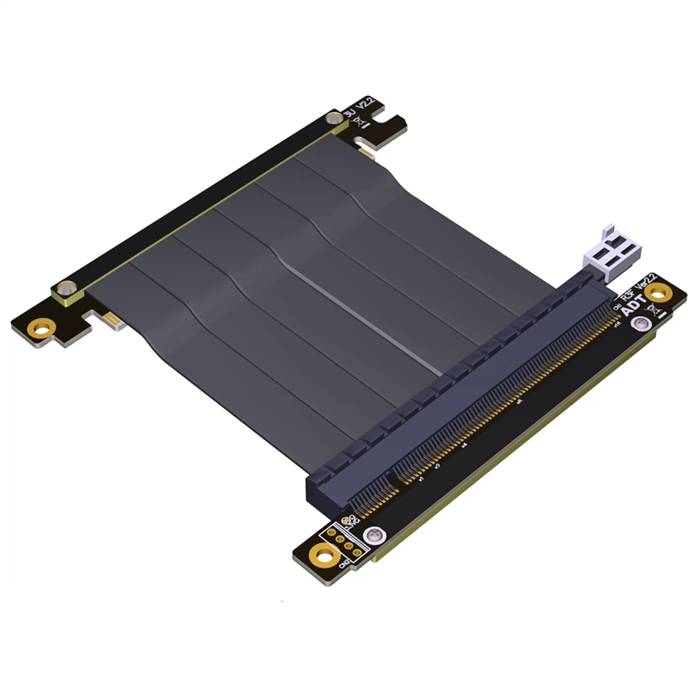

PCIe 3.0 x16 Male to x16 Female Extension Cable, Both Side Turn 180 Degree

The PCIe 3.0 x16 Male to x16 Female Extension Cable with Both Side Turn 180 Degree is a specialized interconnect solution designed for computing systems requiring complete orientation flexibility at both connection points. This cable features dual 180-degree rotation design on both male and female connectors, enabling versatile GPU mounting configurations while maintaining reliable PCIe 3.0 performance. Engineered for custom PC builds, modified cases, and spatially constrained environments, this extension solution provides comprehensive directional control for challenging installations where maximum flexibility is required at both the motherboard and graphics card interfaces.

Features

• Dual 180-Degree Rotation: Both connectors feature complete 180-degree turn capability for maximum installation versatility in complex spatial scenarios
• Full PCIe 3.0 Compatibility: Supports data rates up to 8 GT/s per lane, delivering total bandwidth of 128 Gbps for graphics cards and expansion devices
• Reliable Signal Integrity: Controlled impedance design ensures stable data transmission through both 180-degree cable paths
• Maximum Connection Flexibility: Dual 180-degree connectors provide complete orientation freedom for both motherboard and device connections
• Robust Construction: Quality materials with adequate strain relief at both connector points ensure dependable performance
• Effective EMI Protection: Shielding throughout both cable paths maintains signal quality in various operating environments
• Universal Compatibility: Supports PCIe 3.0 devices while maintaining backward compatibility with previous PCIe generations

Specifications

• Host Connector: PCI Express 3.0 x16 Male with 180-degree turn
• Target Connector: PCIe 3.0 x16 Female with 180-degree turn
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 128 Gbps (x16 lanes)
• Cable Configuration: Dual 180-degree turn design
• Cable Type: Shielded twisted pair construction
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated contacts

Applications

• Custom Computer Modding: Essential for modified computer cases requiring complete orientation control at both connection points
• Complex System Layouts: Ideal for workstations and gaming systems where spatial constraints demand maximum flexibility at both ends
• Space-Constrained Installations: Suitable for environments with spatial restrictions requiring complete directional control for proper component mounting
• Enthusiast PC Builds: Perfect for custom gaming PCs and enthusiast systems where both performance and installation flexibility are important
• Modified Case Projects: Supports custom case modifications requiring unconventional component orientation and connection angles
• Prototype Development: Useful for testing and development environments requiring flexible component orientation for validation purposes
• Showcase Systems: Enables creative layout possibilities in display computers where component orientation enhances visual presentation
• Compact Build Solutions: Appropriate for small form factor builds and compact systems where space optimization requires flexible connection options
