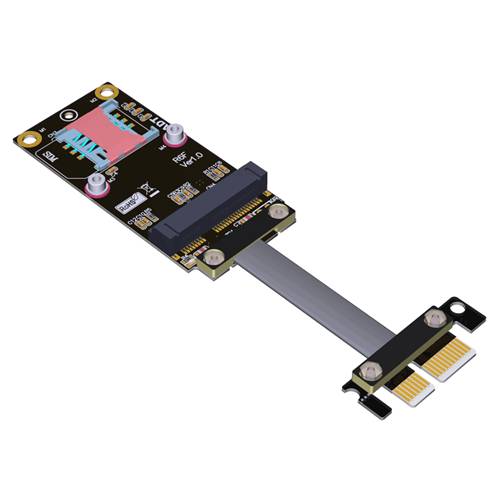

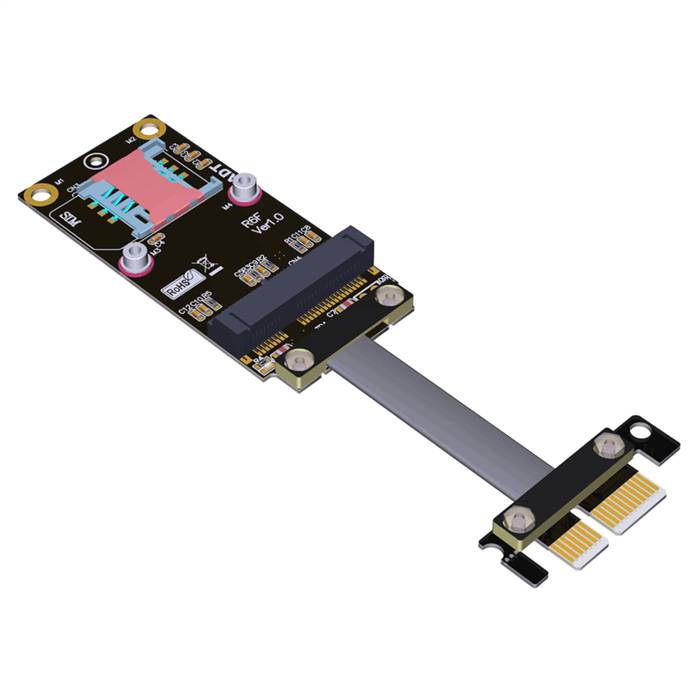

PCIe 3.0 x1 Male to Mini PCIe Female Extension Cable

The PCIe 3.0 x1 Male to Mini PCIe Female Extension Cable is a high-performance interface conversion solution designed to connect PCIe 3.0 x1 host interfaces to Mini PCIe devices. This cable features a PCIe 3.0 x1 male connector on one end and a Mini PCIe female connector on the other end, enabling seamless connectivity between PCIe-based systems and Mini PCIe-based peripherals such as Wi-Fi cards, SSDs, and other expansion modules. Engineered for reliability and signal integrity, this cable supports high-speed data transfer while providing integrated power delivery to the Mini PCIe device, making it ideal for industrial computing, embedded systems, and DIY projects where Mini PCIe compatibility is required.

Features

• Interface Conversion: Converts PCIe 3.0 x1 male interface to Mini PCIe female interface.
• High-Speed Performance: Supports PCIe 3.0 specifications with data transfer rates up to 8 GT/s (1 GB/s per lane for x1).
• Integrated Power Delivery: Provides power to Mini PCIe devices through the connector (3.3V support).
• Enhanced Compatibility: Compatible with Mini PCIe devices and supports PCIe 3.0/2.0/1.0 protocols.
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation.
• Durable Construction: High-quality materials and shielding ensure longevity and repeated use.
• Plug-and-Play Operation: Requires no additional drivers or software for installation.
• Flexible Use: Ideal for systems without native Mini PCIe support, enabling Mini PCIe device integration via PCIe slots.

Specifications

• Host Connector: PCIe 3.0 x1 Male
• Device Connector: Mini PCIe Female (52-pin)
• Data Rate Support: Up to 8 GT/s (PCIe 3.0 x1), compatible with PCIe 2.0/1.0.
• Supported Protocols: PCIe 3.0/2.0/1.0.
• Power Delivery: Integrated power delivery through Mini PCIe connector (3.3V).
• Cable Length: Typically 0.3m, 0.5m, 0.7m (standard options).
• Operating Temperature: -20°C to +85°C.
• Durability Rating: 2,500+ mating cycles (connectors).
• Shielding: Individual pair shielding with overall braid protection to minimize EMI.
• Contact Plating: Gold-plated contacts (15?" minimum) for enhanced conductivity.
• Impedance: 85? ±5% (differential).
• Dielectric Withstanding Voltage: 300V AC.

Applications

• Industrial Computing: Adding Mini PCIe peripherals (e.g., Wi-Fi, Bluetooth cards) to industrial PCs.
• Embedded Systems: Enabling Mini PCIe connectivity in embedded and single-board computer applications.
• Test Benches: Temporary connectivity for testing and validating Mini PCIe devices.
• Data Recovery: Facilitating access to Mini PCIe SSDs for data retrieval operations.
• Desktop Systems: Upgrading desktop PCs with Mini PCIe devices via PCIe slots.
• Research and Development: Prototyping and development involving Mini PCIe technology.
• IoT Devices: Expanding functionality of IoT gateways with Mini PCIe modules.
• Legacy System Upgrades: Modernizing older systems with Mini PCIe support through PCIe 3.0 interfaces.

Compatibility Notes

This cable is designed for connecting Mini PCIe devices to PCIe 3.0 x1 host interfaces. The Mini PCIe connector supports both PCIe and USB signals (though this cable is optimized for PCIe use). Ensure the host system’s PCIe slot supports PCIe 3.0 or earlier versions (2.0/1.0) for backward compatibility. The cable provides integrated power delivery, eliminating the need for separate power connectors for the Mini PCIe device. Note that PCIe 3.0 x1 bandwidth may limit the maximum performance of high-speed Mini PCIe devices (e.g., PCIe 3.0 x1 theoretical bandwidth is ~1 GB/s). Verify device power requirements, as some Mini PCIe devices may require additional power beyond what the cable provides. This cable is not suitable for mSATA drives that use the Mini PCIe form factor but rely on SATA protocols.

Note: All specifications adhere to PCI-SIG PCIe 3.0 standards and Mini PCIe specifications, ensuring interoperability with Mini PCIe devices and PCIe-based systems. For optimal performance, use high-quality cables with proper shielding to minimize signal degradation.
