PCIe 3.0 x1 to x1 Extension Cable, Male STR to Female Up R/A
P3-X1M-X1FUR PCIe 3.0 x1 to x1 Extension Cable, Male STR to Female Up R/A

Our Price: $12.00

Availability: Typically within 2 Business Days


Product Code: P3-X1M-X1FUR


Select Length*:

Qty:
Description

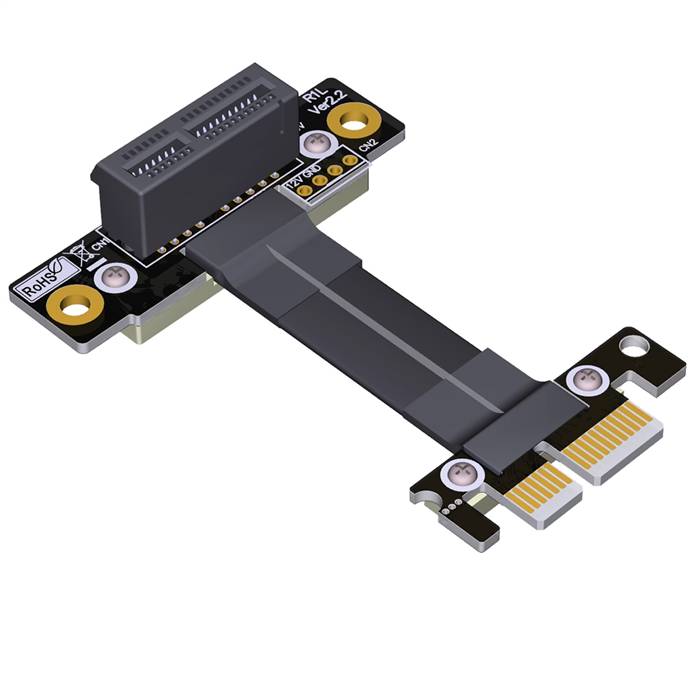

PCIe 3.0 x1 to x1 Extension Cable, Male STR to Female Up R/A

The PCIe 3.0 x1 to x1 Extension Cable, Male STR to Female Up R/A is a high-performance passive extension cable designed for computing and embedded systems requiring flexible PCIe connectivity. This cable extends a PCIe 3.0 x1 interface using a straight (STR) male connector on one end and an up right-angle (Up R/A) female connector on the other, enabling reliable data transmission between a host motherboard and PCIe devices (e.g., network cards, GPUs, or storage controllers) in space-constrained environments. Engineered to maintain PCIe 3.0 signal integrity, this solution is ideal for applications where physical obstructions or system design necessitate a right-angle connector orientation for efficient cable routing and space optimization.

Features

  • PCIe 3.0 Compliance: Supports PCIe 3.0 specifications with a data transfer rate of 8.0 GT/s per lane, providing a bandwidth of ~984.6 MB/s for x1 configurations while ensuring backward compatibility with PCIe 2.0 and 1.0 devices.
  • Hybrid Connector Orientation: Combines a straight (STR) male connector for standard motherboard insertion and an up right-angle (Up R/A) female connector to facilitate cable routing in tight spaces, reducing bending stress and improving airflow in dense systems.
  • Enhanced Signal Integrity: Utilizes 100-ohm differential impedance (PCIe Gen 3 standard) and multi-layer shielding (foil and braid) to minimize insertion loss, crosstalk, and electromagnetic interference (EMI), ensuring stable performance over extended lengths.
  • Passive Extension: Requires no external power or active components, relying on high-quality copper conductors (e.g., 28 AWG) and precise impedance matching for reliable signal transmission.
  • Durable Construction: Features gold-plated contacts (0.8–2µm thickness) and PVC insulation for corrosion resistance and longevity in commercial environments. The right-angle connector includes a robust housing to withstand mechanical stress.
  • Plug-and-Play Installation: Requires no drivers or software configuration, supporting hot-plug functionality (where enabled by the host system) for seamless integration.

Specifications

  • Product Model: PCIe 3.0 x1 to x1 Extension Cable, Male STR to Female Up R/A
  • Connector A: PCIe 3.0 x1, Male, Straight (STR)
  • Connector B: PCIe 3.0 x1, Female, Up Right-Angle (Up R/A)
  • Connector Gender: Male to Female
  • Cable Type: Passive Copper Extension Cable
  • Cable Length: Standard options: 0.3m, 0.5m, 1.0m (Custom lengths up to 1.5m available; beyond may require active components)
  • Data Rate Support: Up to 8.0 GT/s (PCIe 3.0)
  • Supported Protocols: PCI Express 3.0/2.0/1.0
  • Impedance: 100 ohms (differential, compliant with PCI-SIG Gen 3 standards)
  • Wire Gauge: 28 AWG (high-precision copper)
  • Shielding: Foil and braid shielding for EMI protection
  • Operating Temperature: 0°C to +70°C (commercial grade)
  • Voltage Rating: 12V (max)
  • Durability: Minimum 500 insertion cycles
  • Safety Standards: RoHS compliant

Applications

  • Space-Constrained Systems: Ideal for small form-factor PCs, embedded systems, and industrial environments where the up right-angle female connector allows clearance over adjacent components or chassis walls, simplifying installation.
  • Test Benches and Prototyping: Facilitating hardware debugging and prototyping where flexible connector orientations are needed to access PCIe slots in crowded test setups or development platforms.
  • Gaming and Workstation Customization: Enabling GPU or add-on card placement in custom PC builds where case design or cooling solutions require right-angle connections to avoid interference with other components.
  • Data Center and Server Maintenance: Supporting server upgrades and maintenance by extending PCIe slots to accessible locations, reducing the need for full disassembly during hardware changes.
  • Legacy System Upgrades: Extending PCIe connectivity in older systems with obstructed slots, where the right-angle connector ensures compatibility with limited vertical clearance.
  • Mining Rigs and Computational Setups: Providing flexible connections for multiple PCIe devices (e.g., GPUs, ASICs) in mining rigs, where right-angle orientations help manage cable clutter and improve airflow.
