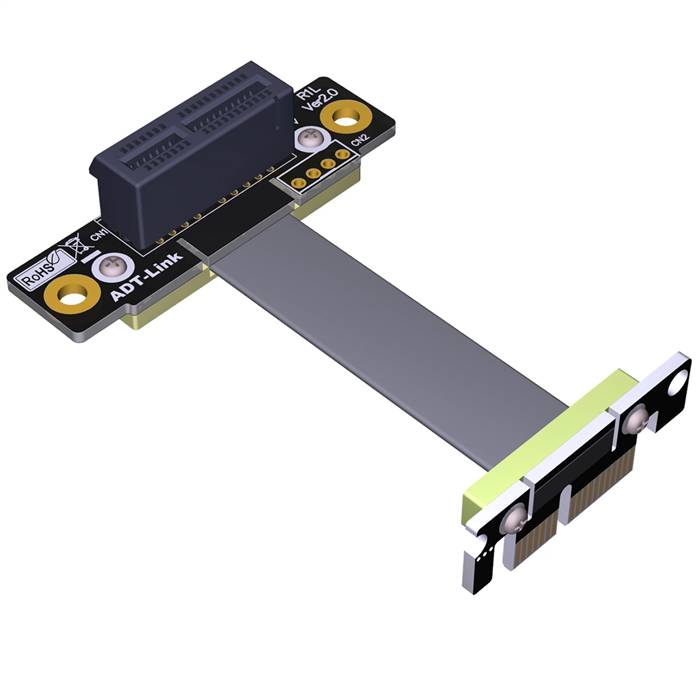

PCIe 3.0 x1 to x1 Extension Cable, Male Down R/A to Female Up R/A

The PCIe 3.0 x1 to x1 Extension Cable, Male Down R/A to Female Up R/A is a high-performance passive extension cable designed for computing and embedded systems requiring flexible PCIe connectivity in space-constrained environments. This cable extends a PCIe 3.0 x1 interface using a down right-angle (Down R/A) male connector on one end and an up right-angle (Up R/A) female connector on the other, enabling reliable data transmission between a host motherboard and PCIe devices (e.g., network cards, GPUs, or storage controllers). The hybrid right-angle orientation facilitates efficient cable routing around obstacles, reduces bending stress, and optimizes airflow in dense systems while maintaining PCIe 3.0 signal integrity. Engineered for durability and ease of use, this solution is ideal for applications where physical constraints necessitate precise connector positioning.

Features

• Hybrid Right-Angle Orientation: Combines a down right-angle (Down R/A) male connector for low-profile motherboard insertion and an up right-angle (Up R/A) female connector to accommodate vertical clearance needs, enabling flexible installation in cramped spaces and reducing cable strain.
• PCIe 3.0 Compliance: Supports PCIe 3.0 specifications with a data transfer rate of 8.0 GT/s per lane, providing a bandwidth of ~984.6 MB/s for x1 configurations while ensuring backward compatibility with PCIe 2.0 and 1.0 devices.
• Enhanced Signal Integrity: Utilizes 100-ohm differential impedance (PCIe Gen 3 standard) and multi-layer shielding (foil and braid) to minimize insertion loss, crosstalk, and electromagnetic interference (EMI), ensuring stable performance over extended lengths.
• Passive Extension: Requires no external power or active components, relying on high-quality copper conductors (e.g., 28 AWG) and precise impedance matching for reliable signal transmission.
• Durable Construction: Features gold-plated contacts (0.8–2µm thickness) and PVC insulation for corrosion resistance and longevity. The right-angle connectors include reinforced housings to withstand mechanical stress in commercial environments.
• Plug-and-Play Installation: Requires no drivers or software configuration, supporting hot-plug functionality (where enabled by the host system) for seamless integration into existing setups.

Specifications

• Product Model: PCIe 3.0 x1 to x1 Extension Cable, Male Down R/A to Female Up R/A
• Connector A: PCIe 3.0 x1, Male, Down Right-Angle (Down R/A)
• Connector B: PCIe 3.0 x1, Female, Up Right-Angle (Up R/A)
• Connector Gender: Male to Female
• Cable Type: Passive Copper Extension Cable
• Cable Length: Standard options: 0.3m, 0.5m, 1.0m (Custom lengths up to 1.5m available; beyond may require active components)
• Data Rate Support: Up to 8.0 GT/s (PCIe 3.0)
• Supported Protocols: PCI Express 3.0/2.0/1.0
• Impedance: 100 ohms (differential, compliant with PCI-SIG Gen 3 standards)
• Wire Gauge: 28 AWG (high-precision copper)
• Shielding: Foil and braid shielding for EMI protection
• Operating Temperature: 0°C to +70°C (commercial grade)
• Voltage Rating: 12V (max)
• Durability: Minimum 500 insertion cycles
• Safety Standards: RoHS compliant

Applications

• Space-Constrained Systems: Ideal for small form-factor PCs (SFF), embedded systems, and industrial environments where the hybrid right-angle orientation allows clearance under or over adjacent components, simplifying installation in racks or chassis with limited vertical or horizontal space.
• Test Benches and Prototyping: Facilitating hardware debugging and prototyping where flexible connector orientations are needed to access PCIe slots in crowded test setups or development platforms, reducing cable clutter.
• Gaming and Workstation Customization: Enabling GPU or add-on card placement in custom PC builds where case design, cooling solutions, or multi-GPU configurations require specific right-angle connections to avoid interference with other components.
• Data Center and Server Maintenance: Supporting server upgrades and maintenance by extending PCIe slots to accessible locations, reducing the need for full disassembly during hardware changes or expansions.
• Mining Rigs and Computational Setups: Providing flexible connections for multiple PCIe devices (e.g., GPUs, ASICs) in mining rigs or computational clusters, where right-angle orientations help manage cable clutter and improve airflow for thermal management.
• Legacy System Upgrades: Extending PCIe connectivity in older systems with obstructed slots, where the down/up right-angle design ensures compatibility with unique chassis layouts and limited clearance.
