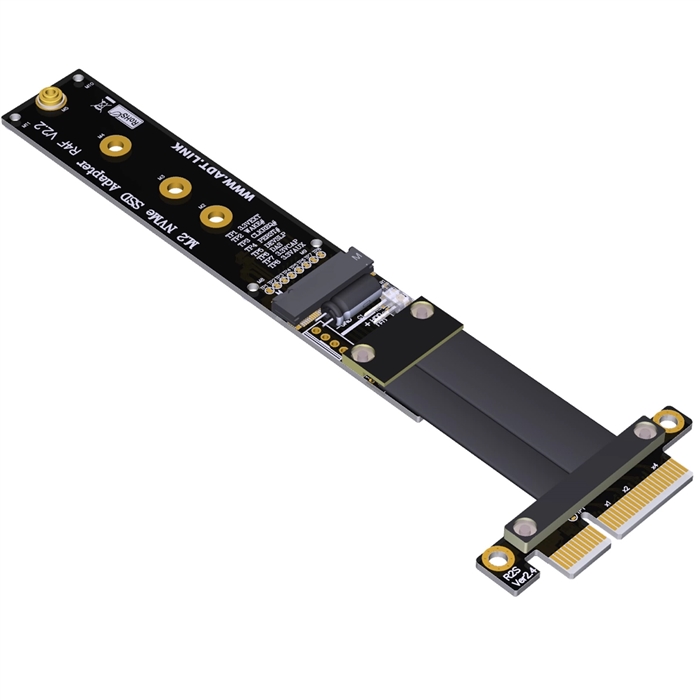

PCIe 3.0 x4 Male to M.2 NVMe Key M SSD Extension Cable

The PCIe 3.0 x4 Male to M.2 NVMe Key M SSD Extension Cable is a high-performance connectivity solution designed for extending PCI Express connectivity to M.2 NVMe solid-state drives. This cable enables flexible installation of high-speed storage devices in systems where direct motherboard mounting is impractical or where optimal positioning for thermal management is required. Engineered to maintain signal integrity at PCIe 3.0 speeds, this extension solution is ideal for desktop computers, servers, and workstations requiring reliable NVMe storage expansion.

Features

• Full PCIe 3.0 Compatibility: Supports data transfer rates up to 8 GT/s per lane, delivering total bandwidth of 32 Gbps for optimal NVMe SSD performance
• Universal M.2 Key M Support: Compatible with all standard M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 form factors
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission without signal degradation
• Secure Connection Design: Features durable connectors with secure locking mechanisms to prevent accidental disconnection
• Flexible Installation: Enables optimal SSD positioning for improved airflow and thermal management in various system configurations
• Robust Construction: High-quality shielded cable with EMI protection ensures reliable operation in diverse environments
• Tool-Free Installation: Simple plug-and-play setup requires no additional drivers or software

Specifications

• Host Interface: PCI Express 3.0 x4 Male connector
• Target Interface: M.2 Key M Female socket (M-Key)
• Supported Protocols: NVMe 1.3 and later specifications
• Data Transfer Rate: Up to 8 GT/s (PCIe 3.0)
• Total Bandwidth: 32 Gbps
• Supported SSD Lengths: 2230, 2242, 2260, 2280
• Cable Length: 15cm, 25cm, 30cm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Impedance: 85? ±10%
• Durability: 10,000 insertion cycles

Applications

• Desktop Computer Storage Expansion: Adds high-speed NVMe storage to systems with limited M.2 slots
• Server Storage Configuration: Enables flexible M.2 SSD placement in rack-mounted servers
• Workstation Storage Solutions: Provides additional NVMe storage for content creation and professional applications
• Gaming PC Upgrades: Extends storage capabilities for games and applications requiring fast load times
• Test and Development Environments: Facilitates SSD testing and validation in laboratory settings
• Legacy System Modernization: Upgrades older systems with modern NVMe storage technology
• Compact System Builds: Enables storage expansion in small form factor PCs with space constraints
