PCIe 3.0 x4 Male to x16 Female Extension Cable with SATA 15P Power Cable

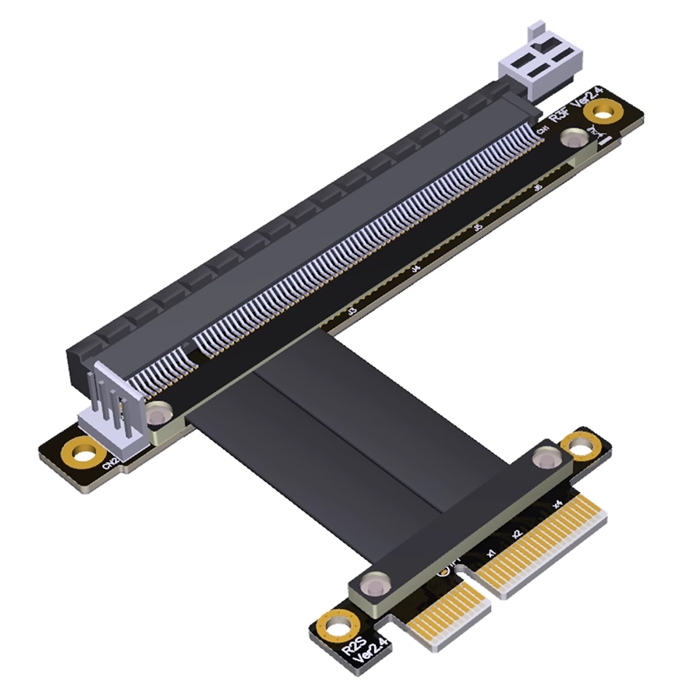

The PCIe 3.0 x4 Male to x16 Female Extension Cable with SATA 15P Power Cable is a comprehensive connectivity solution designed for expanding and powering PCIe devices in various computing environments. This integrated kit combines a high-speed PCIe 3.0 extension cable with a dedicated SATA 15-pin power cable, providing both signal extension and auxiliary power delivery for connected devices. The standard connector orientation ensures broad compatibility while maintaining full PCIe 3.0 performance characteristics. This solution is particularly suitable for graphics cards, storage controllers, and other powered PCIe devices requiring additional power beyond what the PCIe slot can provide, making it ideal for mining rigs, workstations, and system expansion projects.

Features

• Complete Power and Data Solution: Integrates PCIe 3.0 signal extension with SATA 15-pin power delivery for comprehensive device support
• Full PCIe 3.0 Compliance: Supports data rates up to 8 GT/s per lane, delivering 32 Gbps total bandwidth while maintaining backward compatibility
• Auxiliary Power Support: SATA 15P power cable provides additional power for devices requiring higher power consumption than the PCIe slot rating
• Universal Compatibility: Standard connector orientation supports various PCIe devices including GPUs, RAID cards, and other expansion cards
• Enhanced Signal Integrity: Precision engineering with controlled impedance and multi-layer shielding ensures stable signal transmission at high speeds
• Secure Connection Design: High-quality connectors with reliable mating interfaces ensure stable operation in continuous use environments
• Flexible Installation: Enables optimal device placement for improved thermal management and system organization

Specifications

• Host Connector: PCI Express 3.0 x4 Male
• Target Connector: PCIe x16 Female (electrically x4)
• Power Interface: SATA 15-pin power connector
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 32 Gbps (x4 lanes)
• Power Rating: 4.5W maximum per SATA power connector
• Cable Type: Shielded twisted pair for PCIe extension; standard power cables
• Extension Length: 200mm, 250mm, 300mm standard options
• Power Cable Length: 150mm typical length
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Rating: 0.5A per pin

Applications

• Cryptocurrency Mining Operations: Ideal for GPU mining rigs requiring multiple graphics cards with reliable power delivery
• Workstation Expansion: Perfect for professional workstations needing additional powered expansion cards for enhanced capabilities
• Server Room Deployments: Enables flexible installation of powered storage controllers and network cards in server environments
• Test and Development Labs: Essential for hardware validation requiring flexible device positioning with stable power supply
• System Integration Projects: Suitable for custom PC builds and system upgrades requiring additional power connections
• Industrial Computing: Provides reliable expansion for powered PCIe devices in industrial automation systems
• Entertainment Systems: Supports high-performance audio and video cards in media production and gaming setups
• Legacy System Upgrades: Enables modern powered PCIe card integration into older systems with available expansion slots
