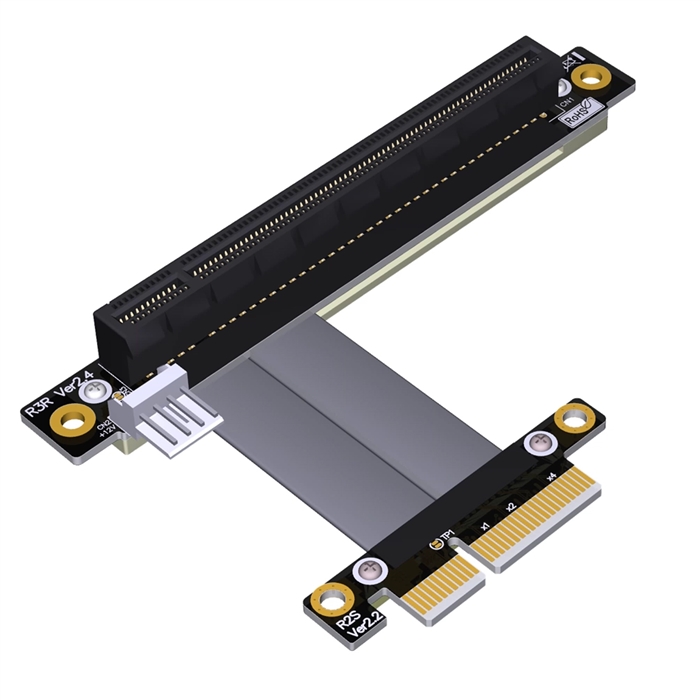

PCIe 3.0 x4 Male to x16 Female Down R/A Extension Cable with SATA 15P Power Cable

The PCIe 3.0 x4 Male to x16 Female Down R/A Extension Cable with SATA 15P Power Cable is a comprehensive connectivity solution designed for expanding and powering PCIe devices in professional and enthusiast computing environments. This kit combines a high-speed PCIe 3.0 extension cable featuring a Down Right-Angle (Down R/A) female connector for optimal space utilization with a dedicated SATA 15-pin power cable to ensure adequate power delivery for connected devices. Engineered to maintain signal integrity at PCIe 3.0 speeds while providing stable power, this solution is ideal for graphics cards, storage controllers, and other powered PCIe devices requiring flexible installation and reliable operation.

Features

• Dual-Function Design: Integrates a PCIe 3.0 x4 to x16 extension cable with a SATA 15-pin power cable for simultaneous data extension and auxiliary power delivery.
• Space-Optimized Connector: Down Right-Angle (Down R/A) female connector facilitates efficient cable management and installation in space-constrained chassis.
• Full PCIe 3.0 Performance: Supports data rates up to 8 GT/s per lane, delivering a total bandwidth of 32 Gbps for connected PCIe devices.
• Auxiliary Power Support: Included SATA 15P power cable provides additional power to the PCIe device or extension board, supporting higher power demands beyond what the slot provides.
• Enhanced Signal Integrity: Precision engineering with controlled impedance (e.g., 95? as seen in similar cables) and shielding minimizes signal degradation and EMI/RFI interference.
• Secure Connection: Robust connectors with secure mating interfaces ensure reliable connections.
• Broad Compatibility: Supports a wide range of PCIe devices (electrically x4, mechanically x16) and connects to standard SATA power sources from the power supply unit.

Specifications

• Host Connector: PCI Express 3.0 x4 Male
• Target Connector: PCIe x16 Female, Down Right-Angle (Down R/A) orientation, electrically x4
• Power Connector: SATA 15-pin (15P) power interface
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: Up to 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 32 Gbps (x4 lanes)
• Power Cable Connectors: SATA 15-pin female to SATA 15-pin male (configuration may vary)
• Power Cable Length: Typically 150mm to 310mm (approximately 0.15m to 0.31m) as found in common SATA power cables
• Extension Cable Length: Common options include 200mm (20cm) and 300mm (30cm)
• Operating Temperature: -20°C to +80°C

Applications

• High-Power GPU Setups: Ideal for extending and powering graphics cards in mining rigs, workstations, and custom PC builds where the GPU requires additional power beyond the PCIe slot.
• Powered PCIe Expansion Cards: Suitable for use with storage controller cards (e.g., RAID cards) or other PCIe devices that feature an auxiliary power input.
• Space-Constrained Server Configurations: Useful in 1U/2U rack servers or compact cases where a down-angled connector and external power connection are necessary for add-in cards.
• Test and Development Environments: Facilitates prototyping and testing of powered PCIe devices in lab settings, offering flexible positioning and power delivery.
• System Upgrades and Mods: Enables installation of modern, power-hungry PCIe cards into cases or onto motherboards with physical space limitations or insufficient onboard power delivery for the target slot.
