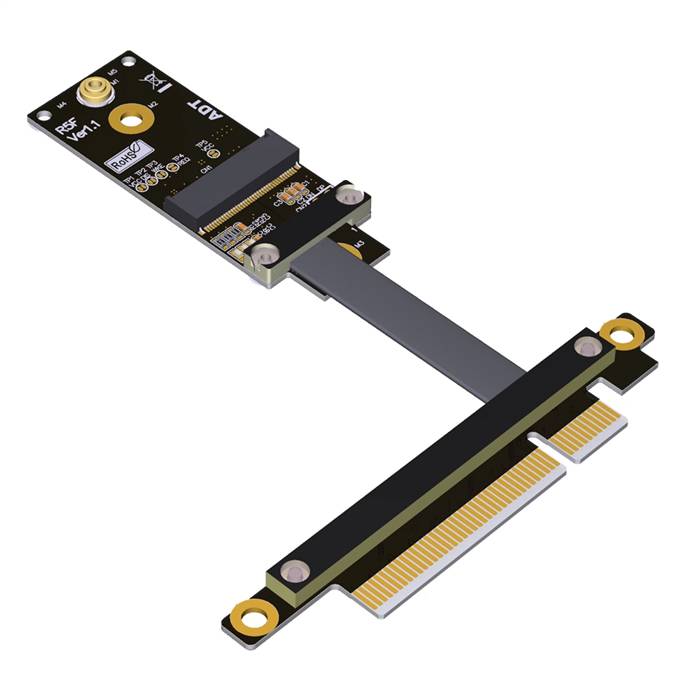

PCIe 3.0 x8 Male to M.2 WiFi Key A.E. Extension Cable

The PCIe 3.0 x8 Male to M.2 WiFi Key A.E. Extension Cable is a specialized connectivity solution designed to extend a standard PCIe 3.0 x8 host slot to an M.2 Key A+E interface, primarily for WiFi, Bluetooth, and other wireless communication modules . This cable enables flexible integration of M.2 A+E key expansion cards in situations where direct motherboard mounting is impractical due to space constraints or thermal management needs . Engineered to maintain signal integrity at PCIe 3.0 speeds, it is ideal for compact embedded systems, industrial computers, custom prototyping applications, and upgrading existing systems with modern wireless capabilities .

Features

• Standard to Compact Interface Conversion: Bridges full-size PCIe x8 slots with the space-efficient M.2 Key A+E interface, commonly used for WiFi and Bluetooth modules .
• PCIe 3.0 Compliance: Supports PCIe 3.0 specifications . The M.2 A+E key interface typically provides PCIe x1 lanes , along with support for USB 2.0 and other interfaces like I²C, SDIO, UART, and PCM for comprehensive wireless module connectivity .
• Space-Optimized Design: Facilitates installation in compact systems (e.g., mini-ITX, NUC) where traditional expansion cards cannot fit and allows for better thermal management by relocating modules .
• Enhanced Signal Integrity: Precision engineering with controlled impedance matching and quality shielding minimizes signal degradation and protects against electromagnetic interference .
• Secure Connection: Reliable mating interfaces ensure stable operation in various orientations.
• Broad Compatibility: Supports M.2 A+E key modules such as Wi-Fi 6/7 cards and other wireless network adapters .

Specifications

• Host Connector: PCI Express 3.0 x8 Male (often with a x16 mechanical form factor for broad compatibility)
• Device Connector: M.2 Key A+E (also labeled as A-E or A+E) Female
• Supported Standards: PCI-SIG PCIe 3.0 Base Specification; M.2 (NGFF) standard
• Keying: A+E Key (compatible with devices using the A+E or A-E key interface)
• Supported Protocols: PCIe x1 , USB 2.0 , and may support additional interfaces like I²C, SDIO, UART, PCM depending on the module
• Typical Data Rate: Up to 8.0 GT/s per lane (PCIe 3.0)
• Cable Type: Shielded cable construction
• Common Cable Lengths:0.05m, and 0.10m are typical options
• Operating Temperature: Commercial grade (e.g., 0°C to +70°C) or industrial grade (e.g., -40°C to +85°C) depending on the product variant

Applications

• Embedded Systems & Industrial PCs: Ideal for compact computing devices, industrial control systems, and AI accelerator platforms requiring flexible wireless expansion .
• Mini-ITX and Small Form Factor Builds: Enables addition of WiFi/Bluetooth functionality in space-constrained HTPCs, gaming consoles, and custom PCs where internal mounting space is limited .
• Prototyping and Development: Facilitates testing and validation of M.2 A+E key modules in laboratory and development environments .
• Digital Signage and Kiosks: Provides reliable wireless connectivity expansion in commercial installations .
• System Upgrades: Allows integration of modern M.2 wireless cards into older systems or motherboards with available PCIe slots but lacking an onboard M.2 socket .
• Raspberry Pi 5 Expansion: When used with specific carrier boards or HATs designed for PCIe connectivity, it can enable M.2 wireless module integration for Raspberry Pi 5 .
