PCIe 3.0 x8 Male to Mini PCIe Female Extension Cable

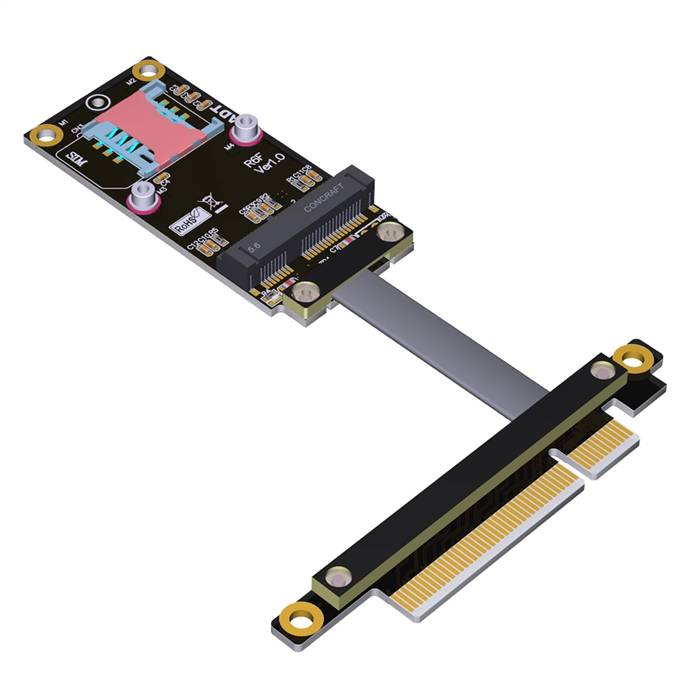

The PCIe 3.0 x8 Male to Mini PCIe Female Extension Cable is a specialized connectivity solution designed to extend a standard PCIe 3.0 x8 slot to a Mini PCIe interface. This cable enables flexible integration of Mini PCIe expansion cards in situations where direct motherboard mounting is impractical. Engineered to maintain signal integrity at PCIe 3.0 speeds, it is ideal for compact embedded systems, industrial computers, and custom prototyping applications where space optimization is critical.

Features

• Interface Conversion: Bridges full-size PCIe x8 slots with space-efficient Mini PCIe cards
• Full PCIe 3.0 Compliance: Supports data rates up to 8 GT/s per lane, providing total bandwidth of 64 Gbps
• Space-Optimized Design: Enables installation in compact systems where traditional expansion cards cannot fit
• Enhanced Signal Integrity: Precision engineering with controlled impedance matching minimizes signal degradation
• Robust Construction: Features quality shielding to protect against electromagnetic interference
• Secure Connection: Reliable mating interfaces ensure stable operation in various orientations
• Broad Compatibility: Supports PCIe 3.0 standard with backward compatibility to PCIe 2.0/1.0 devices

Specifications

• Host Connector: PCI Express 3.0 x8 Male
• Device Connector: Mini PCIe 52-pin Female
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: Up to 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 64 Gbps (x8 lanes)
• Impedance: 85? ±10%
• Cable Type: Shielded twisted pair or coaxial design
• Cable Length: Common options include 0.05m, 0.10m
• Operating Temperature: -20°C to +80°C
• Durability Rating: Minimum 5,000 mating cycles

Applications

• Embedded Systems: Ideal for industrial PCs and compact computing devices requiring expansion capabilities
• Prototyping and Development: Facilitates testing and validation of Mini PCIe modules in laboratory environments
• Digital Signage and Kiosks: Enables wireless connectivity expansion in space-constrained commercial installations
• Industrial Automation: Provides reliable expansion for control systems in manufacturing environments
• Thin Client Solutions: Allows additional functionality in minimalist computing devices
• Network Appliances: Suitable for adding specialized networking features to router and firewall systems
• Legacy System Upgrades: Enables modern Mini PCIe card integration in older systems with available PCIe slots
• Custom PC Builds: Useful for specialized computing projects requiring non-standard card placement
