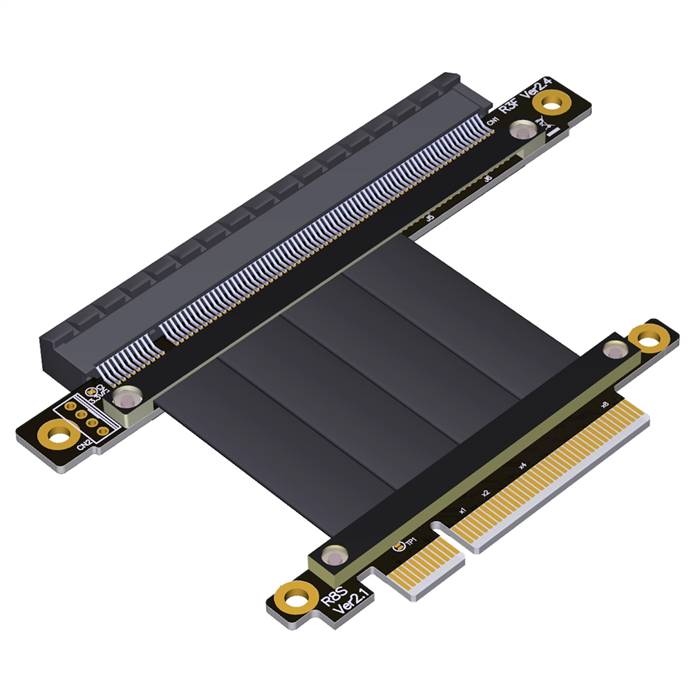

PCIe 3.0 x8 Male to x16 Female Extension Cable

The PCIe 3.0 x8 Male to x16 Female Extension Cable is a high-performance connectivity solution designed for expanding PCI Express capabilities in various computing environments. This cable provides a reliable electrical pathway from a motherboard's PCIe 3.0 x8 slot to a full-size x16 expansion card interface, maintaining signal integrity while offering flexible installation options. Engineered to deliver stable performance at PCIe 3.0 speeds, this extension solution is ideal for graphics cards, storage controllers, network adapters, and other expansion cards requiring reliable signal extension in both professional and enthusiast computing applications.

Features

• Full PCIe 3.0 Compatibility: Supports data transfer rates up to 8 GT/s per lane, delivering total bandwidth of 64 Gbps while maintaining backward compatibility with PCIe 2.0/1.0 devices
• Universal Connectivity: x16 female connector accommodates full-size expansion cards while operating electrically as x8 lanes, providing broad device compatibility
• Enhanced Signal Integrity: Multi-layer shielding with individual pair protection and overall braid shielding minimizes EMI/RFI interference
• Secure Connection Design: High-quality connectors with gold-plated contacts and secure mating mechanisms ensure reliable connections
• Flexible Application Support: Suitable for various expansion cards including GPUs, RAID controllers, network adapters, and specialized computing cards
• Robust Construction: Durable cable jacket and strain relief features provide long-term reliability in continuous operation environments
• Easy Installation: Simple plug-and-play setup requires no additional drivers or software configuration

Specifications

• Host Connector: PCI Express 3.0 x8 Male
• Target Connector: PCIe x16 Female (electrically x8)
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: 8.0 GT/s per lane
• Total Bandwidth: 64 Gbps (x8 lanes)
• Characteristic Impedance: 85? ±10%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Current Rating: 0.5A per pin

Applications

• GPU Extension Solutions: Ideal for cryptocurrency mining rigs, multi-GPU workstations, and graphics card testing setups
• Server Expansion: Enables flexible placement of storage controllers and network cards in rack-mounted servers
• Test and Development Environments: Essential for hardware validation labs requiring flexible card positioning and frequent device changes
• Industrial Computing Systems: Suitable for industrial automation equipment requiring reliable PCIe extension in controlled environments
• Digital Signage and Kiosk Systems: Facilitates compact system designs while maintaining expansion capabilities
• Home Theater PCs: Supports expansion cards in media center systems requiring flexible component placement
• Legacy System Upgrades: Enables modern PCIe 3.0 card integration into older systems with available expansion slots
• Custom PC Builds: Provides flexibility for unique computer configurations and specialized computing applications
