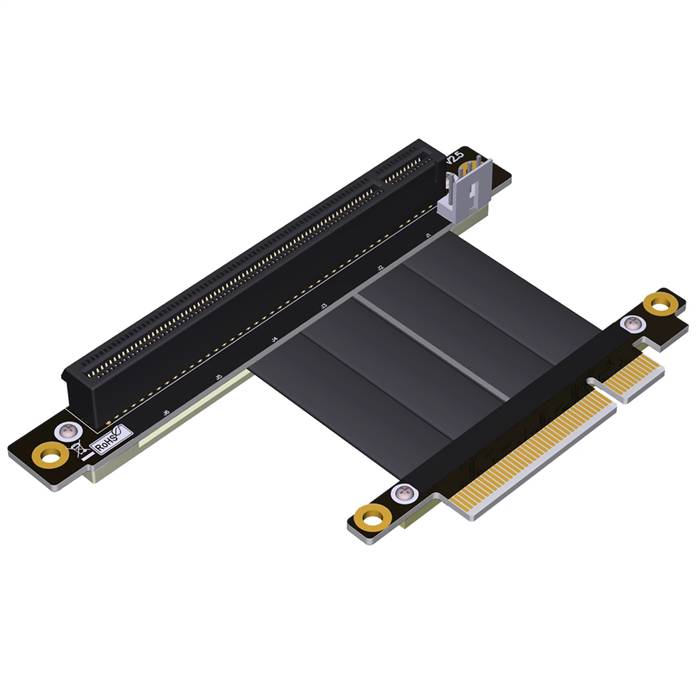

PCIe 3.0 x8 Male to x16 Female Up R/A Extension Cable with SATA 15P Power Cable

The PCIe 3.0 x8 Male to x16 Female Up R/A Extension Cable with SATA 15P Power Cable is a comprehensive connectivity solution designed for expanding and powering PCIe devices in professional computing environments. This integrated kit combines a high-speed PCIe 3.0 extension cable featuring an Up Right-Angle female connector with a dedicated SATA 15-pin power cable. The upward-angled connector design enables superior cable routing and space efficiency while the integrated power solution supports devices requiring additional power beyond the PCIe slot capability. This complete solution is ideal for graphics cards, storage controllers, and other powered PCIe devices in mining rigs, workstations, and system expansion projects where both performance and optimal cable management are critical.

Features

• Integrated Power Solution: Combines PCIe 3.0 signal extension with SATA 15-pin power delivery for complete device support
• Optimized Connector Orientation: Up Right-Angle female connector enables superior cable management and improved chassis airflow
• Full PCIe 3.0 Performance: Supports data rates up to 8 GT/s per lane, delivering 64 Gbps total bandwidth for connected devices
• Auxiliary Power Delivery: SATA 15P power cable provides additional power for devices requiring more power than the PCIe slot can deliver
• Enhanced Signal Integrity: Precision engineering with controlled impedance and multi-layer shielding ensures stable signal transmission
• Secure Connection System: Robust connectors with positive locking mechanisms prevent accidental disconnection
• Universal Compatibility: Supports various PCIe devices including GPUs, RAID cards, and other expansion cards requiring auxiliary power

Specifications

• Host Connector: PCI Express 3.0 x8 Male
• Target Connector: PCIe x16 Female, Up Right-Angle orientation, electrically x8
• Power Interface: SATA 15-pin power connector
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 64 Gbps (x8 lanes)
• Power Rating: 4.5W maximum per SATA power connector
• Cable Type: Shielded twisted pair for PCIe extension; standard power cables
• Extension Length: 200mm, 250mm, 300mm standard options
• Power Cable Length: 150mm typical length
• Operating Temperature: 0°C to +70°C
• Durability Rating: 10,000 mating cycles

Applications

• GPU Mining Rigs: Ideal for cryptocurrency mining operations requiring multiple graphics cards with upward cable routing and power delivery
• Workstation Expansion: Perfect for professional workstations needing additional powered expansion cards with optimized cable management
• Server Storage Solutions: Enables flexible installation of powered storage controllers in rack-mounted servers
• Test and Development: Essential for laboratory environments requiring flexible device positioning with reliable power delivery
• Compact System Builds: Suitable for small form factor PCs where space optimization and specific connector orientations are critical
• Industrial Computing: Provides reliable expansion for powered PCIe devices in industrial control systems
• Broadcast Equipment: Supports professional video and audio cards requiring stable power and specific connector angles
• Custom PC Modifications: Enables creative system configurations for enthusiasts and system integrators dealing with unique spatial requirements
