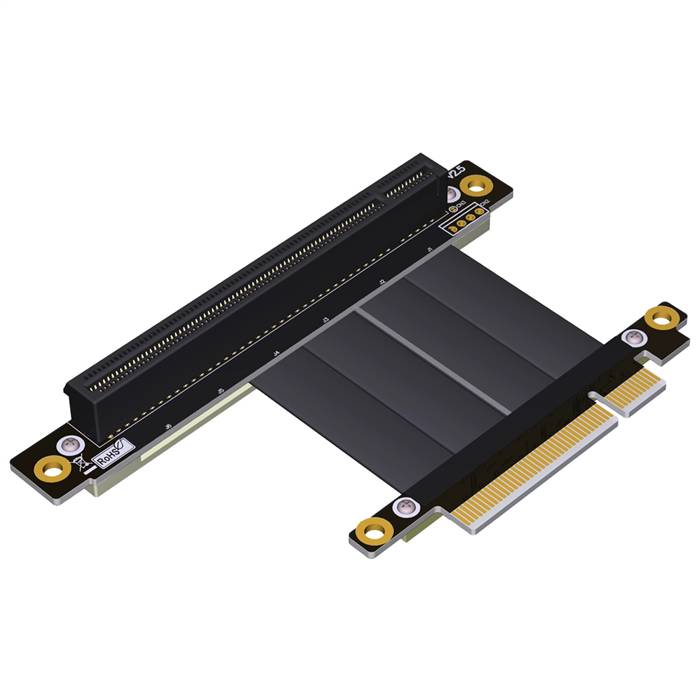

PCIe 3.0 x8 Male to x16 Female Up R/A Extension Cable

The PCIe 3.0 x8 Male to x16 Female Up R/A Extension Cable is a specialized connectivity solution designed for expanding PCIe connectivity in computing environments requiring specific cable routing orientations. This cable features an Up Right-Angle female connector that enables superior cable management and optimal space utilization in various chassis configurations. Engineered to maintain signal integrity at PCIe 3.0 speeds, this extension solution provides reliable performance for graphics cards, storage controllers, and other expansion cards while facilitating clean cable routing in both standard and compact systems.

Features

• Optimized Cable Management: Up Right-Angle female connector design allows for efficient cable routing and improved chassis airflow
• Full PCIe 3.0 Compliance: Supports data rates up to 8 GT/s per lane, delivering 64 Gbps total bandwidth while maintaining backward compatibility
• Enhanced Signal Integrity: Precision engineering with controlled impedance matching ensures stable data transmission without signal degradation
• Mechanical x16 Support: Accommodates full-size expansion cards while operating electrically as x8 lanes, providing broad device compatibility
• Secure Connection Interface: High-quality connectors with reliable mating mechanisms ensure stable operation in various orientations
• Universal Application: Compatible with various PCIe devices including GPUs, storage controllers, and network adapters
• Flexible Installation: Enables optimal card positioning for improved thermal management and system organization

Specifications

• Host Connector: PCI Express 3.0 x8 Male
• Target Connector: PCIe x16 Female, Up Right-Angle orientation, electrically x8
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 64 Gbps (x8 lanes)
• Characteristic Impedance: 85? ±10%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 200mm, 250mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• Server Rack Configurations: Ideal for rack-mounted servers where upward cable routing optimizes space utilization and airflow
• Workstation Expansion: Perfect for professional workstations requiring additional expansion cards with optimized cable management
• Mining Operations: Suitable for cryptocurrency mining rigs requiring specific connector orientations for efficient GPU arrangements
• Test and Development: Essential for laboratory environments requiring flexible card positioning for device validation and testing
• Industrial Computing: Provides reliable expansion for PCIe devices in industrial control systems with specific spatial requirements
• Entertainment Systems: Supports audio and video cards in home theater PCs and media centers requiring clean cable management
• System Integration: Facilitates custom system builds for enthusiasts and professionals dealing with unique chassis configurations
• Compact System Deployments: Enables expansion card integration in small form factor systems where specific connector orientations are critical
