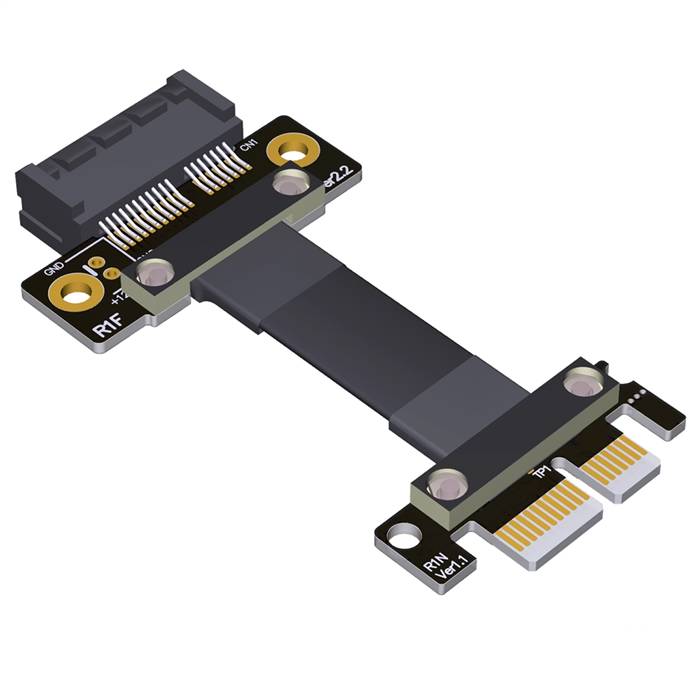

PCIe 3.0 x1 Tx to Rx Cross Over Jumper Cable, Male to Female

The PCIe 3.0 x1 Tx to Rx Cross Over Jumper Cable, Male to Female, is a specialized passive interconnect solution designed for establishing standard-compliant PCIe connections between different port types in test, development, and diagnostic applications. This cable implements the correct PCIe communication protocol by crossing the Transmit (Tx) lanes from one end to the Receive (Rx) lanes on the opposite end, enabling proper communication between PCIe devices. Engineered for PCIe 3.0 systems operating at 8.0 GT/s per lane, this male-to-female crossover jumper provides approximately 985 MB/s bandwidth for x1 configurations. The combination of male and female connectors offers flexible interconnection options between various PCIe devices and test equipment. Constructed with precision impedance-matched wiring and comprehensive EMI shielding, this cable is ideal for benchtop testing, prototyping, and creating direct links between PCIe-based systems with different connector requirements.

Features

• Standard Tx-to-Rx Cross Pinout: Implements PCIe-SIG compliant pin mapping by connecting Transmit (Tx) channels to Receive (Rx) channels, enabling proper communication between PCIe devices
• Mixed Connector Configuration: Features PCIe x1 male connector on one end and female connector on the opposite end, providing flexible connection options for various test scenarios
• PCIe 3.0 Electrical Compliance: Supports PCIe 3.0 specifications with 8.0 GT/s per lane data transfer rate while maintaining backward compatibility with PCIe 2.0/1.0 devices
• Enhanced Signal Integrity: Utilizes multi-layer foil and braid shielding with low-loss dielectric materials to minimize insertion loss, crosstalk, and electromagnetic interference
• Passive Design: Requires no external power or active components, using high-quality copper conductors and precise impedance control for reliable signal transmission
• Durable Construction: Built with gold-plated contacts (0.76µm minimum thickness) and reinforced connector housings to withstand repeated mating cycles in test environments

Specifications

• Product Model: PCIe 3.0 x1 Tx to Rx Cross Over Jumper Cable, Male to Female
• Connector A: PCIe 3.0 x1, Male, Straight
• Connector B: PCIe 3.0 x1, Female, Straight
• Connector Gender: Male to Female
• Cable Type: Passive Copper Crossover Assembly
• Pinout Configuration: Standard Tx-to-Rx Crossover (PCIe-Compliant)
• Cable Length: Available in 0.15m, 0.25m, and 0.5m options. Maximum recommended length: 0.5m for PCIe 3.0 signals
• Data Rate Support: Up to 8.0 GT/s (PCIe 3.0 specification)
• Supported Protocols: PCI Express 3.0/2.0/1.0
• Impedance Characteristics: 85 ohms differential (compliant with PCIe standards)
• Shielding System: Dual-layer foil and braid shielding for superior EMI protection
• Operating Temperature Range: 0°C to +70°C (commercial grade)
• Durability Rating: Minimum 500 insertion cycles
• Compliance Standards: RoHS compliant

Applications

• Test and Development Environments: Enables direct connection between different types of PCIe devices for hardware validation, protocol analysis, and firmware development
• Prototype Systems: Facilitates custom PCIe connections in research and development projects requiring mixed connector types
• Diagnostic and Debugging: Used for system diagnostics, signal integrity testing, and troubleshooting PCIe communication issues between devices with different connector requirements
• Equipment Interfacing: Provides flexible interconnection solutions for connecting test equipment to PCIe devices in laboratory and production environments

Compatibility Notes

• Standard Compliance: This cable follows PCI-SIG standard pinout and can enable functional communication between compatible PCIe devices with different connector types
• Length Considerations: Passive PCIe 3.0 cables are subject to signal integrity constraints. For reliable operation at 8.0 GT/s, keep cable length under 0.5m
• Power Limitations: PCIe x1 slots provide limited power (up to 10W). Ensure connected devices do not exceed this limit to avoid instability
• Connection Compatibility: Verify that connected devices support the same PCIe generation and can establish a link through this crossover configuration
• Mechanical Stress Management: Avoid excessive bending or torsion near connector interfaces to maintain impedance continuity and prevent mechanical damage
• Hot-Plug Considerations: While PCIe standards support hot-plugging, functionality depends on the connected devices and system firmware. Consult device documentation before hot-plugging
• Signal Integrity Verification: For critical applications, validate signal quality using appropriate test equipment, especially when using cables at maximum recommended length
