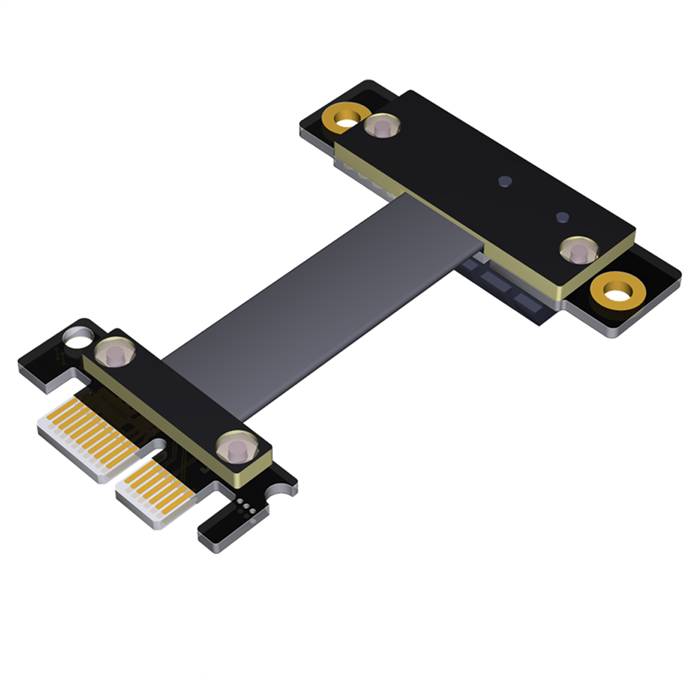

PCIe 3.0 x1 Tx to Rx Cross Over Jumper Cable, Male to Female Down R/A

The PCIe 3.0 x1 Tx to Rx Cross Over Jumper Cable, Male to Female Down R/A is a specialized high-performance interface solution designed for unique connectivity scenarios requiring signal crossover between transmission (Tx) and reception (Rx) lanes with downward right-angle orientation. This cable features a PCIe 3.0 x1 male connector on one end and a downward right-angle (Down R/A) PCIe 3.0 x1 female connector on the other end, with internal wiring that crosses Tx and Rx pairs to enable specific testing, debugging, or custom configuration requirements. Engineered for exceptional signal integrity, this cable utilizes 85? low-impedance twin-axial cable technology (e.g., 31 AWG signal wires, as utilized in premium designs) to minimize signal degradation and ensure high-speed data transfer. It is ideal for advanced testing environments, development setups, and specialized applications where conventional straight-through cables cannot meet specific signal routing needs.

Features

• Signal Crossover Design: Unique internal wiring crosses Tx and Rx lanes between connectors, enabling specific testing and debugging scenarios where signal reversal is required.
• Downward Right-Angle Female Connector: Space-saving downward right-angle (90°) female connector facilitates efficient cable routing under components or along motherboard trays.
• High-Speed Performance: Supports PCIe 3.0 specifications with data transfer rates up to 8 GT/s (8 Gbps, 1 GB/s per lane for x1), ensuring PCIe 3.0 bandwidth integrity despite crossover configuration.
• Low Impedance: Optimized 85? impedance matching (per PCIe 3.0 standards) ensures minimal signal degradation and superior signal integrity.
• Enhanced Compatibility: Compatible with PCIe 3.0/2.0/1.0 protocols and works with both Intel and AMD motherboards.
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation.
• Durable Construction: High-quality materials (e.g., gold-plated contacts, braided shielding) ensure longevity and repeated use. Features EMI shielding to reduce electromagnetic interference.
• Flexible Design: Utilizes thin, flat twin-axial cable (e.g., with fine signal wires such as 30 AWG found in similar designs) that supports tight bending radii for installation flexibility.

Specifications

• Host Connector: PCIe 3.0 x1 Male
• Device Connector: PCIe 3.0 x1 Female (Downward Right-Angle, 90°)
• Data Rate Support: Up to 8 GT/s (PCIe 3.0 x1), compatible with PCIe 2.0/1.0.
• Supported Protocols: PCIe 3.0/2.0/1.0.
• Impedance: 85? ±5% (differential).
• Cable Construction: Twin-axial cable with fine signal wires (e.g., 30 AWG as used in similar premium cables), offering flexibility.
• Cable Length: Common lengths include 250mm (0.25m), 300mm (0.3m), 500mm (0.5m). (Specify your preferred length when ordering.)
• Operating Temperature: -20°C to +85°C (or as required by application).
• Durability Rating: 2,500+ mating cycles (connectors).
• Shielding: Individual pair shielding with overall braid protection to minimize EMI.
• Contact Plating: Gold-plated contacts (0.76µm minimum gold thickness, per premium specs).
• Dielectric Withstanding Voltage: 300V AC.

Applications

• Testing & Debugging: Essential for validating PCIe signal integrity, protocol analysis, and hardware debugging where signal crossover is required.
• Development Environments: Used in R&D labs for prototyping and testing custom PCIe implementations or troubleshooting signal path issues.
• Data Centers: Specialized configurations in enterprise equipment where unique signal routing is necessary.
• High-Performance Computing: Custom setups in HPC environments requiring specific signal management.
• Quality Assurance: Manufacturing testing and validation of PCIe devices and interfaces.

Compatibility Notes

This cable is designed for specialized applications requiring Tx/Rx crossover. The downward right-angle female connector is ideal for environments where horizontal space is limited and cable routing must avoid obstruction (e.g., under PCB trays). Ensure the host system's PCIe slot supports PCIe 3.0 or earlier versions (2.0/1.0) for backward compatibility. Note: This is not a standard extension cable and should only be used in specific scenarios where signal crossover is explicitly required.
