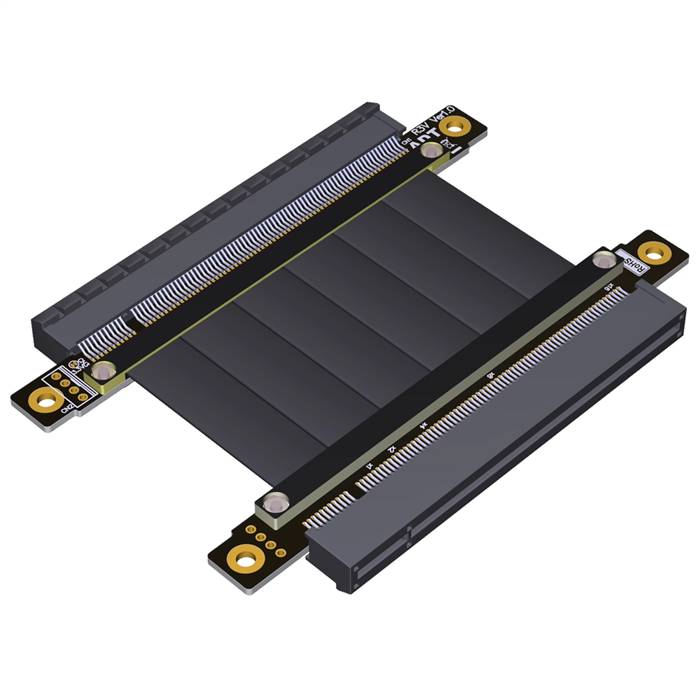

PCIe 3.0 x16 Tx to Rx Cross Over Jumper Cable, Female to Female

The PCIe 3.0 x16 Tx to Rx Cross Over Jumper Cable, Female to Female is a specialized high-speed interconnect solution designed for system integration, testing, and development applications requiring direct female-to-female connections with crossover signal routing. This cable features dual female connectors with a unique crossover wiring configuration that connects transmitter (Tx) channels to receiver (Rx) channels between interfaces. Engineered for PCIe 3.0 performance, this jumper cable enables direct device-to-device communication and loopback testing while ensuring signal integrity and compatibility in various computing and test environments.

Features

• Dual Female Connector Design: Enables direct connection between two female PCIe interfaces without adapter requirements
• Tx to Rx Cross Over Configuration: Specialized wiring connects transmitter channels to receiver channels between mating interfaces, facilitating direct device communication
• Precision Signal Integrity: Controlled impedance design ensures reliable performance at PCIe 3.0 data rates up to 8 GT/s per lane
• Full PCIe 3.0 Compatibility: Supports data rates up to 8 GT/s per lane, delivering total bandwidth of 128 Gbps
• Enhanced Shielding: Multi-layer protection against electromagnetic interference maintains signal quality
• Secure Connection System: Robust female connectors with reliable mating mechanisms ensure stable connections
• Universal Application: Suitable for various testing, development, and system integration scenarios requiring signal path crossing

Specifications

• Connector Type: PCI Express 3.0 x16 Female to Female
• Wiring Configuration: Tx to Rx Cross Over (Crossover)
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 128 Gbps (x16 lanes)
• Characteristic Impedance: 85? ±10%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 200mm, 300mm, 500mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• Hardware Validation and Testing: Essential for PCIe device testing, protocol analysis, and signal integrity validation requiring direct device-to-device communication
• Development and Prototyping: Ideal for product development environments requiring loopback testing and signal path crossing between female interfaces
• System Integration: Facilitates connections in complex systems where signal path crossing between female PCIe connectors is required
• Manufacturing Test Systems: Used in production test environments for PCIe device verification and quality assurance
• Research and Development: Suitable for academic and industrial research projects involving high-speed serial communications
• Embedded Systems: Supports embedded computing applications requiring direct processor-to-peripheral connections with crossover configuration
• Debugging and Troubleshooting: Provides specialized connectivity for system analysis and problem resolution in PCIe architectures
• Custom Applications: Enables unique system configurations requiring female-to-female PCIe connectivity with crossover signal routing
