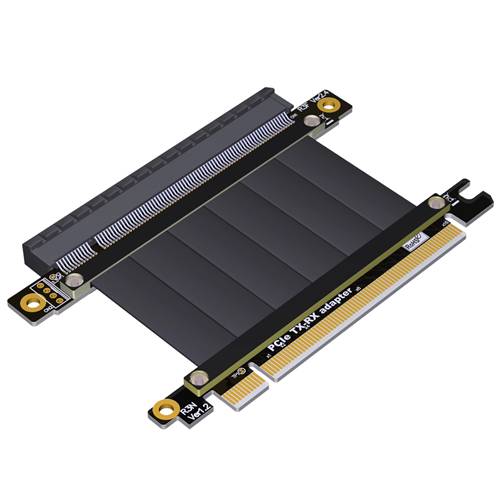

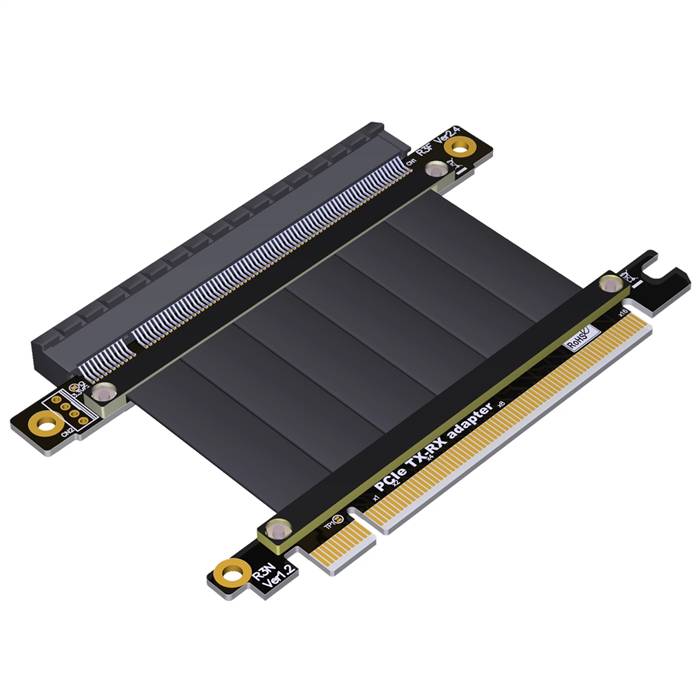

PCIe 3.0 x16 Tx to Rx Cross Over Jumper Cable, Male to Female

The PCIe 3.0 x16 Tx to Rx Cross Over Jumper Cable, Male to Female is a specialized interconnect solution designed for advanced testing, development, and direct device-to-device communication scenarios. This cable features a unique crossover wiring configuration that connects transmitter (Tx) channels to receiver (Rx) channels between male and female connectors, enabling direct PCIe device interconnection without host system intervention. Engineered for PCIe 3.0 performance, this crossover cable maintains signal integrity while providing essential flexibility for validation, prototyping, and specialized computing applications requiring non-standard signal routing between different connector types.

Features

• Tx to Rx Cross Over Configuration: Specialized wiring connects transmitter channels to receiver channels between mating interfaces, facilitating direct device communication
• Male to Female Connector Design: Standard connector combination enables flexible interconnection between different device types and interfaces
• Precision Signal Integrity: Controlled impedance design ensures reliable performance at PCIe 3.0 data rates up to 8 GT/s per lane
• Full PCIe 3.0 Compatibility: Supports data rates up to 8 GT/s per lane, delivering total bandwidth of 128 Gbps
• Enhanced Shielding: Multi-layer protection against electromagnetic interference maintains signal quality in various environments
• Secure Connection System: Robust connectors with reliable mating mechanisms ensure stable connections during operation
• Universal Application: Suitable for various testing, development, and system integration scenarios requiring signal path crossing

Specifications

• Connector Type: PCI Express 3.0 x16 Male to Female
• Wiring Configuration: Tx to Rx Cross Over (Crossover)
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 128 Gbps (x16 lanes)
• Characteristic Impedance: 85? ±10%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 200mm, 300mm, 500mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• Hardware Validation and Testing: Essential for PCIe device testing, protocol analysis, and signal integrity validation
• Development and Prototyping: Ideal for product development environments requiring direct device-to-device communication
• System Integration: Facilitates connections in complex systems where signal path crossing between different connector types is required
• Manufacturing Test Systems: Used in production environments for PCIe device verification and quality assurance
• Research and Development: Suitable for academic and industrial research projects involving high-speed serial communications
• Embedded Systems: Supports embedded computing applications requiring direct processor-to-peripheral connections
• Debugging and Troubleshooting: Provides specialized connectivity for system analysis and problem resolution
• Custom Computing Applications: Enables unique system configurations requiring non-standard signal routing between different interface types
