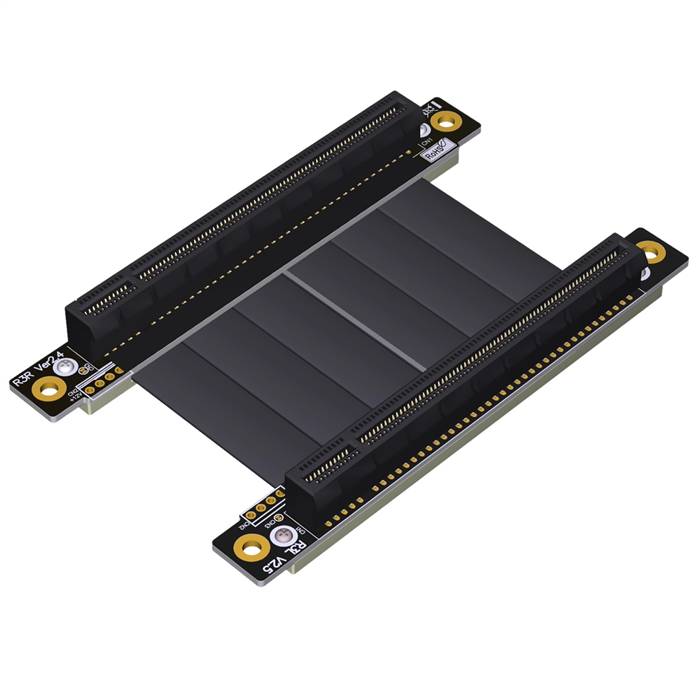

PCIe 3.0 x16 Tx to Tx Straight Through Jumper Cable, Female Up R/A to Female Up R/A

The PCIe 3.0 x16 Tx to Tx Straight Through Jumper Cable, Female Up R/A to Female Up R/A is a specialized interconnect solution designed for high-density computing and test environments requiring dual upward right-angle connections and straight-through signal transmission. This cable features dual female up right-angle connectors with standard straight-through wiring that maintains native transmitter-to-transmitter (Tx to Tx) and receiver-to-receiver (Rx to Rx) channel alignment. Engineered for PCIe 3.0 performance, this jumper cable provides reliable point-to-point connections while addressing spatial constraints in rack-mounted systems, test fixtures, and embedded applications where dual upward right-angle connector orientation is essential for optimal cable management and airflow.

Features

• Dual Up Right-Angle Connector Design: Both female connectors feature upward right-angle orientation for space-optimized installations in confined spaces
• Straight Through Configuration: Maintains standard Tx-Tx and Rx-Rx channel alignment for direct signal path continuity
• Space-Efficient Design: Up right-angle connectors facilitate clean upward cable routing and improved airflow in high-density configurations
• Enhanced Shielding: Multi-layer protection against electromagnetic interference maintains signal quality in noisy environments
• Secure Connection System: Robust right-angle connectors with reliable mating mechanisms ensure stable connections
• High-Density Application Support: Specifically designed for applications where upward cable routing and connector clearance are critical
• Precision Signal Integrity: Controlled impedance design ensures reliable performance at PCIe 3.0 data rates up to 8 GT/s per lane

Specifications

• Connector Type: PCI Express 3.0 x16 Female to Female
• Connector Orientation: Dual Up Right-Angle (Up R/A) configuration
• Wiring Configuration: Tx to Tx Straight Through (Standard Pinout)
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 128 Gbps (x16 lanes)
• Characteristic Impedance: 85? ±10%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 200mm, 300mm, 500mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• High-Density Server Racks: Ideal for 1U/2U server configurations where dual upward right-angle connectors are necessary for optimal cable management
• Test and Measurement Equipment: Essential for test fixtures and validation systems requiring upward right-angle connections
• Embedded Systems: Supports space-constrained embedded computing applications with specific upward cable routing requirements
• Telecommunications Equipment: Suitable for network infrastructure requiring high-density PCIe connections with upward orientation
• Industrial Computing: Perfect for industrial control systems where space optimization and upward cable routing are critical
• Research and Development: Supports prototyping and development of high-density computing solutions with optimized airflow
• Manufacturing Test Fixtures: Used in production test environments requiring specific upward connector orientations
• Data Center Applications: Facilitates connections in space-optimized data center equipment and storage systems with upward cable management
