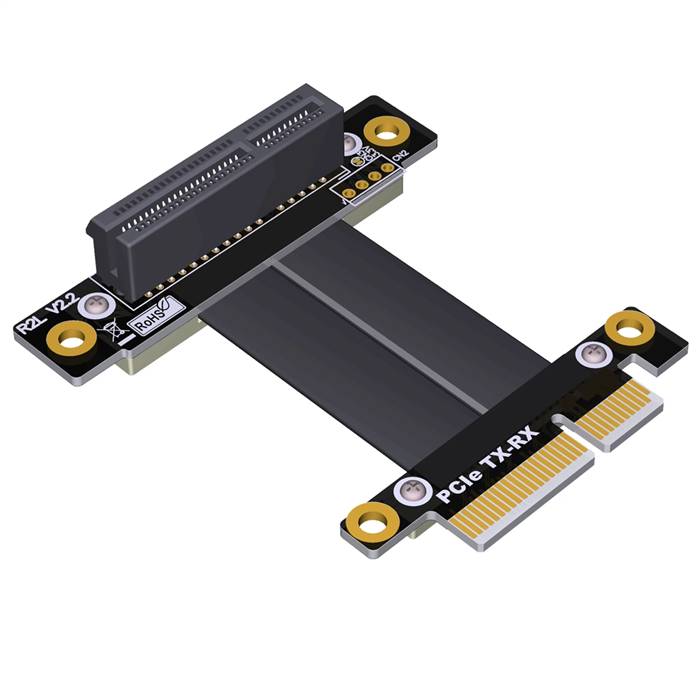

PCIe 3.0 x4 Tx to Rx Cross Over Jumper Cable, Male to Female Up R/A

The PCIe 3.0 x4 Tx to Rx Cross Over Jumper Cable, Male to Female Up R/A is a specialized interconnect solution designed for advanced testing and development applications requiring both signal path crossing and upward-oriented connector orientation. This cable features a unique crossover wiring configuration that connects transmitter (Tx) channels to receiver (Rx) channels between different connector types, combined with an Up Right-Angle female connector for optimized cable management. Engineered for PCIe 3.0 performance, this jumper cable enables direct device-to-device communication while providing superior cable routing capabilities in test setups and embedded systems.

Features

• Tx to Rx Cross Over Configuration: Specialized wiring connects transmitter channels to receiver channels between mating interfaces, enabling direct device communication
• Up Right-Angle Female Connector: Up R/A design facilitates optimal cable routing and space efficiency in various configurations
• Precision Signal Integrity: Controlled impedance design ensures reliable performance at PCIe 3.0 data rates up to 8 GT/s per lane
• Enhanced Shielding: Multi-layer protection against electromagnetic interference maintains signal quality in noisy environments
• Secure Connection System: Robust connectors with reliable mating mechanisms ensure stable connections during testing and operation
• Space-Optimized Design: Up R/A connector orientation allows for efficient use of space in test racks and development setups
• Broad Compatibility: Supports various PCIe 3.0 devices and test equipment requiring specialized signal routing

Specifications

• Connector Type: PCI Express 3.0 x4 Male to Female
• Connector Orientation: Up Right-Angle (Up R/A) on female connector
• Wiring Configuration: Tx to Rx Cross Over (Crossover)
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 32 Gbps (x4 lanes)
• Characteristic Impedance: 85? ±10%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 150mm, 200mm, 300mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• Test and Validation Laboratories: Essential for PCIe device testing and protocol analysis requiring signal crossing and upward cable routing
• Development Systems: Ideal for prototyping environments needing flexible connector orientations and direct device communication
• Embedded Computing: Supports embedded system development requiring specific connector orientations and signal path manipulation
• Manufacturing Test Equipment: Used in production test setups for PCIe device verification with upward cable management requirements
• Research Projects: Suitable for academic and industrial research involving custom PCIe implementations and signal analysis
• System Integration: Facilitates connections in complex systems where both signal crossing and upward connector orientation are beneficial
• Debugging Environments: Provides specialized connectivity for system troubleshooting and signal integrity validation with optimized cable routing
• Custom Applications: Supports unique system configurations requiring non-standard signal routing and specific connector orientations
