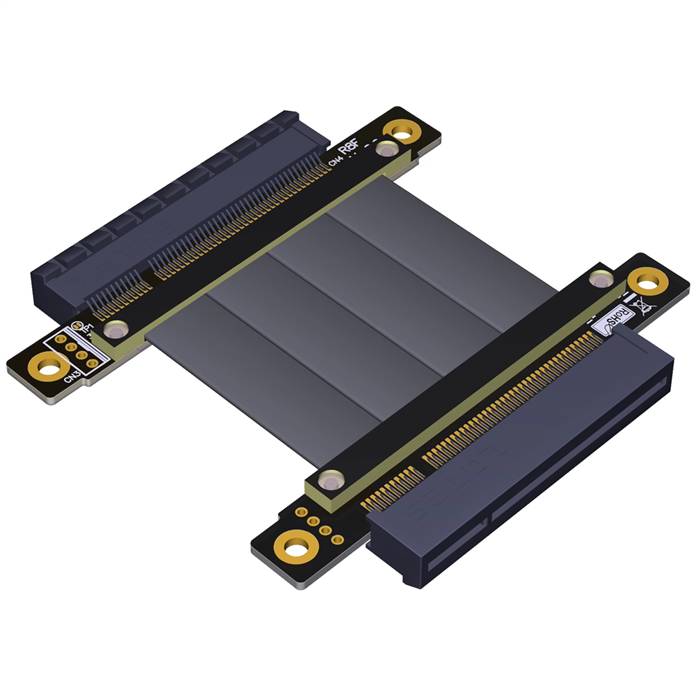

PCIe 3.0 x8 Tx to Tx Straight Through Jumper Cable, Female to Female

The PCIe 3.0 x8 Tx to Tx Straight Through Jumper Cable, Female to Female is a specialized interconnect solution designed for system integration, testing, and development applications requiring direct female-to-female connections with standard signal routing. This cable features dual female connectors with straight-through wiring that maintains native transmitter-to-transmitter (Tx to Tx) and receiver-to-receiver (Rx to Rx) channel alignment. Engineered for PCIe 3.0 performance, this jumper cable provides reliable point-to-point connections between compatible interfaces while ensuring signal integrity and compatibility in various computing and test environments.

Features

• Dual Female Connector Design: Enables direct connection between two female PCIe interfaces without adapter requirements
• Straight Through Configuration: Maintains standard Tx-Tx and Rx-Rx channel alignment for direct signal path continuity
• Precision Signal Integrity: Controlled impedance design ensures reliable performance at PCIe 3.0 data rates up to 8 GT/s per lane
• Enhanced Shielding: Multi-layer protection against electromagnetic interference maintains signal quality
• Secure Connection System: Robust female connectors with reliable mating mechanisms ensure stable connections
• Universal Compatibility: Supports connection between various PCIe 3.0 compatible female interfaces and test points
• Standard Compliance: Fully compliant with PCI-SIG PCIe 3.0 specifications for guaranteed interoperability

Specifications

• Connector Type: PCI Express 3.0 x8 Female to Female
• Wiring Configuration: Tx to Tx Straight Through (Standard Pinout)
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 64 Gbps (x8 lanes)
• Characteristic Impedance: 85? ±10%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 200mm, 300mm, 500mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• Test and Measurement Systems: Essential for connecting test equipment to device under test (DUT) with female interfaces
• System Integration: Facilitates connections between system components with female PCIe connectors
• Development Platforms: Supports prototyping and development requiring female-to-female connections
• Manufacturing Test Fixtures: Used in production test environments for device validation and quality assurance
• Research Laboratories: Ideal for academic and industrial research projects requiring standard PCIe connections
• Embedded Systems: Supports connections in embedded computing applications with female interfaces
• Debugging and Analysis: Provides reliable connections for system troubleshooting and signal analysis
• Custom Applications: Enables unique system configurations requiring female-to-female PCIe connectivity
