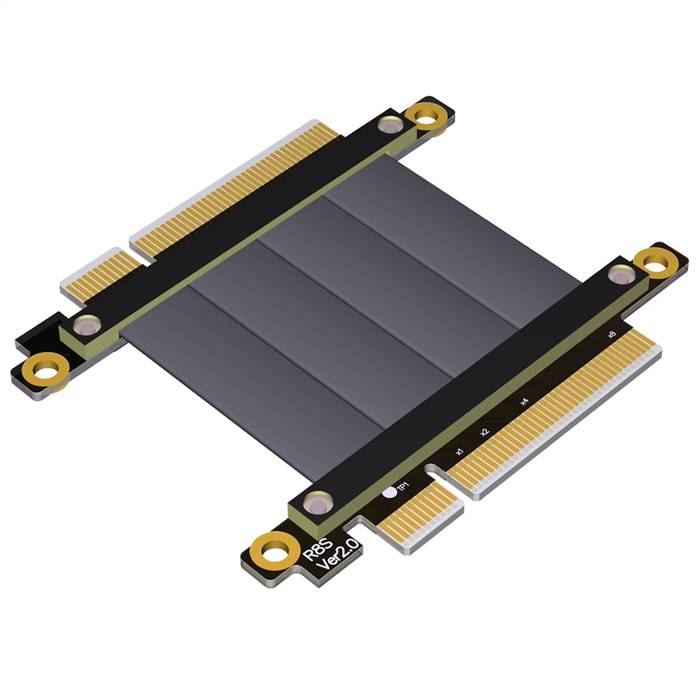

PCIe 3.0 x8 Tx to Tx Straight Through Jumper Cable, Male to Male

The PCIe 3.0 x8 Tx to Tx Straight Through Jumper Cable, Male to Male is a high-performance interconnect solution designed for reliable signal transmission in computing and testing environments. This cable features a standard straight-through wiring configuration that maintains the native transmitter-to-transmitter (Tx to Tx) and receiver-to-receiver (Rx to Rx) channel alignment between two male connectors. Engineered for PCIe 3.0 performance, this jumper cable ensures direct signal path continuity while providing dependable point-to-point connections for system integration, validation, and development applications requiring male-to-male interface compatibility.

Features

• Standard Straight Through Configuration: Maintains native Tx-Tx and Rx-Rx channel alignment for direct signal path continuity
• Male to Male Connector Design: Enables direct connection between two male PCIe interfaces or test points
• Precision Signal Integrity: Controlled impedance design ensures reliable performance at PCIe 3.0 data rates up to 8 GT/s per lane
• Full PCIe 3.0 Compatibility: Supports data rates up to 8 GT/s per lane, delivering total bandwidth of 64 Gbps
• Enhanced Shielding: Multi-layer protection against electromagnetic interference maintains signal quality
• Secure Connection Interface: High-quality male connectors with robust mating mechanisms ensure reliable connections
• Universal Application: Suitable for various testing, development, and system integration scenarios

Specifications

• Connector Type: PCI Express 3.0 x8 Male to Male
• Wiring Configuration: Tx to Tx Straight Through (Standard Pinout)
• Supported Standard: PCI-SIG PCIe 3.0 Base Specification
• Data Rate: 8.0 GT/s per lane (PCIe 3.0)
• Total Bandwidth: 64 Gbps (x8 lanes)
• Characteristic Impedance: 85? ±10%
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 200mm, 300mm, 500mm standard options
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• Contact Material: Gold-plated phosphor bronze

Applications

• System Integration Testing: Essential for verifying PCIe 3.0 system compatibility and performance
• Hardware Validation: Ideal for device testing and signal integrity verification in laboratory environments
• Development and Prototyping: Supports product development requiring standard male-to-male connections
• Manufacturing Test Systems: Used in production environments for functional testing and quality assurance
• Research and Development: Suitable for academic and industrial research projects involving PCIe technology
• Test Equipment Interfacing: Facilitates connections between test instruments and devices under test
• Debugging and Analysis: Provides reference connections for system troubleshooting and performance validation
• Custom Applications: Enables unique system configurations requiring direct male-to-male PCIe connectivity
