PCIe 4.0 M.2 Key A.E. to M.2 Key M NVMe Female Extension Cable

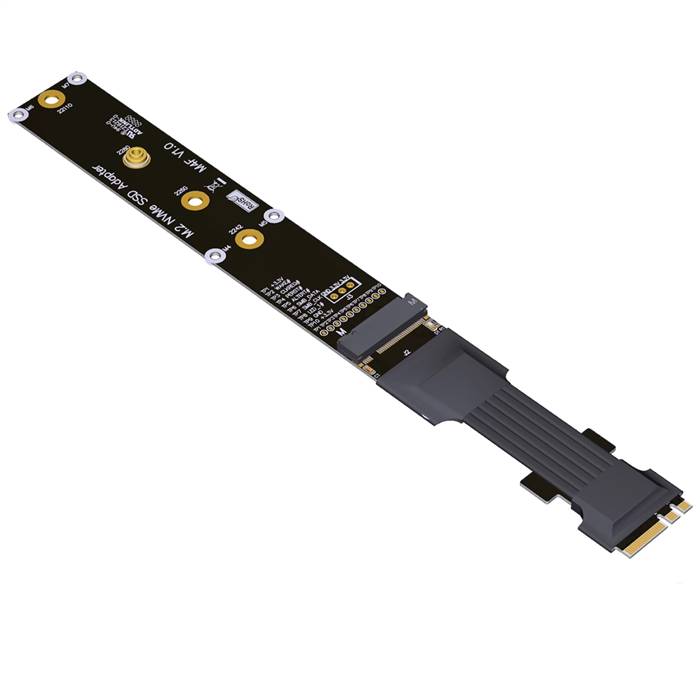

The PCIe 4.0 M.2 Key A.E. to M.2 Key M NVMe Female Extension Cable is a specialized high-speed connectivity solution designed to enable NVMe storage functionality through M.2 Key A+E slots. This innovative extension cable converts the limited PCIe x1 interface typically available in M.2 Key A+E slots (commonly used for wireless modules) to a full M.2 Key M interface suitable for NVMe storage devices. While the bandwidth is limited to PCIe x1 lane due to the host interface constraints, this solution provides a creative method for adding NVMe storage in systems where traditional M.2 Key M slots are unavailable or fully occupied. The flexible cable design allows for optimal SSD placement within the system chassis, facilitating better thermal management and physical organization.

Features

• Interface Conversion: Converts M.2 Key A+E to M.2 Key M for NVMe storage compatibility
• PCIe 4.0 x1 Performance: Supports single lane bandwidth at 16 GT/s data rates
• NVMe Storage Support: Enables connection of M.2 Key M NVMe SSDs through wireless slots
• Flexible Installation: Cable allows strategic SSD placement for optimal cooling and space utilization
• Signal Integrity: Maintains PCIe 4.0 signal quality through shielded cable construction
• Universal Compatibility: Works with various M.2 Key M NVMe SSDs in 2280 form factor
• Space Optimization: Provides additional storage options in space-constrained systems

Specifications

• Product Model: PCIe 4.0 M.2 Key A.E. to M.2 Key M NVMe Female Extension Cable
• Host Interface: M.2 Key A+E Male
• Target Interface: M.2 Key M Female (PCIe NVMe)
• Supported Form Factors: 2280 NVMe SSDs
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 16 Gbps total bandwidth for x1 lane)
• Supported Protocols: PCI Express 4.0, NVMe 1.4
• Lane Configuration: PCIe x1 lane (limited by Key A+E interface)
• Cable Type: Shielded flexible cable assembly
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Power Delivery: 3.3V from host slot

Applications

• Storage Expansion: Adding NVMe storage to systems with available M.2 Key A+E slots
• Compact System Builds: Small form factor computers requiring creative storage solutions
• Secondary Storage: Additional NVMe drives in systems with limited M.2 Key M slots
• Prototype Development: Testing and validation of NVMe devices through alternative interfaces
• Legacy System Upgrades: Modernizing older systems with NVMe capability
• OEM Solutions: Custom storage implementations for specific product requirements
• Backup Storage: Dedicated backup drives connected through wireless interfaces
• Educational Projects: Demonstrating interface conversion and storage technologies
