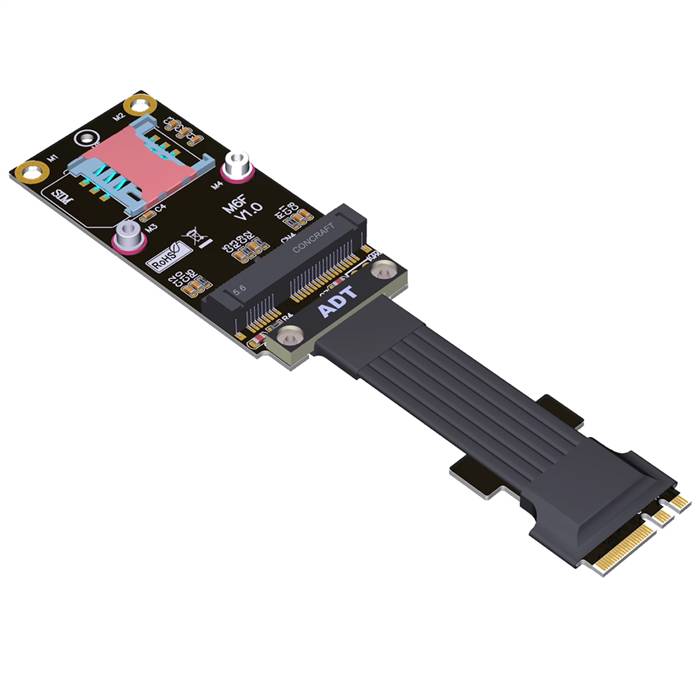

PCIe 4.0 M.2 Key A.E. to Mini PCIe Female Extension Cable

The PCIe 4.0 M.2 Key A.E. to Mini PCIe Female Extension Cable is a specialized interface conversion solution designed to enable Mini PCIe device connectivity through modern M.2 Key A+E slots. This adapter cable converts the PCIe and USB signals available from an M.2 Key A+E interface to a standard Mini PCIe female connector, providing a bridge between contemporary motherboard designs and legacy Mini PCIe expansion devices. The solution supports both the PCIe x1 connection for primary functionality and USB 2.0 for auxiliary features, making it compatible with various Mini PCIe cards including wireless modules, SSD controllers, and other expansion devices. This extension cable is particularly valuable for system integrators, developers, and users needing to utilize Mini PCIe cards in modern systems that have replaced Mini PCIe slots with M.2 interfaces.

Features

• M.2 Key A+E Interface: Utilizes modern M.2 A+E key slot for host connectivity
• Mini PCIe Female Connector: Standard Mini PCIe 52-pin female interface for legacy devices
• PCIe 4.0 Compatibility: Supports PCIe x1 lane at 16 GT/s data rates
• Dual Signal Support: Provides both PCIe x1 and USB 2.0 connectivity
• Flexible Cable Design: Allows optimal positioning of Mini PCIe devices
• Universal Compatibility: Works with various Mini PCIe expansion cards
• Space-Efficient Solution: Enables Mini PCIe functionality without dedicated slot

Specifications

• Product Model: PCIe 4.0 M.2 Key A.E. to Mini PCIe Female Extension Cable
• Host Interface: M.2 Key A+E Male
• Target Interface: Mini PCIe Female (52-pin)
• Data Transfer Rate: Up to 16 GT/s for PCIe x1 lane (approximately 16 Gbps total bandwidth)
• Supported Protocols: PCI Express 4.0, USB 2.0
• Lane Configuration: PCIe x1 lane
• Cable Type: Shielded flexible cable assembly
• Cable Length: 15cm, 25cm, 35cm
• Operating Temperature: 0°C to +70°C
• Power Delivery: 3.3V from M.2 slot
• Compatibility: Windows, Linux, macOS

Applications

• Legacy Device Integration: Using Mini PCIe cards in modern systems with M.2 interfaces
• Wireless Connectivity: Installing Mini PCIe WiFi, Bluetooth, or cellular cards
• Embedded Systems: Industrial computers requiring Mini PCIe expansion in modern platforms
• Development and Testing: Prototyping and validation of Mini PCIe devices
• Custom PC Builds: Unique system configurations needing Mini PCIe functionality
• Retrofit Solutions: Modernizing older Mini PCIe devices for use in new systems
• OEM Applications: Custom solutions for system manufacturers requiring interface conversion
• Educational Projects: Learning and experimentation with different interface technologies
