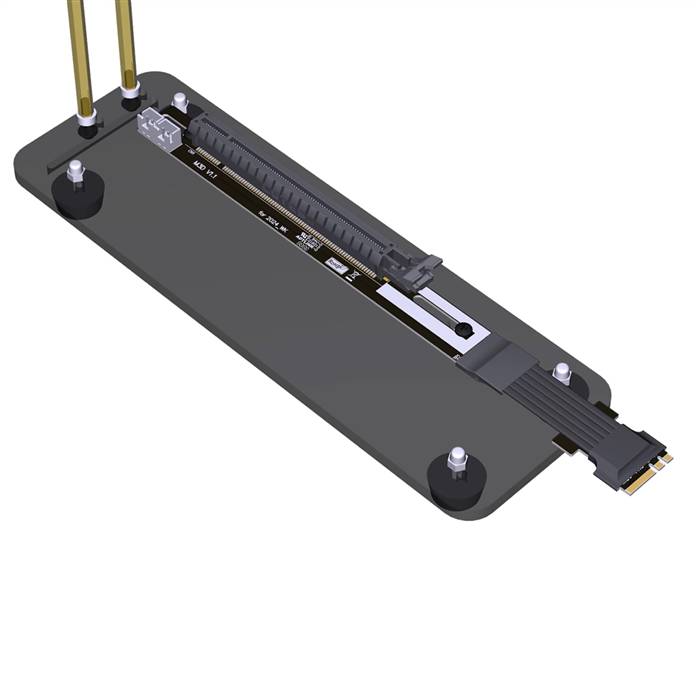

M.2 Key A.E. to PCIe 4.0 x16 Female Up R/A Extension Cable with Foot Base

The M.2 Key A.E. to PCIe 4.0 x16 Female Up R/A Extension Cable with Foot Base is a comprehensive connectivity solution designed to transform limited M.2 Key A+E interfaces into fully functional PCIe 4.0 x16 expansion capabilities. This innovative adapter system combines interface conversion with mechanical stabilization, featuring a dedicated foot base that provides secure mounting and optimal positioning for connected expansion cards. The up right-angle PCIe x16 connector orientation facilitates efficient cable routing and card installation in various system configurations. By utilizing the PCIe lanes available through the M.2 Key A+E interface, this solution enables the connection of standard PCIe cards to systems that lack traditional expansion slots but have available M.2 interfaces, making it ideal for compact systems, specialized workstations, and custom computing applications.

Features

• M.2 Key A.E. Interface: Utilizes M.2 Key A+E slot for host connectivity
• PCIe 4.0 x16 Female Up R/A: Up right-angle PCIe x16 slot for expansion cards
• Integrated Foot Base: Provides mechanical stability and secure mounting
• PCIe 4.0 Performance: Supports available PCIe lanes at 16 GT/s data rates
• Space-Optimized Design: Up right-angle connector with foot base saves space
• Secure Installation: Foot base ensures stable operation of connected cards
• Flexible Configuration: Enables PCIe card usage in systems without traditional slots

Specifications

• Product Model: M.2 Key A.E. to PCIe 4.0 x16 Female Up R/A Extension Cable with Foot Base
• Host Interface: M.2 Key A+E Male
• Target Interface: PCIe 4.0 x16 Female Up Right-Angle
• Data Transfer Rate: Up to 16 GT/s per lane (bandwidth limited by available M.2 lanes)
• Supported Protocols: PCI Express 4.0
• Lane Configuration: PCIe x1 or x2 lanes (depending on host M.2 slot capability)
• Foot Base Material: Durable ABS plastic with anti-slip padding
• Cable Length: 25cm, 35cm, 45cm
• Operating Temperature: 0°C to +70°C
• Connector Orientation: Up right-angle (90-degree upward)
• Power Delivery: Provides necessary power to connected PCIe devices

Applications

• Compact System Expansion: Adding PCIe card functionality to small form factor systems
• Workstation Upgrades: Professional workstations requiring additional expansion capabilities
• Custom PC Builds: Unique system configurations with specific card placement requirements
• Prototype Development: Testing and validation of PCIe devices in various configurations
• Embedded Systems: Industrial applications requiring stable PCIe card mounting
• Network Appliances: Specialized networking equipment with M.2 interfaces
• OEM Solutions: Custom implementations for specific product requirements
• Educational Environments: Learning about interface conversion and expansion technologies
