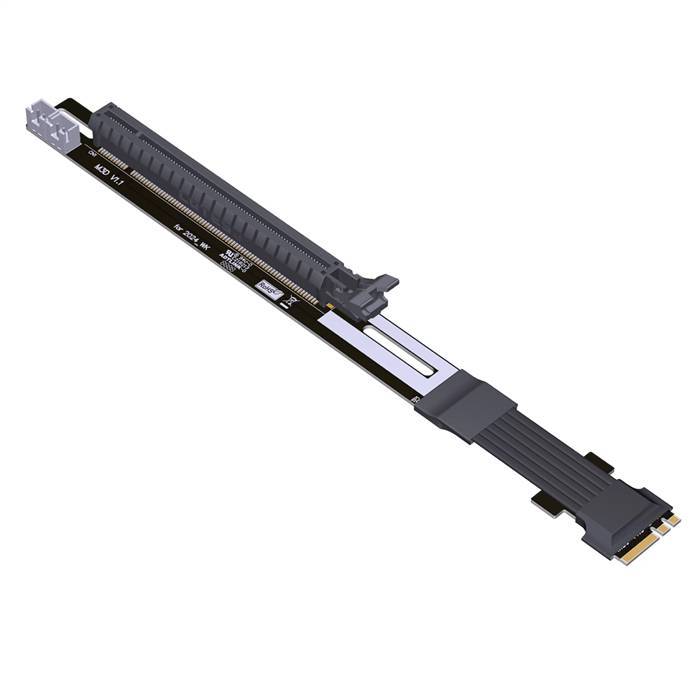

M.2 Key A.E. to PCIe 4.0 x16 Female Up R/A Extension Cable

The M.2 Key A.E. to PCIe 4.0 x16 Female Up R/A Extension Cable is an innovative interface conversion solution designed to enable full-size PCIe expansion card connectivity through M.2 Key A+E interfaces. This adapter cable transforms the limited PCIe lanes available in M.2 Key A+E slots into a standard PCIe 4.0 x16 female connector with an up right-angle orientation. While the actual lane configuration is limited to the available lanes in the host M.2 interface (typically x1 or x2), the physical x16 connector allows installation of standard expansion cards. The up right-angle design facilitates optimal cable routing and card positioning in various system configurations, making this solution ideal for compact systems, specialized workstations, and custom computing applications where traditional PCIe slots are unavailable.

Features

• M.2 Key A.E. Interface: Utilizes M.2 Key A+E slot for host connectivity
• PCIe 4.0 x16 Female Up R/A: Up right-angle PCIe x16 slot for expansion cards
• PCIe 4.0 Compatibility: Supports available PCIe lanes at 16 GT/s data rates
• Space-Optimized Design: Up right-angle connector saves space in compact systems
• Flexible Configuration: Enables PCIe card usage in systems without traditional slots
• Universal Compatibility: Works with various PCIe 4.0 expansion cards
• Reliable Connection: Quality connectors ensure stable operation

Specifications

• Product Model: M.2 Key A.E. to PCIe 4.0 x16 Female Up R/A Extension Cable
• Host Interface: M.2 Key A+E Male
• Target Interface: PCIe 4.0 x16 Female Up Right-Angle
• Data Transfer Rate: Up to 16 GT/s per lane (bandwidth limited by available M.2 lanes)
• Supported Protocols: PCI Express 4.0
• Lane Configuration: PCIe x1 or x2 lanes (depending on host M.2 slot capability)
• Cable Type: Shielded flexible cable assembly
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Connector Orientation: Up right-angle (90-degree upward)
• Power Delivery: Provides necessary power to connected PCIe devices

Applications

• Compact System Expansion: Adding PCIe card functionality to small form factor systems
• Workstation Upgrades: Professional workstations requiring additional expansion capabilities
• Custom PC Builds: Unique system configurations with specific card placement requirements
• Prototype Development: Testing and validation of PCIe devices in various configurations
• Embedded Systems: Industrial applications requiring PCIe expansion through M.2 interfaces
• Network Appliances: Specialized networking equipment with M.2 interfaces
• OEM Solutions: Custom implementations for specific product requirements
• Educational Projects: Learning about interface conversion and expansion technologies
