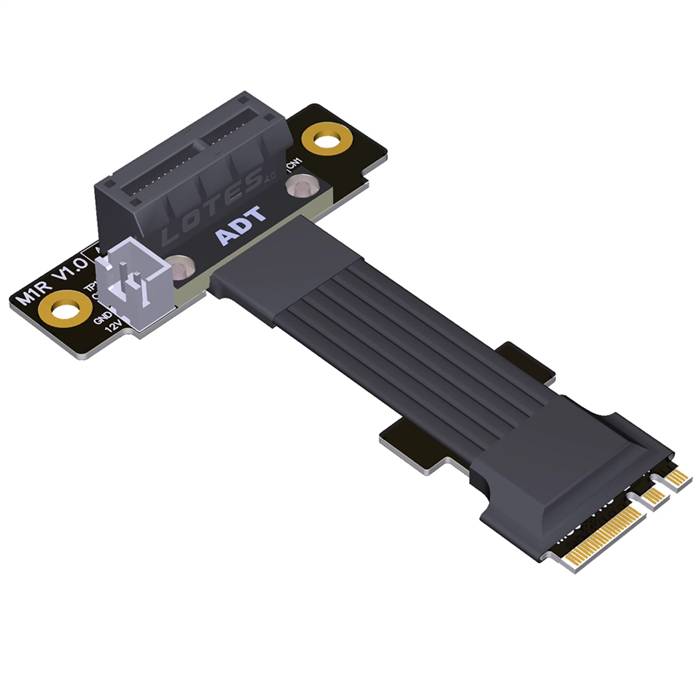

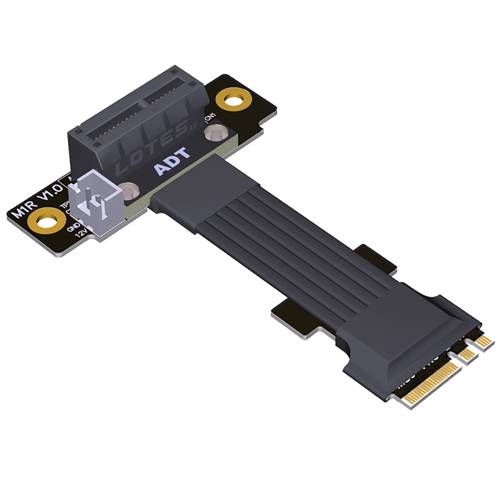

M.2 Key A.E. to PCIe 4.0 x1 Female Down R/A Extension Cable

The M.2 Key A.E. to PCIe 4.0 x1 Female Down R/A Extension Cable is a specialized interface conversion solution designed to enable single-lane PCIe expansion through M.2 Key A+E interfaces with a downward-facing orientation. This adapter cable converts the PCIe x1 lane typically available in M.2 Key A+E slots into a standard PCIe 4.0 x1 female connector with a down right-angle configuration. The downward-facing orientation addresses specific chassis layout requirements where traditional card orientation would cause mechanical interference or where space constraints demand a low-profile installation. This solution is particularly valuable for connecting various x1 PCIe devices such as sound cards, serial port adapters, or other peripherals in compact systems where traditional expansion slots are unavailable but M.2 interfaces are present.

Features

• M.2 Key A.E. Interface: Utilizes M.2 Key A+E slot for host connectivity
• PCIe 4.0 x1 Female Down R/A: Down right-angle PCIe x1 slot for expansion cards
• Downward Orientation: 90-degree downward-facing connector for specific layout requirements
• PCIe 4.0 Compatibility: Supports single lane bandwidth at 16 GT/s data rates
• Space-Optimized Design: Down right-angle connector minimizes vertical space requirements
• Targeted Application: Ideal for various PCIe x1 expansion cards and peripherals
• Flexible Implementation: Enables PCIe card usage in systems without traditional x1 slots

Specifications

• Product Model: M.2 Key A.E. to PCIe 4.0 x1 Female Down R/A Extension Cable
• Host Interface: M.2 Key A+E Male
• Target Interface: PCIe 4.0 x1 Female Down Right-Angle
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 16 Gbps total bandwidth)
• Supported Protocols: PCI Express 4.0
• Lane Configuration: PCIe x1 lane
• Cable Type: Shielded flexible cable assembly
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Connector Orientation: Down right-angle (90-degree downward)
• Power Delivery: Provides necessary power to connected PCIe devices

Applications

• Low-Profile System Expansion: Adding PCIe x1 card functionality to systems with minimal vertical clearance
• Compact Workstations: Professional workstations requiring downward-facing card installation for peripheral connectivity
• Custom Chassis Layouts: Systems where downward card orientation solves mechanical constraints
• Peripheral Expansion: Installing sound cards, serial port adapters, and other x1 peripherals
• Embedded Systems: Industrial applications with specific orientation requirements for peripheral cards
• Prototype Development: Testing and validation of PCIe x1 devices in downward orientation
• OEM Solutions: Custom implementations for products with specific mechanical constraints
• Network Appliances: Adding specialized connectivity cards in compact network equipment
