PCIe 4.0 M.2 NVMe Key-M Male to OCulink SFF-8611 SFF-8612 Extension Cable

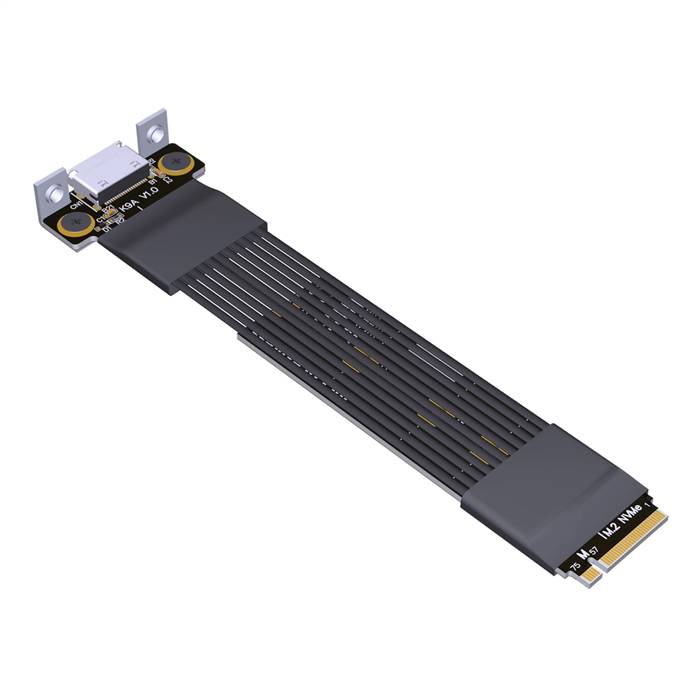

The PCIe 4.0 M.2 NVMe Key-M Male to OCuLink SFF-8611/SFF-8612 Extension Cable is a high-performance interconnect solution designed to externalize the full bandwidth of a modern M.2 slot. This cable assembly creates a direct bridge from an internal PCIe 4.0 x4 M.2 Key-M connector to an external OCuLink SFF-8611 (4i) or SFF-8612 (8i) interface, providing a robust and secure high-speed connection for external peripherals. Supporting data rates up to 16 GT/s per lane, it delivers substantial bandwidth suitable for demanding storage and computational applications. This cable-only version offers maximum flexibility for integration into custom chassis, existing systems with pre-configured openings, or open-air test benches where a standard PCI bracket is not required. It is an ideal solution for users seeking to connect external NVMe storage arrays, GPU enclosures, or other high-speed devices while utilizing the readily available M.2 slot on their motherboard.

Features

• High-Speed Data Transfer: Fully compliant with PCIe 4.0 specifications, supporting data rates up to 16 GT/s per lane for high-bandwidth applications.
• Direct Interface Conversion: Provides a direct path from an internal M.2 Key-M (PCIe) slot to an external OCuLink SFF-8611/SFF-8612 port, enabling flexible external device connectivity.
• Full x4 Lane Utilization: Leverages all four PCIe lanes from the host M.2 slot, providing a full-bandwidth x4 link to the connected peripheral.
• Optimized Signal Integrity: Engineered with quality shielded cabling and precise impedance matching to maintain signal quality and ensure stable data transmission at high speeds.
• Secure Locking Connector: The OCuLink connector features a robust locking mechanism to prevent accidental disconnection, ensuring a stable link for critical data transfers.
• Flexible Installation: The cable-only design allows for versatile integration into custom enclosures, open-frame systems, or scenarios where a standard PCI bracket is not applicable.

Specifications

• Host Connector: M.2 Key-M (PCIe) Male, Socket 3
• Target Connector: OCuLink SFF-8611 (4i) or SFF-8612 (8i) Female
• Supported Standard: PCI Express 4.0
• Data Rate: Up to 16 GT/s per lane
• Total Bandwidth: Approx. 64 Gbps (8 GB/s) bidirectional for a x4 configuration
• Cable Length: Standard 30cm, 50cm, and 80cm options
• Impedance: 85? ±5% differential
• Shielding: Multi-layer shielding with individual coaxial pairs and an overall braid for effective EMI/RFI protection
• Operating Temperature: 0°C to +70°C
• Note: This is a cable-only product and does not include a PCI slot bracket.

Applications

• Custom PC Builds: Integrates into bespoke computer chassis for connecting external GPU enclosures or high-speed storage at PCIe 4.0 speeds.
• External Storage Arrays: Connects to external NVMe drive enclosures for building fast, scalable storage solutions for media production and data analysis.
• Test and Development Platforms: Serves as a flexible interface for benchtop testing and validation of PCIe 4.0 devices in laboratory environments.
• Server and Workstation Expansion: Provides a high-speed external port in servers and workstations for connecting specialized peripherals without consuming a standard expansion slot.
• High-Performance Computing: Facilitates fast data links in computational setups for scientific research and simulation workloads.
• DIY and Enthusiast Projects: Enables tech enthusiasts to create custom high-speed external connectivity solutions for their unique computing setups.
