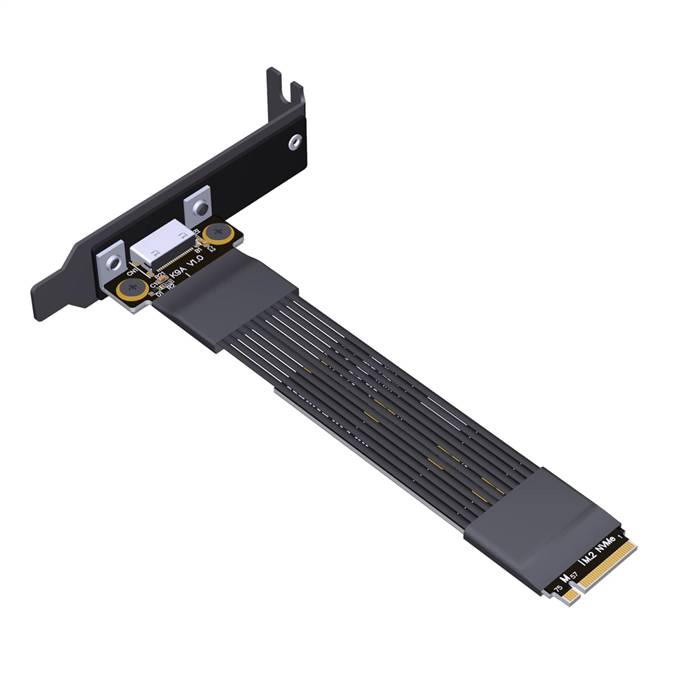

PCIe 4.0 M.2 NVMe Key-M Male to OCulink SFF-8611 SFF-8612 Extension Cable with Half-height Bracket

The PCIe 4.0 M.2 NVMe Key-M Male to OCuLink SFF-8611/SFF-8612 Extension Cable with Half-height Bracket is a specialized high-speed adapter designed for compact and space-constrained computing environments. This cable assembly effectively externalizes the high-bandwidth capabilities of an internal M.2 NVMe slot by converting it to an OCuLink SFF-8611 (4i) or SFF-8612 (8i) interface, fully compliant with the PCIe 4.0 standard. The defining feature of this model is its half-height bracket, which allows for seamless integration into slim-line chassis, small form factor PCs, and 1U server racks where a full-height bracket would not fit. This solution provides a robust and secure external port for connecting high-performance peripherals such as external NVMe storage arrays or specialized accelerator cards, delivering significant bandwidth for data-intensive tasks while maintaining a minimal physical footprint. It is an ideal expansion solution for compact workstations, home theater PCs, and dense server configurations.

Features

• High-Speed PCIe 4.0 Performance: Supports data transfer rates up to 16 GT/s per lane, providing high bandwidth for demanding external devices.
• Compact Form Factor Bracket: Includes a half-height bracket specifically designed for installation in slim chassis, mini-ITX systems, and 1U server enclosures.
• External OCuLink Interface: Converts an internal M.2 Key-M slot to an external OCuLink SFF-8611/SFF-8612 port, enabling flexible external connectivity.
• Full Four-Lane Bandwidth: Utilizes all four PCIe lanes from the host M.2 slot, ensuring a full x4 link with no bandwidth reduction.
• Superior Signal Integrity: Engineered with quality coaxial cables and precise impedance control to maintain signal quality and ensure stable data transmission at high speeds.
• Secure Locking Connection: The OCuLink connector features a robust locking mechanism to prevent accidental disconnection, crucial for data integrity in mission-critical applications.

Specifications

• Host Connector: M.2 Key-M (PCIe) Male, Socket 3
• Target Connector: OCuLink SFF-8611 (4i) or SFF-8612 (8i) Female
• Supported Standard: PCI Express 4.0
• Data Rate: Up to 16 GT/s per lane
• Total Bandwidth: Approx. 64 Gbps (8 GB/s) bidirectional for a x4 configuration
• Cable Length: Standard 25cm and 40cm options
• Impedance: 85? ±5% differential
• Shielding: Multi-layer shielding with individual coaxial pairs and an overall braid for effective EMI suppression
• Operating Temperature: 0°C to +70°C
• Included Accessory: Half-height PCI Slot Bracket

Applications

• Small Form Factor PC Expansion: Enables high-speed external connectivity for compact desktops and HTPCs, allowing for the use of external storage or accelerator cards.
• 1U Server Connectivity: Provides a critical high-speed external port for storage or computational accelerators in dense, rack-mounted server environments.
• Portable Workstation Solutions: Ideal for compact workstations used in field production, video editing, and engineering that require high-speed external storage or GPU acceleration.
• Embedded Systems Integration: Used in industrial computing, digital signage, and kiosk systems that require a reliable, high-speed external data link in a compact form factor.
• Space-Constrained Data Acquisition: Suitable for test and measurement setups in laboratory environments where rack space is limited but high-speed data transfer is required.
• Custom Mini-PC Builds: Allows DIY builders and system integrators to add a professional-grade high-speed external port to their custom small form factor projects.
