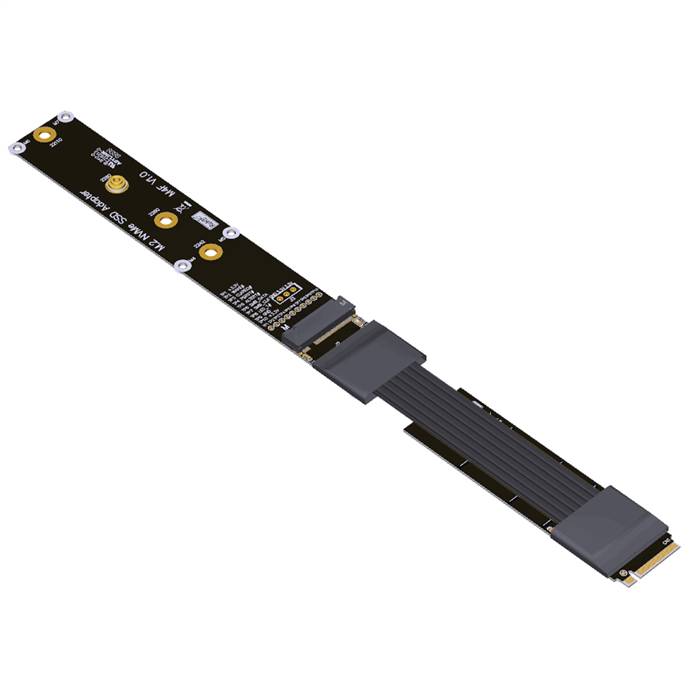

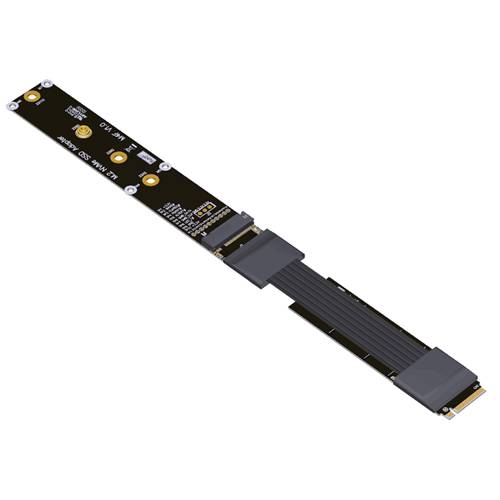

PCIe 4.0 M.2 NVMe Key-M Male to Female SSD Extension Cable

The PCIe 4.0 M.2 NVMe Key-M Male to Female SSD Extension Cable is a high-performance connectivity solution designed to extend the physical reach of PCIe 4.0 NVMe storage devices. This cable enables flexible positioning of M.2 SSDs within computer systems, facilitating improved thermal management and optimal mechanical integration. By maintaining the high-speed signal integrity required for PCIe 4.0 protocols, this extension solution allows users to maximize storage performance while achieving better cooling and space utilization. Ideal for system integrators, PC enthusiasts, and data center applications, this cable provides both configuration flexibility and uncompromised storage bandwidth.

Features

• PCIe 4.0 Performance: Supports data transfer rates up to 16 GT/s per lane
• Universal Compatibility: Works with all M.2 NVMe SSDs including 2230, 2242, 2260, 2280, and 22110 form factors
• Enhanced Signal Integrity: Precision engineering minimizes signal degradation and maintains data integrity
• Thermal Management: Enables strategic SSD placement for improved airflow and cooling efficiency
• Robust Construction: High-quality materials and connectors ensure reliable operation in demanding environments
• Flexible Installation: Slim and flexible cable design allows for easy routing in space-constrained chassis
• Secure Connection: Positive-locking mechanism prevents accidental disconnection

Specifications

• Product Model: PCIe 4.0 M.2 NVMe Key-M Male to Female Extension Cable
• Host Connector: M.2 Key-M Male
• Device Connector: M.2 Key-M Female
• Interface Support: PCIe 4.0 x4 lanes
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 64 Gbps total bandwidth)
• Supported Protocols: NVMe 1.4
• Cable Type: Shielded twisted pair cable
• Cable Length: 15cm, 25cm, 35cm
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm
• Power Delivery: Supports 3.3V power distribution to SSD

Applications

• Custom PC Building: Flexible SSD placement for optimized system layouts and aesthetics
• Server Configuration: Extending storage connectivity in rack server environments
• Workstation Expansion: Adding high-speed storage to creative and engineering workstations
• Thermal Optimization: Relocating SSDs away from heat sources to prevent thermal throttling
• Test and Development: Prototyping and validation of storage configurations
• Data Center Infrastructure: High-density storage deployment solutions
• System Integration: Custom computing applications requiring specific component placement
• OEM Solutions: Integration into server and storage manufacturing processes
