PCIe 4.0 M.2 NVMe Key-M Male to U.3 SFF-TA-1001 SSD Extension Cable

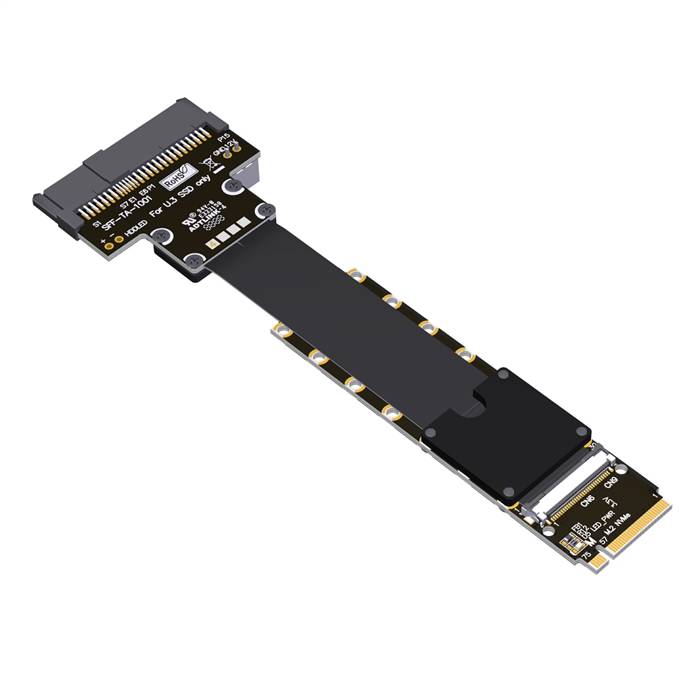

The PCIe 4.0 M.2 NVMe Key-M Male to U.3 SFF-TA-1001 SSD Extension Cable is a specialized interface adapter designed to enable compatibility between standard consumer motherboards and enterprise-grade U.3 storage devices. This cable provides a crucial bridge from the common M.2 NVMe slot to the SFF-TA-1001 connector, which is the standardized interface for U.3 SSDs. Supporting the PCIe 4.0 standard with data rates up to 16 GT/s per lane, this solution delivers high-performance connectivity suitable for demanding storage applications. The U.3 interface is uniquely capable of supporting SAS, SATA, and NVMe protocols through a single connector, offering exceptional flexibility. This extension cable is an invaluable tool for IT professionals, storage administrators, and enthusiasts who need to test, evaluate, or deploy U.3 SSDs in environments without native backplane support, such as development workstations, test benches, or custom storage servers.

Features

• Enterprise Interface Conversion: Adapts a standard M.2 Key-M male connector to a U.3 SFF-TA-1001 female connector, enabling the use of enterprise U.3 SSDs with consumer and workstation motherboards.
• Tri-Mode Protocol Support: Through the U.3 interface, provides compatibility with NVMe, SAS, and SATA storage protocols from a single unified connector.
• High-Speed PCIe 4.0 Performance: Supports data transfer rates up to 16 GT/s per lane, delivering the full bandwidth potential of connected NVMe U.3 devices.
• Full x4 Lane Utilization: Utilizes all four PCIe lanes from the host M.2 slot, ensuring a complete x4 link to the connected SSD without bandwidth compromise.
• Enhanced Signal Integrity: Precision-engineered with quality shielded cabling and controlled impedance to maintain signal quality and ensure reliable data transmission at high speeds.
• Robust Connector System: Features the enterprise-grade SFF-TA-1001 connector with a secure latching mechanism designed for repeated insertion cycles and stable connections.

Specifications

• Host Connector: M.2 Key-M (PCIe) Male, Socket 3
• Target Connector: U.3 SFF-TA-1001 Female
• Supported Standard: PCI Express 4.0, NVMe 1.4, SAS 4.0, SATA 3.0
• Data Rate: Up to 16 GT/s per lane (PCIe), 24 Gbps (SAS), 6 Gbps (SATA)
• Total Bandwidth: Approx. 64 Gbps (8 GB/s) bidirectional for a PCIe x4 configuration
• Cable Length: Standard 15cm and 25cm options
• Impedance: 85? ±5% differential
• Shielding: Multi-layer foil and braided shielding for effective EMI/RFI protection
• Operating Temperature: 0°C to +70°C
• Protocol Auto-Negotiation: Supports automatic protocol selection between NVMe, SAS, and SATA based on the connected drive.

Applications

• Enterprise SSD Testing and Validation: Enables storage administrators and developers to test U.3 SSDs in a desktop environment for qualification and performance analysis.
• Hybrid Storage Workstations: Allows content creators and engineers to utilize high-capacity, high-reliability U.3 enterprise drives in their workstations for demanding projects.
• Data Center Prototyping: Useful for prototyping storage configurations and validating U.3 drive compatibility before deployment in server environments.
• IT Infrastructure Evaluation: Provides a method for IT professionals to evaluate U.3 technology and plan future storage infrastructure upgrades.
• Storage Enthusiast Projects: Enables technology enthusiasts to experiment with enterprise U.3 drives in custom PC builds and home lab servers.
• Backup and Archive Solutions: Suitable for building high-performance backup servers that can leverage the capacity and reliability of U.3 SSDs.
• Benchmarking and Comparison Testing: Serves as an essential tool for hardware reviewers conducting comparative performance analysis between different U.3 drive models and protocols.
