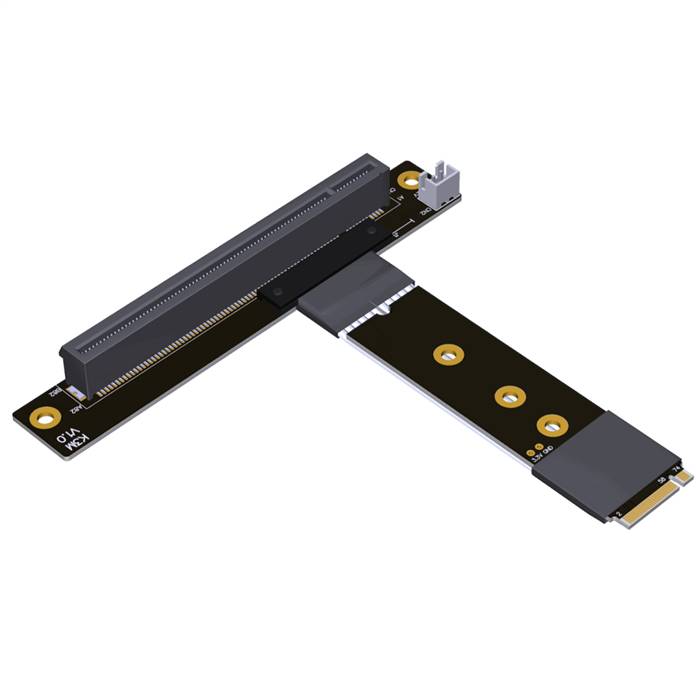

M.2 M-key NVMe Male to PCIe 4.0 x16 Female Up R/A Extension Cable, 85-ohm Low Impedance

The M.2 M-key NVMe Male to PCIe 4.0 x16 Female Up R/A Extension Cable is a high-performance adapter solution designed to convert a standard M.2 M-key NVMe interface into a full-bandwidth PCIe 4.0 x16 slot with an upward-facing orientation. This precision-engineered cable enables flexible GPU and expansion card installation in various system configurations while maintaining excellent signal integrity. Featuring 85-ohm low impedance characteristics, the solution ensures reliable performance at PCIe 4.0 data rates, making it ideal for custom computer builds, compact systems, and applications where optimal component placement and thermal management are crucial for system performance.

Features

• M.2 M-key Compatibility: Designed specifically for standard M-key NVMe interfaces
• Up Right-Angle PCIe Slot: 90-degree upward-facing PCIe x16 connector for optimal card orientation
• PCIe 4.0 x16 Performance: Full lane bandwidth support at 16 GT/s data rates
• Precision 85-Ohm Impedance: Optimized signal integrity for high-speed data transmission
• High-Speed Signal Integrity: Engineered for minimal signal degradation at PCIe 4.0 frequencies
• Space-Optimized Design: Enables flexible GPU installation in space-constrained environments
• Enhanced Thermal Management: Upward orientation facilitates improved airflow around graphics cards

Specifications

• Product Model: M.2 M-key NVMe Male to PCIe 4.0 x16 Female Up R/A Extension Cable
• Host Connector: M.2 M-key Male
• Device Connector: PCIe 4.0 x16 Female Up Right-Angle
• Interface Support: PCIe 4.0 x16
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 256 Gbps total bandwidth)
• Supported Protocols: PCI Express 4.0, NVMe
• Characteristic Impedance: 85 ohms ±5%
• Cable Type: Shielded flexible cable assembly
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Insertion Loss: Less than -2.0dB at 8GHz
• Return Loss: Better than -15dB at 8GHz
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• Custom Gaming Rigs: Flexible GPU placement for optimized system layouts and cooling
• Small Form Factor Builds: Adding high-performance graphics to compact computer systems
• Workstation Expansion: Professional graphics capability in space-constrained environments
• Test and Development: Graphics card validation and compatibility testing
• Mining Configurations: Multi-GPU setups utilizing upward-facing card orientations
• OEM Solutions: Custom system integration for specific client requirements
• Server Applications: Specialized server configurations requiring upward GPU orientation
• Prototype Systems: Experimental computing configurations with unique layout requirements
