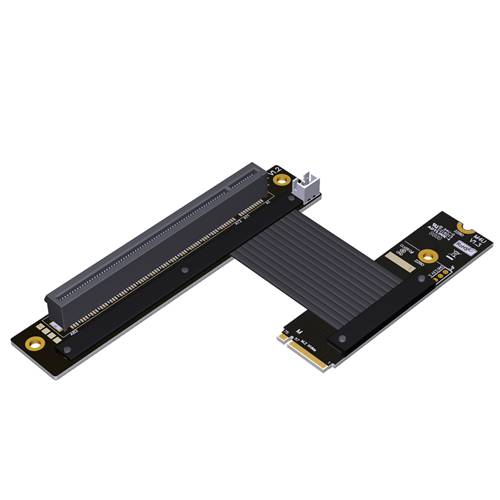

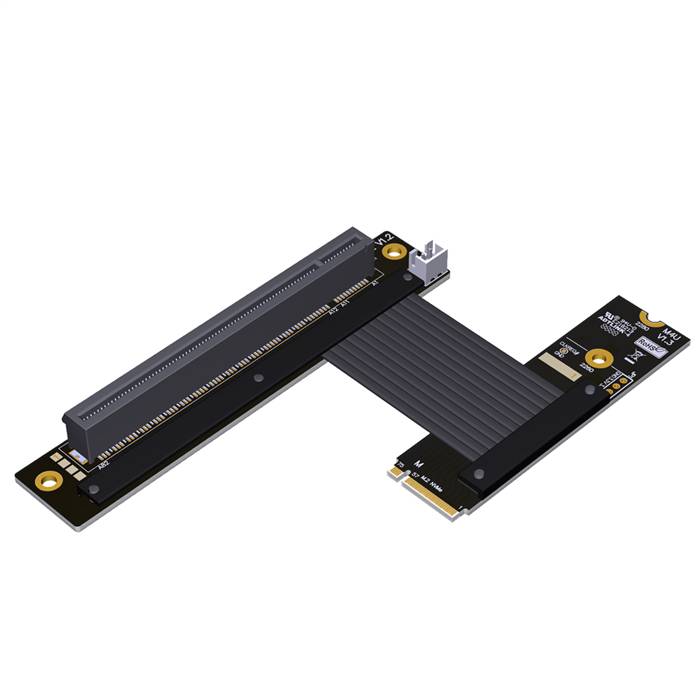

M.2 M-key NVMe Male to PCIe 4.0 x16 Female Up R/A Extension Cable

The M.2 M-key NVMe Male to PCIe 4.0 x16 Female Up R/A Extension Cable is a specialized adapter solution designed to convert a standard M.2 M-key NVMe interface into a full-bandwidth PCIe 4.0 x16 slot with an upward-facing orientation. This precision-engineered cable enables flexible GPU and expansion card installation in various system configurations while maintaining signal integrity. The upward right-angle PCIe connector provides optimal clearance and installation flexibility, making it ideal for custom computer builds, compact systems, and applications where space optimization and thermal management are critical considerations for overall system performance.

Features

• M.2 M-key Compatibility: Designed specifically for standard M-key NVMe interfaces
• Up Right-Angle PCIe Slot: 90-degree upward-facing PCIe x16 connector for optimal card orientation
• PCIe 4.0 x16 Performance: Full lane bandwidth support at 16 GT/s data rates
• High-Speed Signal Integrity: Engineered for minimal signal degradation at PCIe 4.0 frequencies
• Space-Optimized Design: Enables flexible GPU installation in space-constrained environments
• Enhanced Thermal Management: Upward orientation facilitates improved airflow around graphics cards
• Universal Compatibility: Supports various graphics cards and standard M.2 NVMe interfaces

Specifications

• Product Model: M.2 M-key NVMe Male to PCIe 4.0 x16 Female Up R/A Extension Cable
• Host Connector: M.2 M-key Male
• Device Connector: PCIe 4.0 x16 Female Up Right-Angle
• Interface Support: PCIe 4.0 x16
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 256 Gbps total bandwidth)
• Supported Protocols: PCI Express 4.0, NVMe
• Cable Type: Shielded flexible cable
• Cable Length: 15cm, 25cm, 35cm
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

Applications

• Small Form Factor Builds: Adding high-performance graphics to compact computer systems
• Custom Gaming Rigs: Flexible GPU placement for optimized system layouts and cooling
• Workstation Expansion: Professional graphics capability in space-constrained environments
• Test and Development: Graphics card validation and compatibility testing
• Mining Configurations: Multi-GPU setups utilizing upward-facing card orientations
• OEM Solutions: Custom system integration for specific client requirements
• Server Applications: Specialized server configurations requiring upward GPU orientation
• Prototype Systems: Experimental computing configurations with unique layout requirements
