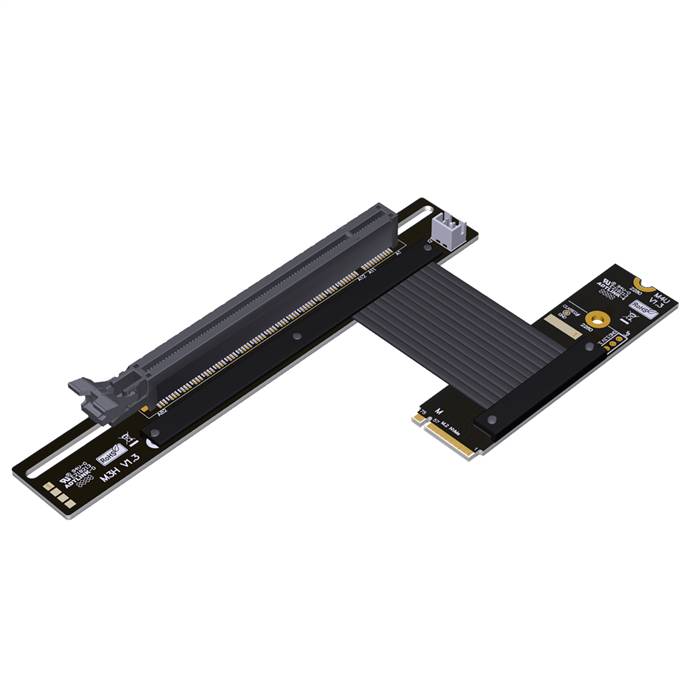

M.2 M-key NVMe Male to PCIe 4.0 x16 Female Up R/A Extension Cable with Lock

The M.2 M-key NVMe Male to PCIe 4.0 x16 Female Up R/A Extension Cable with Lock is a high-reliability adapter solution engineered for secure and flexible system integration. This cable converts a standard M.2 M-key NVMe slot into a full-bandwidth PCIe 4.0 x16 interface with an upward-facing right-angle orientation and an integrated locking mechanism. Designed with precision impedance characteristics, it ensures superior signal integrity at high data rates. The innovative locking feature guarantees a secure connection, making it ideal for mission-critical applications, high-vibration environments, and custom builds where both maximum performance and absolute connection reliability are paramount.

Features

• Secure Locking Mechanism: Integrated positive lock system prevents accidental disconnection in demanding environments.
• Up Right-Angle PCIe Slot: 90-degree upward-facing PCIe x16 connector for optimal GPU orientation and improved airflow.
• PCIe 4.0 x16 Performance: Delivers full x16 lane bandwidth supporting data rates.
• M.2 M-key Host Interface: Designed for standard M-key NVMe slots, ensuring broad compatibility.
• Precision Impedance Control: Maintains excellent signal integrity and minimizes signal degradation for PCIe 4.0 applications.
• Robust Construction: Shielded cable assembly and durable connectors ensure long-term reliability.
• Space-Efficient Design: The right-angle configuration solves clearance issues in compact and high-density systems.

Specifications

• Product Model: M.2 M-key NVMe Male to PCIe 4.0 x16 Female Up R/A Extension Cable with Lock
• Host Connector: M.2 M-key Male with Lock
• Device Connector: PCIe 4.0 x16 Female Up Right-Angle with Lock
• Interface Support: PCIe 4.0 x16
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 256 Gbps total bandwidth)
• Supported Protocols: PCI Express 4.0, NVMe
• Cable Type: Shielded flexible cable
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Durability Rating: 15,000 locking cycles
• Minimum Bend Radius: 30mm

Applications

• Mission-Critical Computing: Applications in servers and workstations where connection security cannot be compromised.
• High-Performance Gaming Rigs: Custom builds requiring secure GPU mounting and optimal thermal management.
• Industrial Automation: Systems operating in high-vibration environments where connection stability is essential.
• Data Center Infrastructure: Server configurations demanding reliable and secure GPU accelerators.
• Test and Development: Laboratory environments requiring secure connections for accurate validation and testing.
• OEM Solutions: Custom manufacturing for clients needing specific, reliable expansion configurations.
• Compact Workstations: Space-constrained professional systems requiring upward GPU orientation and secure locking.
• Prototype Systems: Experimental configurations where both connection integrity and layout flexibility are needed.
