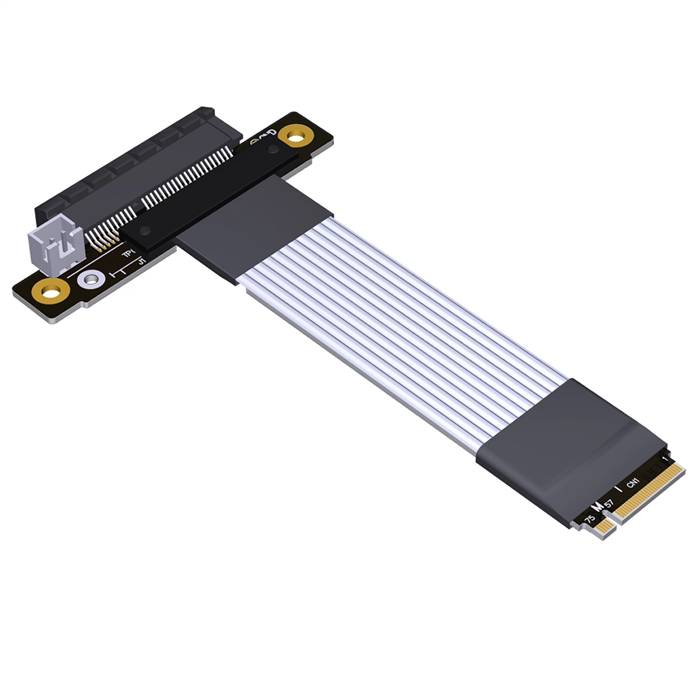

M.2 NVMe Male to PCIe 4.0 x4 Female Extension Cable, 85-ohm Low Impedance

The M.2 NVMe Male to PCIe 4.0 x4 Female Extension Cable is a specialized interface conversion solution engineered to connect M.2 NVMe slots directly to standard PCIe 4.0 x4 interfaces . This cable enables the use of M.2 NVMe storage and other M.2 PCIe devices with motherboard PCIe x4 slots, providing flexible expansion capabilities for systems where direct M.2 slot availability is limited or where physical re-routing of the storage device is necessary for thermal or spatial optimization . Supporting PCIe 4.0 specifications, it delivers a data transfer rate of up to 16 GT/s per lane (approximately 64 Gbps total bandwidth) while maintaining backward compatibility with PCIe 3.0 and 2.0 devices . The cable assembly is constructed with precision 85-ohm impedance-controlled wiring and multi-layer shielding to ensure reliable signal integrity and minimize electromagnetic interference at high frequencies . Its flexible flat cable design allows for easy routing in space-constrained environments, making it ideal for custom builds, embedded systems, and expansion projects where traditional adapter cards cannot be used .

Features

• Full x4 lane support: Maintains PCIe 4.0 x4 lane connectivity supporting data transfer rates up to 16 GT/s per lane for NVMe SSDs and other compatible devices
• 85-ohm impedance control: Precision-engineered differential impedance pathways optimized for PCIe 4.0 applications ensure signal integrity and timing accuracy
• Enhanced signal integrity: Utilizes low-loss dielectric materials and multi-layer EMI shielding to minimize insertion loss, crosstalk, and electromagnetic interference at high frequencies
• Interface conversion: Adapts M.2 NVMe male connector to standard PCIe x4 female slot for versatile expansion capabilities in systems with limited PCIe slot availability
• Flexible routing design: Thin and flexible flat cable construction allows for easy installation in confined spaces and complex chassis layouts
• Robust construction: Reinforced connectors with gold-plated contacts ensure reliable connectivity and long-term durability through multiple mating cycles
• Backward compatibility: Fully supports previous PCIe generations including 3.0 and 2.0 devices, providing broad system compatibility
• Plug-and-play installation: Requires no additional drivers or software configuration for immediate deployment and operation

Specifications

• Product Model: M.2 NVMe Male to PCIe 4.0 x4 Female Extension Cable
• Host Connector: M.2 NVMe, Male (Key M)
• Device Connector: PCIe 4.0 x4, Female, Standard Orientation
• Cable Type: Flexible Flat Cable Assembly
• Pinout Configuration: PCIe-compliant pin mapping
• Data Rate Support: Up to 16 GT/s (PCIe 4.0)
• Supported Protocols: PCI Express 4.0/3.0/2.0
• Impedance: 85 ohms differential (precision controlled for PCIe 4.0 requirements)
• Cable Length: 200mm, 250mm, 300mm standard options
• Wire Gauge: 30-31 AWG
• Shielding: Multi-layer foil and braid with comprehensive EMI protection
• Operating Temperature: -20°C to +80°C
• Durability: Minimum 300 insertion cycles
• Safety Standards: RoHS compliant

Applications

• System expansion: Adds PCIe x4 capability to systems with available M.2 NVMe slots but limited PCIe slot availability
• Embedded systems: Enables connection of specialized interface cards to industrial PCs and control systems with M.2 interfaces in space-constrained environments
• Prototyping and development: Facilitates testing and validation of PCIe x4 devices using M.2 NVMe slots in laboratory environments
• Storage solutions: Allows implementation of additional storage controllers and expansion cards through M.2 to PCIe conversion in compact systems
• Custom computing: Provides flexible expansion capabilities for custom computing solutions and specialized hardware configurations
• Test and measurement: Useful for hardware validation setups requiring interface conversion between M.2 NVMe and standard PCIe x4
• High-performance workstations: Ideal for gaming rigs and content creation systems where maximum PCIe 4.0 bandwidth is required for data-intensive applications
