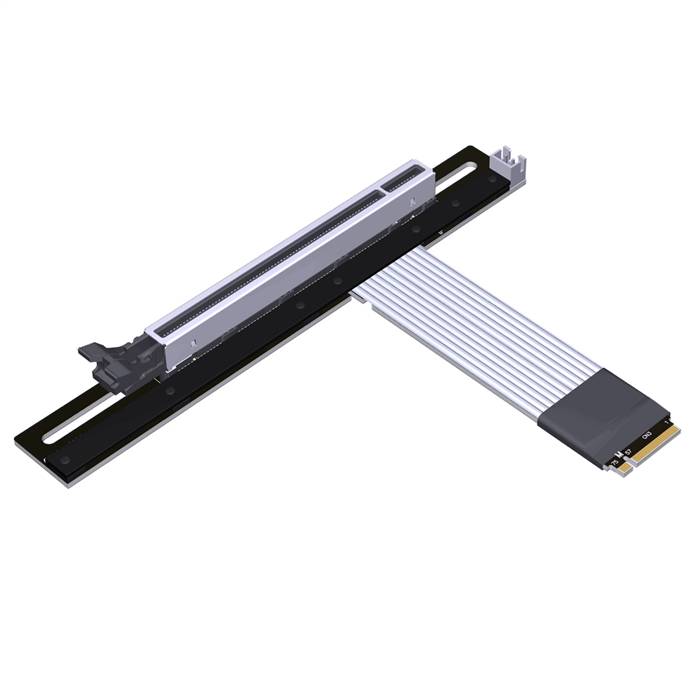

M.2 NVMe Male Turn 180 Degree to PCIe 4.0 x16 Female Up R/A Extension Cable, 85-ohm Low Impedance

The M.2 NVMe Male Turn 180 Degree to PCIe 4.0 x16 Female Up R/A Extension Cable is a specialized high-performance adapter designed for complex system integration requiring complete directional reversal with upward-facing GPU orientation. This innovative cable features a standard M.2 NVMe male connector with a 180-degree turn that connects to a PCIe 4.0 x16 female up right-angle slot. Engineered with precise 85-ohm impedance matching, this solution maintains excellent signal integrity at PCIe 4.0 data rates while providing a complete directional reversal for challenging spatial constraints. The combination of 180-degree turn and upward-facing PCIe slot enables sophisticated component placement in custom builds where traditional riser configurations cannot accommodate the mechanical requirements, particularly in systems optimized for superior thermal management.

Features

• 180-Degree Turn Configuration: Complete directional reversal for extreme spatial constraints
• Up Right-Angle PCIe Slot: 90-degree upward-facing PCIe x16 slot for optimal GPU orientation
• Standard M.2 Interface: Compatible with regular M.2 NVMe Key-M slots
• PCIe 4.0 Performance: Supports full x16 lane bandwidth at 16 GT/s data rates
• Precision Impedance Control: 85-ohm characteristic impedance ensures signal integrity
• High-Speed Optimization: Engineered for minimal signal degradation at PCIe 4.0 frequencies
• Thermal Management: Upward orientation facilitates improved airflow and cooling efficiency

Specifications

• Product Model: M.2 NVMe Male Turn 180 Degree to PCIe 4.0 x16 Female Up R/A Extension Cable
• Host Connector: M.2 Key-M Male with 180-degree turn
• Device Connector: PCIe 4.0 x16 Female Up Right-Angle
• Interface Support: PCIe 4.0 x16
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 256 Gbps total bandwidth)
• Supported Protocols: PCI Express 4.0, NVMe
• Characteristic Impedance: 85 ohms ±5%
• Turn Configuration: 180-degree directional change
• Cable Type: Shielded flexible cable
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Insertion Loss: Optimized for PCIe 4.0 signal integrity requirements
• Durability Rating: 3,000 mating cycles
• Minimum Bend Radius: 35mm

Applications

• Advanced Custom Builds: Computer modifications requiring 180-degree directional reversal with upward GPU installation
• Thermal-Optimized Systems: Configurations where upward GPU orientation provides superior cooling performance
• Compact Workstations: Professional systems with extreme space constraints requiring innovative connectivity solutions
• Prototype Development: Experimental computing configurations with severe spatial challenges
• OEM Manufacturing: Custom solutions for specific client integration requirements
• Test and Validation: Specialized testing scenarios requiring 180-degree turn with upward orientation
• High-Performance Gaming Rigs: Systems where optimal GPU positioning is critical for both performance and aesthetics
• Industrial Computing: Embedded systems with fixed component placement and unique routing requirements
