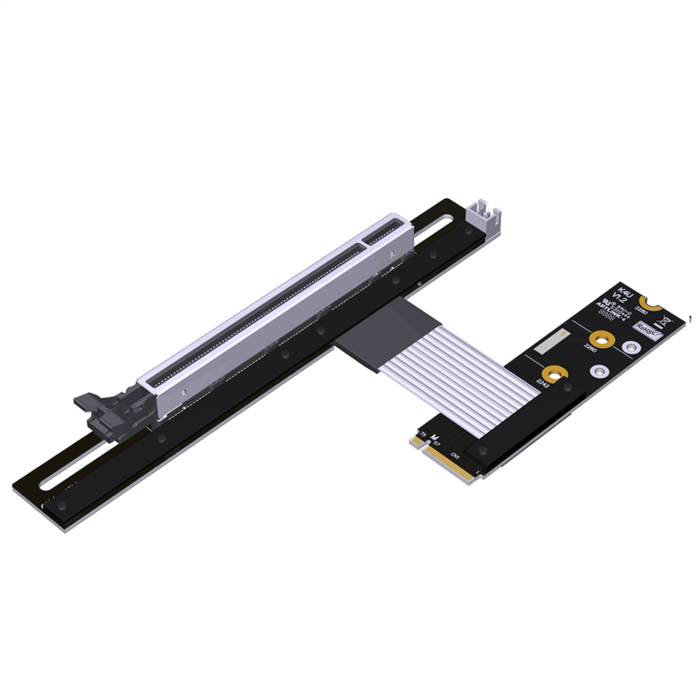

M.2 NVMe Male Right Bend to PCIe 4.0 x16 Female Up R/A Extension Cable, 85-ohm Low Impedance

The M.2 NVMe Male Right Bend to PCIe 4.0 x16 Female Up R/A Extension Cable is a specialized adapter solution designed for space-optimized system configurations requiring precise right-angle connectivity. This cable features a right-bend M.2 NVMe male connector combined with a PCIe 4.0 x16 female up right-angle slot, enabling unique GPU mounting scenarios in compact systems. Engineered with 85-ohm low impedance characteristics, this extension maintains excellent signal integrity at PCIe 4.0 data rates while providing mechanical flexibility for challenging installation environments. The upward-facing PCIe orientation and right-bend M.2 connector work together to solve complex spatial constraints in custom builds and specialized computing applications where optimal airflow and component placement are critical.

Features

• Right-Bend M.2 Connector: 90-degree right-oriented M.2 male connector for specific spatial requirements
• Up Right-Angle PCIe Slot: 90-degree upward-facing PCIe x16 slot for optimal GPU orientation
• PCIe 4.0 Performance: Supports full x16 lane bandwidth at 16 GT/s data rates
• Precision Impedance Control: 85-ohm characteristic impedance ensures signal integrity
• High-Speed Optimization: Engineered for minimal signal loss at PCIe 4.0 frequencies
• Space-Efficient Design: Solves clearance issues in compact system configurations
• Enhanced Cooling Compatibility: Upward orientation facilitates improved airflow management

Specifications

• Product Model: M.2 NVMe Male Right Bend to PCIe 4.0 x16 Female Up R/A Extension Cable
• Host Connector: M.2 Key-M Male with 90-degree Right Bend
• Device Connector: PCIe 4.0 x16 Female Up Right-Angle
• Interface Support: PCIe 4.0 x16
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 256 Gbps total bandwidth)
• Supported Protocols: PCI Express 4.0, NVMe
• Characteristic Impedance: 85 ohms ±5%
• Cable Type: Shielded flexible cable
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Insertion Loss: Optimized for PCIe 4.0 signal integrity requirements
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

Applications

• Small Form Factor Gaming PCs: High-performance graphics integration in compact cases
• Custom PC Builds: Unique system layouts requiring right-bend connectivity and upward GPU orientation
• Mining Rigs: Space-optimized multi-GPU configurations requiring specific connector orientation
• Test and Development: GPU validation in laboratory environments with upward-facing requirements
• Workstation Expansion: Professional graphics capability in space-constrained environments
• OEM Solutions: Custom system integration for specific client requirements
• Server Applications: Specialized server configurations requiring right-angle connectivity
• Prototype Systems: Experimental computing configurations with complex spatial constraints
