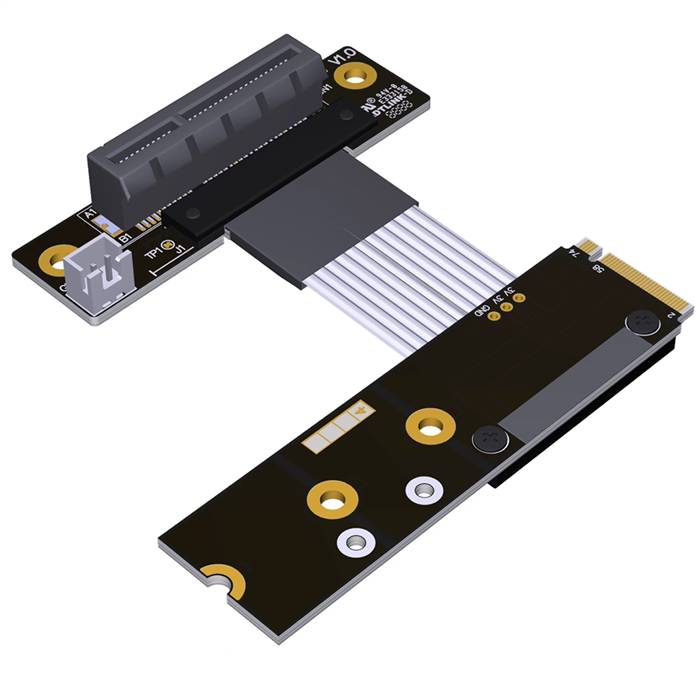

M.2 NVMe Male Right Bend to PCIe 4.0 x4 Female Down R/A Extension Cable, 85-ohm Low Impedance

The M.2 NVMe Male Right Bend to PCIe 4.0 x4 Female Down R/A Extension Cable is a specialized interface conversion solution engineered to connect M.2 NVMe slots to standard PCIe 4.0 x4 interfaces with a right-angled cable orientation, downward right-angle connector design, and precision 85-ohm impedance control. This cable enables the use of M.2 NVMe storage and other M.2 PCIe devices with motherboard PCIe x4 slots, providing flexible expansion capabilities for systems where direct M.2 slot availability is limited or where specific right-bend downward cable routing is required for space-optimized configurations. Supporting PCIe 4.0 specifications, it delivers a data transfer rate of up to 16 GT/s per lane while maintaining backward compatibility with PCIe 3.0 and 2.0 devices. The unique combination of right-bend cable design and downward right-angle (Down R/A) female connector directs the cable both rightward and downward from the motherboard plane, optimizing space utilization and improving clearance in complex chassis layouts and custom mounting scenarios, particularly beneficial in low-profile environments like 1U server racks or compact embedded systems. Constructed with 85-ohm impedance-controlled wiring and multi-layer shielding, this cable ensures reliable signal integrity and minimizes electromagnetic interference at high frequencies. Its flexible flat cable design allows for easy routing in space-constrained environments, making it ideal for custom builds, embedded systems, and expansion projects where traditional adapter cards cannot be used and combined right-bend downward cable orientation is essential for optimal chassis layout and thermal management.

Features

• Full x4 lane support: Maintains PCIe 4.0 x4 lane connectivity supporting data transfer rates up to 16 GT/s per lane for NVMe SSDs and other compatible devices
• Right-bend downward right-angle design: Combines right-angled cable orientation with downward right-angle connector for optimized clearance in low-profile chassis and specialized mounting configurations
• 85-ohm impedance control: Precision-engineered differential impedance pathways optimized for PCIe 4.0 applications ensure signal integrity and timing accuracy
• Enhanced signal integrity: Utilizes low-loss dielectric materials and multi-layer EMI shielding to minimize insertion loss, crosstalk, and electromagnetic interference at high frequencies
• Flexible routing design: Thin and flexible flat cable construction allows for easy installation in confined spaces and complex chassis layouts
• Robust construction: Reinforced connectors with gold-plated contacts ensure reliable connectivity and long-term durability through multiple mating cycles
• Backward compatibility: Fully supports previous PCIe generations including 3.0 and 2.0 devices, providing broad system compatibility
• Plug-and-play installation: Requires no additional drivers or software configuration for immediate deployment and operation

Specifications

• Product Model: M.2 NVMe Male Right Bend to PCIe 4.0 x4 Female Down R/A Extension Cable
• Host Connector: M.2 NVMe, Male (Key M)
• Device Connector: PCIe 4.0 x4, Female, Down Right-Angle
• Cable Type: Flexible Flat Cable Assembly with Right Bend
• Pinout Configuration: PCIe-compliant pin mapping
• Data Rate Support: Up to 16 GT/s (PCIe 4.0)
• Supported Protocols: PCI Express 4.0/3.0/2.0
• Impedance: 85 ohms differential (precision controlled for PCIe 4.0 requirements)
• Cable Length: 200mm, 250mm, 300mm standard options
• Wire Gauge: 30-31 AWG
• Shielding: Multi-layer foil and braid with comprehensive EMI protection
• Operating Temperature: -20°C to +80°C
• Durability: Minimum 100 insertion cycles
• Safety Standards: RoHS compliant

Applications

• System expansion: Adds PCIe x4 capability to systems with available M.2 NVMe slots but limited PCIe slot availability, particularly where combined right-bend downward cable routing is beneficial for low-profile configurations and specialized internal layouts
• Embedded systems: Enables connection of specialized interface cards to industrial PCs and control systems with M.2 interfaces in space-constrained environments requiring right-side downward cable routing
• Prototyping and development: Facilitates testing and validation of PCIe x4 devices using M.2 NVMe slots in laboratory environments requiring right-bend downward cable routing for specific testing configurations
• Storage solutions: Allows implementation of additional storage controllers and expansion cards through M.2 to PCIe conversion in compact systems where right-bend downward orientation improves overall layout
• Custom computing: Provides flexible expansion capabilities for custom computing solutions and specialized hardware configurations where combined right-bend downward cable orientation is essential for optimal chassis design and cable management in restricted spaces
• Test and measurement: Useful for hardware validation setups requiring interface conversion between M.2 NVMe and standard PCIe x4 with specific right-side downward orientation needs
• High-density servers: Ideal for 1U server racks and data center infrastructure where downward cable routing optimizes space utilization in limited vertical clearance environments
