PCIe 4.0 Mini PCIe Male to M.2 Key E WiFi Up R/A Extension Cable

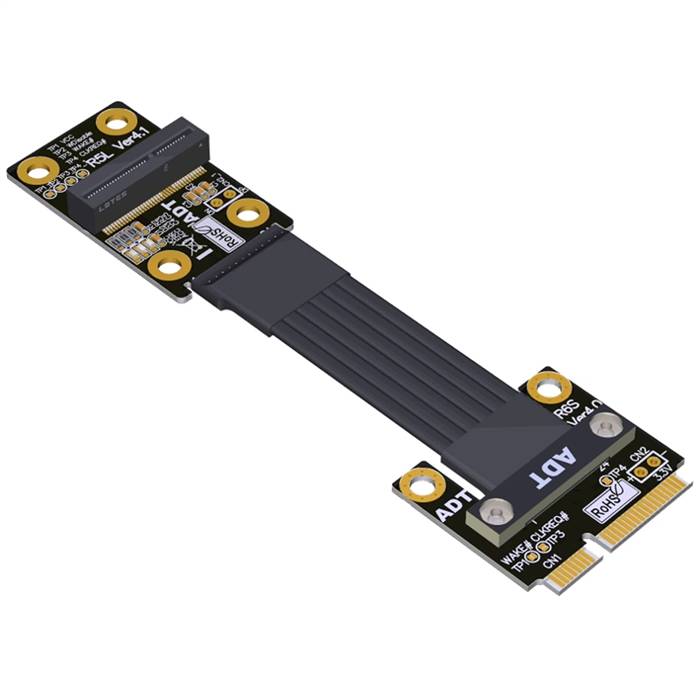

The PCIe 4.0 Mini PCIe Male to M.2 Key E WiFi Up R/A Extension Cable is a specialized connectivity solution designed to bridge legacy Mini PCIe interfaces with modern M.2 Key E WiFi modules while providing optimal cable management. This cable converts a Mini PCIe male connector to an M.2 Key E interface with an Up Right-Angle orientation, enabling the use of contemporary WiFi 6/6E and future wireless technologies in systems originally designed for Mini PCIe expansion. Engineered to maintain PCIe 4.0 signal integrity, this adapter cable provides a seamless upgrade path for older systems while offering superior space efficiency through its upward-angled connector design.

Features

• Interface Conversion Technology: Bridges Mini PCIe male interface to M.2 Key E female connector with full PCIe and USB signal compatibility
• Up Right-Angle Connector Design: M.2 Key E connector with upward orientation facilitates efficient cable routing and space optimization in compact systems
• PCIe 4.0 and USB Support: Maintains native PCIe 4.0 signaling for high-speed wireless modules while supporting USB 2.0 for companion interfaces
• Modern Wireless Compatibility: Enables integration of latest M.2 Key E WiFi 6, WiFi 6E, and WiFi 7 modules into systems with Mini PCIe expansion capabilities
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission for both PCIe and USB signals
• Secure Connection System: Positive-latch mechanism on M.2 connector ensures reliable mating and prevents accidental disconnection
• Space-Efficient Solution: Compact design and upward-angled connector optimize space utilization in various system configurations

Specifications

• Host Connector: Mini PCIe 52-pin Male
• Device Connector: M.2 Key E Female with Up Right-Angle orientation
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification, M.2 Specification
• Key Support: Key E (A+E key compatible)
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Supported Protocols: PCIe x1, USB 2.0, I2C, SDIO
• Cable Type: Shielded twisted pair with overall braid protection
• Cable Length: 100mm, 150mm, 200mm standard options
• Operating Temperature: -20°C to +80°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 5,000 mating cycles minimum

Applications

• Legacy System Modernization: Ideal for updating older industrial PCs, embedded systems, and legacy equipment with modern M.2 Key E wireless technology
• Compact Computing Devices: Perfect for small form factor systems, mini-PCs, and embedded platforms requiring modern WiFi in space-constrained environments
• Industrial IoT Solutions: Supports wireless connectivity upgrades for industrial automation, control systems, and IoT gateways with Mini PCIe expansion
• Digital Signage and Kiosk Systems: Enables modern wireless capabilities for commercial display systems and interactive kiosks with Mini PCIe interfaces
• Prototyping and Development: Essential for engineering teams developing products that require interface conversion between Mini PCIe and M.2 standards
• Test and Validation: Useful in laboratory environments for testing M.2 wireless modules on Mini PCIe-based test platforms and development systems
• Network Appliance Enhancement: Allows network devices and communications equipment with Mini PCIe slots to utilize latest M.2 WiFi technologies
• Custom Integration Projects: Provides flexible solutions for system integrators working with mixed-interface requirements and wireless connectivity upgrades
