PCIe 4.0 Mini PCIe Male to M.2 NVMe Key M SSD Extension Cable

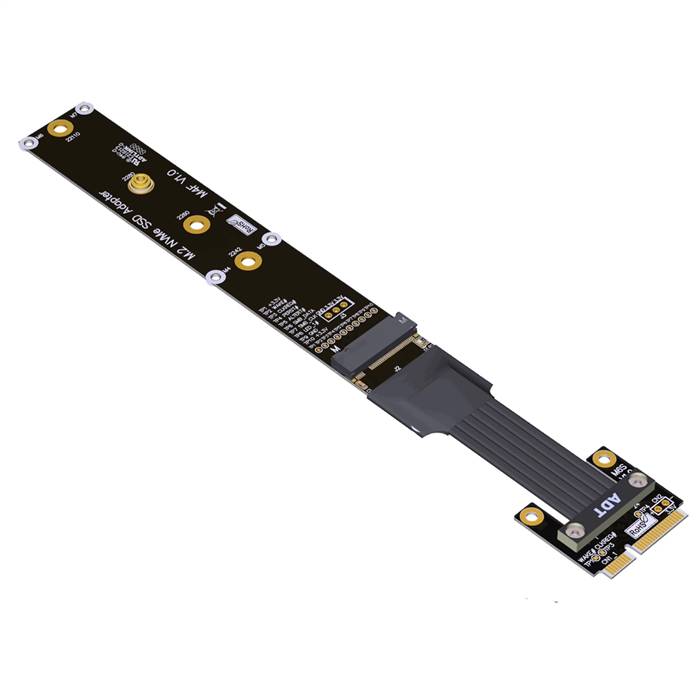

The PCIe 4.0 Mini PCIe Male to M.2 NVMe Key M SSD Extension Cable is a specialized high-performance connectivity solution designed to bridge legacy Mini PCIe interfaces with modern M.2 NVMe storage devices. This cable converts a Mini PCIe male connector to an M.2 Key M interface, enabling the use of high-speed NVMe solid-state drives in systems originally designed for Mini PCIe expansion. Engineered to maintain PCIe 4.0 signal integrity, this adapter cable provides a significant storage performance upgrade path for older systems while delivering the full bandwidth capabilities of modern NVMe technology through careful impedance matching and signal conditioning.

Features

• Advanced Interface Conversion: Bridges Mini PCIe male interface to M.2 Key M female connector with full PCIe 4.0 signal compatibility for NVMe SSDs
• High-Speed Storage Support: Enables integration of modern M.2 NVMe SSDs into legacy systems with Mini PCIe expansion capabilities
• PCIe 4.0 Performance: Maintains native PCIe 4.0 signaling supporting data rates up to 16 GT/s per lane for maximum storage performance
• Enhanced Signal Integrity: Precision engineering with controlled impedance ensures stable data transmission for high-speed NVMe storage operations
• NVMe Protocol Compatibility: Fully supports NVMe specification for optimal solid-state storage performance
• Secure Connection System: Robust mating interfaces with secure mounting ensure reliable operation for storage applications
• Storage Performance Upgrade: Provides significant storage performance improvement over traditional SATA-based solutions

Specifications

• Host Connector: Mini PCIe 52-pin Male
• Device Connector: M.2 Key M Female
• Supported Standard: PCI-SIG PCIe 4.0 Base Specification, NVMe Specification
• Key Support: Key M (M key compatible)
• Data Rate: 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 32 Gbps (x4 lanes for NVMe SSDs)
• Supported Protocols: NVMe 1.4 and later, PCIe 4.0 x4
• Supported SSD Lengths: 2230, 2242, 2260, 2280
• Cable Type: Shielded twisted pair with enhanced EMI protection
• Cable Length: 100mm, 150mm, 200mm standard options
• Operating Temperature: -20°C to +80°C
• Storage Temperature: -40°C to +85°C
• Durability Rating: 5,000 mating cycles minimum

Applications

• Legacy System Storage Upgrades: Ideal for updating older industrial PCs, embedded systems, and legacy equipment with high-speed NVMe storage
• Performance-Critical Embedded Systems: Perfect for embedded computing platforms requiring fast storage access while maintaining Mini PCIe interface compatibility
• Industrial Automation Storage: Supports high-performance storage requirements for industrial control systems and data acquisition equipment
• Compact Computing Solutions: Suitable for small form factor systems and space-constrained devices needing NVMe storage performance
• Digital Signage and Media Systems: Enables fast content loading and processing for commercial display systems and media players
• Prototyping and Development: Essential for engineering teams developing storage solutions that require interface conversion between Mini PCIe and M.2 NVMe standards
• Test and Validation Environments: Useful in laboratory settings for testing M.2 NVMe SSDs on Mini PCIe-based test platforms and development systems
• Custom Storage Integration: Provides flexible solutions for system integrators requiring high-performance storage in legacy interface environments
