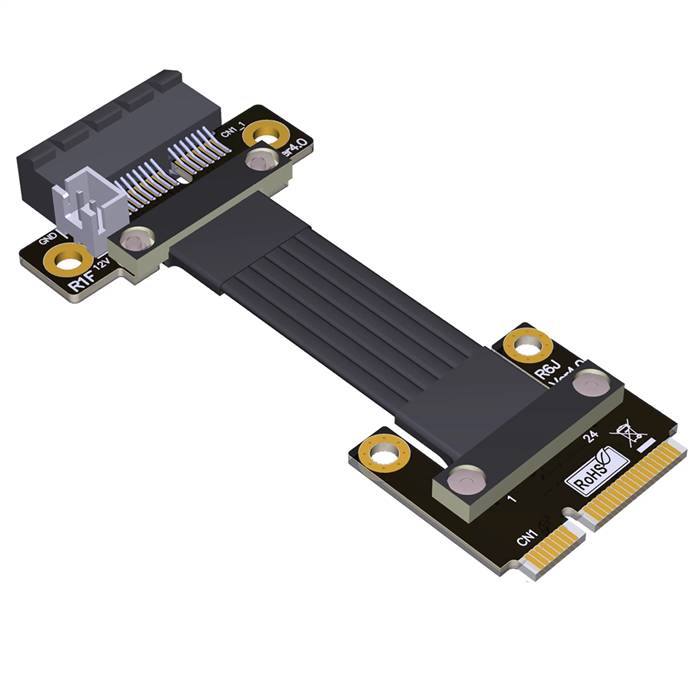

Mini PCIe Male to PCIe 4.0 x1 Female Extension Cable

The Mini PCIe Male to PCIe 4.0 x1 Female Extension Cable is a fundamental adapter solution that provides a direct and reliable bridge between a host's Mini PCIe slot and a standard PCIe 4.0 x1 add-in card. This cable delivers the high-speed performance of the PCIe 4.0 interface in a straightforward, flexible format, making it an indispensable tool for a wide array of computing applications. It is specifically engineered to enable the use of full-sized PCIe cards with platforms that only offer the compact Mini PCIe form factor, such as single-board computers, embedded systems, and various industrial motherboards. This solution is ideal for expanding system capabilities without requiring a traditional motherboard slot.

Features

• Direct Interface Conversion: Provides a simple adaptation from a standard straight Mini PCIe male connector to a full-size PCIe 4.0 x1 female slot.
• High-Speed Data Transfer: Fully compliant with the PCIe 4.0 specification, supporting data rates up to 8 GT/s per lane to ensure maximum performance for connected devices.
• Single-Lane Simplicity: Utilizes a single PCIe lane, which is the native configuration for most Mini PCIe slots, providing an efficient and compatible connection.
• Maintained Signal Integrity: Built with quality, controlled-impedance cabling and effective shielding to preserve signal quality and ensure stable data transmission at high speeds.
• Versatile Straight Connector: The straight Mini PCIe connector offers universal compatibility and easy installation in most system layouts where vertical clearance is available.
• Durable Build: Constructed with robust materials to ensure longevity and a secure connection for both temporary testing and permanent installations.

Specifications

• Host Connector: Mini PCIe (PCI Express Mini Card) 52-Pin, Male, Straight
• Target Connector: PCIe x1 Female Slot
• Supported Standard: PCI Express 4.0
• Data Rate: Up to 8 GT/s per lane
• Total Bandwidth: Approx. 16 Gbps (2 GB/s) bidirectional for x1 configuration
• Cable Length: Standard 15cm, 25cm, and 30cm options
• Impedance: 85? ±10% differential
• Shielding: Foil and braided shielding for EMI/RFI protection
• Operating Temperature: 0°C to +70°C
• Compatibility: Backward compatible with PCIe 3.0 and 2.0 devices.

Applications

• System Expansion: Enables the addition of various PCIe x1 cards like network interface cards, sound cards, serial port cards, or USB expansion cards to systems with Mini PCIe slots.
• Prototyping and Development: Serves as a crucial tool for hardware developers and engineers to test and validate PCIe 4.0 x1 devices using Mini PCIe-based host systems.
• Educational and DIY Projects: Perfect for students, makers, and hobbyists working with single-board computers or compact motherboards to integrate standard PCIe hardware.
• Industrial and Embedded Computing: Used in industrial automation, digital signage, and kiosks where the host system requires connectivity to specific PCIe peripherals via a Mini PCIe interface.
• Bench Testing and Troubleshooting: Provides a flexible connection for diagnostic work in repair shops or laboratory environments, allowing for easy swapping of test components.
