Mini PCIe Male to PCIe 4.0 x1 Female Down R/A Extension Cable

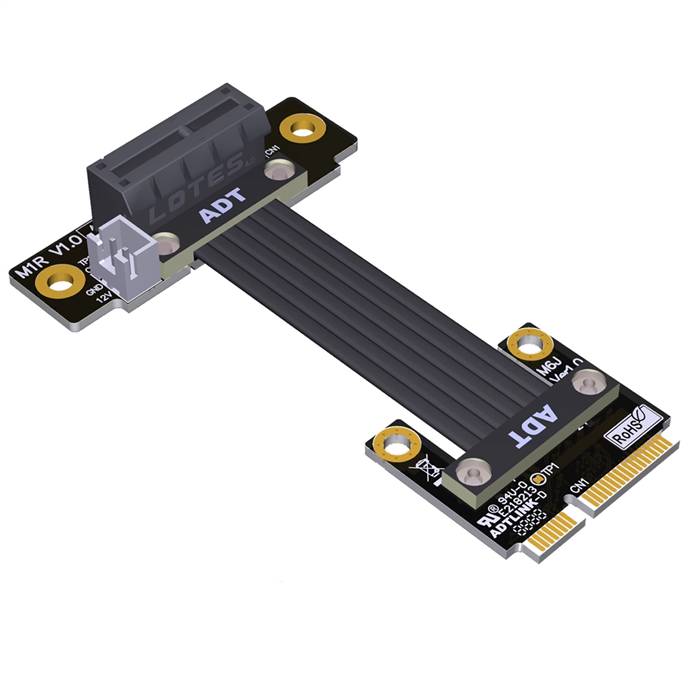

The Mini PCIe Male to PCIe 4.0 x1 Female Down Right-Angle Extension Cable is a specialized interconnect solution designed for space-constrained and high-performance computing applications. This cable efficiently bridges the gap between a host's Mini PCIe slot and a standard PCIe 4.0 x1 add-in card, providing a flexible and reliable extension path. The inclusion of a down right-angle connector on the host end is crucial for optimal cable routing in compact chassis, allowing the cable to lay flat and minimize airflow obstruction. It is an ideal tool for developers, system integrators, and enthusiasts needing to expand the connectivity of embedded systems, single-board computers, or small form factor PCs with a wide range of PCIe peripherals.

Features

• Targeted Interface Conversion: Adapts a standard Mini PCIe male host interface to a full-size PCIe 4.0 x1 female slot.
• Optimized Host Connector: Features a down right-angle Mini PCIe male connector for streamlined integration in tight spaces.
• PCIe 4.0 Performance: Fully supports the PCIe 4.0 specification, delivering data rates up to 8 GT/s per lane over a single lane.
• Enhanced Signal Integrity: Engineered with precise impedance control and quality shielding to preserve signal integrity at high speeds, ensuring stable operation.
• Space-Efficient Design: The right-angle host connector is ideal for high-density or low-clearance system designs, improving overall cable management.
• Secure and Durable: Robust connectors and quality cable construction ensure a reliable connection and long-term durability.
• Broad Compatibility: Backward compatible with previous generations of PCIe technology, including PCIe 3.0 and 2.0 devices.

Specifications

• Host Connector: Mini PCIe (PCI Express Mini Card) 52-Pin, Male, Down Right-Angle
• Target Connector: PCIe x1 Female Slot
• Supported Standard: PCI Express 4.0
• Data Rate: Up to 8 GT/s per lane
• Total Bandwidth: Approx. 16 Gbps (2 GB/s) bidirectional for x1 configuration
• Cable Length: Standard 15cm and 25cm options
• Impedance: 85? ±10% differential
• Shielding: Comprehensive foil and braid shielding for effective EMI/RFI suppression
• Operating Temperature: 0°C to +70°C
• Compatibility: Backward compatible with PCIe 3.0 and 2.0 devices.

Applications

• Compact System Integration: Essential for connecting PCIe cards in small form factor PCs, industrial embedded systems, and HTPCs where internal space is limited.
• Prototyping and Development: Provides a flexible interface for testing and validating PCIe 4.0 x1 devices like network cards, capture cards, or controllers using Mini PCIe-based platforms.
• Legacy System Enhancement: Enables the addition of modern PCIe 4.0 peripherals to older systems or specialized equipment that feature a Mini PCIe slot.
• Test and Measurement Setups: Useful in laboratory environments for creating flexible benchtop configurations for device debugging and performance analysis.
• Custom Electronics Projects: Facilitates unique DIY and maker projects that require interfacing standard PCIe hardware with compact computing boards.
