Reverse M.2 NVMe Male Turn 180 Degree to PCIe 4.0 x16 Female Extension Cable, 85-ohm Low Impedance

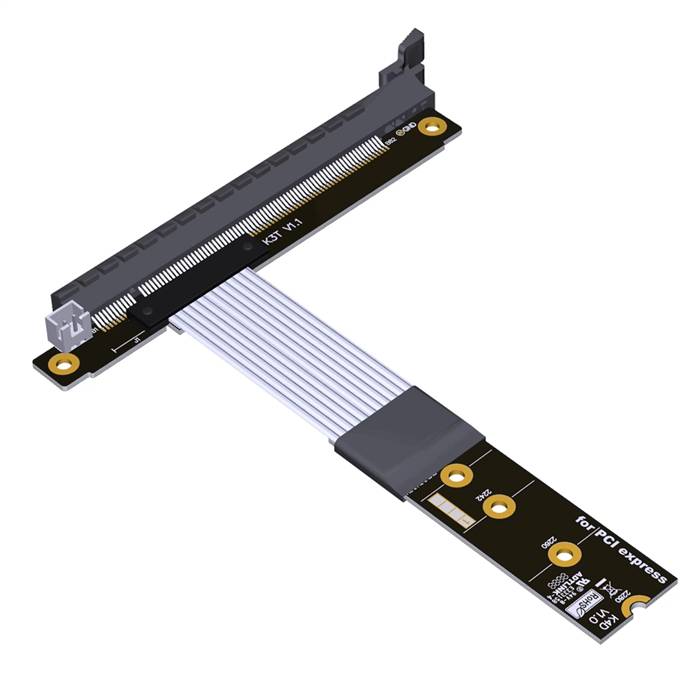

The Reverse M.2 NVMe Male Turn 180 Degree to PCIe 4.0 x16 Female Extension Cable is an advanced adapter solution engineered for extreme system integration challenges requiring complete directional reversal. This sophisticated cable incorporates a reverse-oriented M.2 NVMe male connector with a full 180-degree directional turn that terminates in a standard PCIe 4.0 x16 female slot. Precision-engineered with 85-ohm low impedance characteristics, this solution maintains exceptional signal integrity at PCIe 4.0 data rates while providing unprecedented directional reversal capability. The combination of reverse M.2 orientation and 180-degree turn enables complex component placement in demanding custom builds, specialized servers, and compact systems where traditional connectivity solutions cannot address severe spatial constraints.

Features

• Reverse M.2 Connector: Specialized reverse male orientation for unique motherboard layouts
• Complete 180-Degree Turn: Full directional reversal for extreme spatial constraints
• Standard PCIe 4.0 x16 Interface: Compatible with all PCIe 4.0 graphics cards and expansion devices
• Precision 85-Ohm Impedance: Optimized signal integrity for high-speed data transmission
• PCIe 4.0 Performance: Full x16 lane support at 16 GT/s data rates
• Advanced Mechanical Design: Solves complex clearance and routing challenges
• High-Frequency Optimization: Engineered for reliable operation at PCIe 4.0 specifications

Specifications

• Product Model: Reverse M.2 NVMe Male Turn 180 Degree to PCIe 4.0 x16 Female Extension Cable
• Host Connector: M.2 Key-M Male Reverse Orientation with 180-degree turn
• Device Connector: PCIe 4.0 x16 Female
• Interface Support: PCIe 4.0 x16
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 256 Gbps total bandwidth)
• Supported Protocols: PCI Express 4.0, NVMe
• Characteristic Impedance: 85 ohms ±5%
• Directional Configuration: 180-degree turn
• Cable Type: Shielded flexible cable assembly
• Cable Length: 20cm, 30cm, 40cm
• Operating Temperature: 0°C to +70°C
• Insertion Loss: Less than -2.2dB at 8GHz
• Return Loss: Better than -14dB at 8GHz
• Durability Rating: 3,000 mating cycles
• Minimum Bend Radius: 35mm

Applications

• Extreme Custom Builds: Computer modifications requiring complete directional reversal for expansion cards
• Specialized Server Configurations: Unique data center setups with specific spatial limitations
• Compact Workstation Solutions: Professional systems with extreme space constraints requiring innovative connectivity
• Advanced Prototype Development: Experimental computing configurations with severe spatial challenges
• OEM Manufacturing: Custom solutions for specific client integration requirements
• Testing and Validation: Specialized testing scenarios requiring 180-degree connector orientation
• High-Density Computing: Applications where maximum component density demands innovative connectivity solutions
• Industrial Systems: Embedded computing with fixed component placement and complex routing requirements
